FOOTRESTS

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

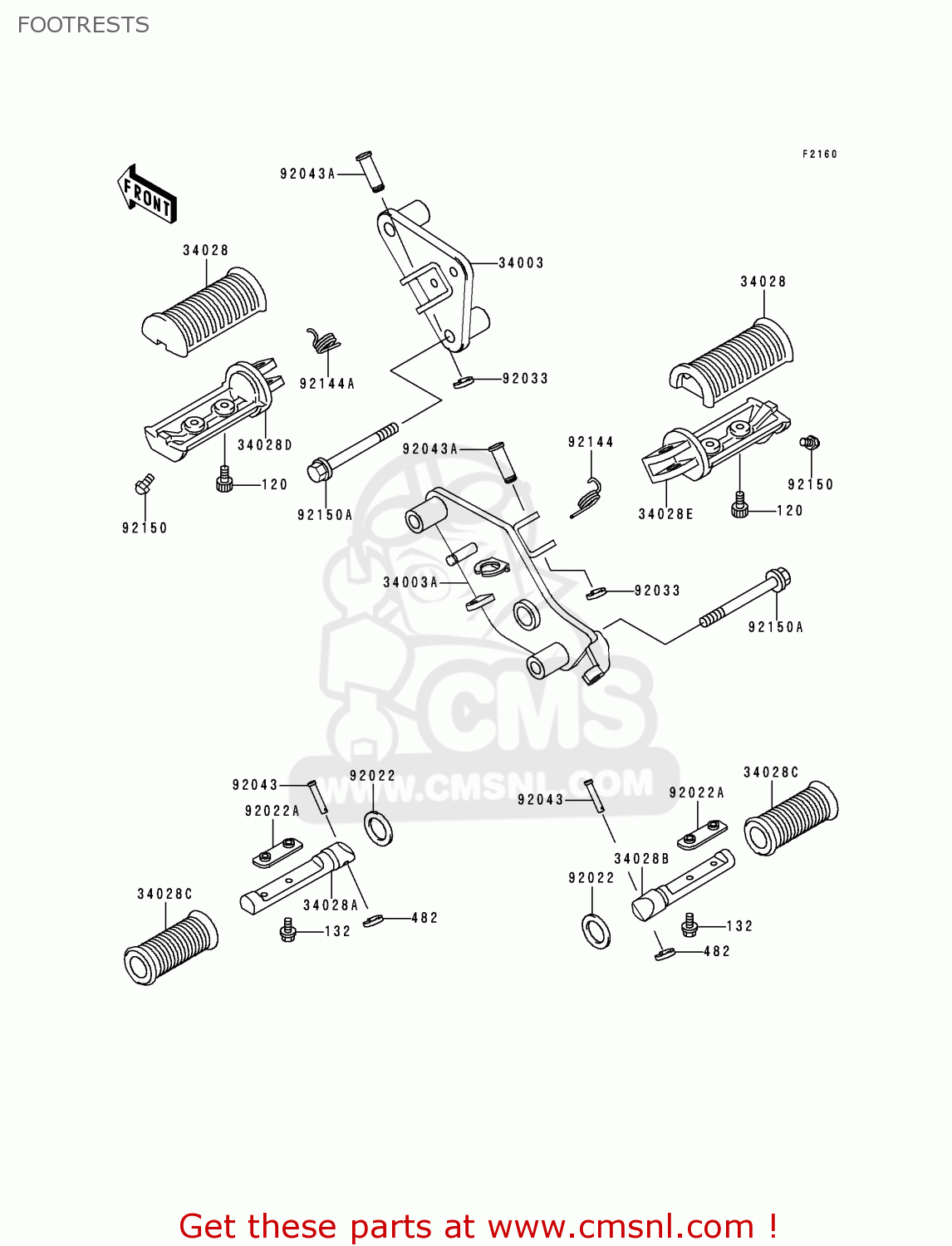

Footrests diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

FOOTRESTS VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
FOOTRESTS VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
FOOTRESTS VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
132
132J0510
ref: 132
BOLT-FLANGED-SMALL
132J0510
€ 2.00
482
482L7000
ref: 482
CIRCLIP-TYPE-E
482L7000
€ 2.50
34003
340031413
ref: 34003
HOLDER-STEP,FR,LH
340031413
€ 52.00
34003A
340031414
ref: 34003A
HOLDER-STEP,FR,RH
340031414
€ 65.50
34028
340281217
ref: 34028
STEP,FR,RUBBER
340281217
€ 24.00
34028A
340281219
ref: 34028A
STEP,RR,LH
340281219
€ 78.00
34028B
340281220
ref: 34028B
STEP,RR,RH
340281220
€ 84.00
34028C
340281221
ref: 34028C
STEP,RR,RUBBER
340281221
€ 10.00
34028D
340281407
ref: 34028D
STEP,FR,LH
340281407
€ 63.00
34028E
340281408
ref: 34028E
STEP,FR,RH
340281408
€ 76.50
92022
920221568
ref: 92022
WASHER,20X30X2.3
920221568
€ 2.50
92022A
920221874
ref: 92022A
WASHER,STEP
920221874
€ 4.00
92033
920331166
ref: 92033
RING-SNAP,10MM
920331166
€ 2.50
92043
920431339
ref: 92043
PIN
920431339
€ 5.00
92043A
920431358
ref: 92043A
PIN,12X37
920431358
€ 5.50
92144
921441126
ref: 92144
SPRING,STEP RETURN
921441126
€ 4.00
92144A
921441210
ref: 92144A
SPRING,STEP RETURN
921441210
€ 3.50
92150
921501114
ref: 92150
BOLT,BANK SENSOR
921501114
€ 7.50
92150A
921501897
ref: 92150A
BOLT,FLANGED,10X55
921501897
€ 7.50
