Genuine VN Kawasaki Parts delivered quickly!


FRONT MASTER CYLINDER

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

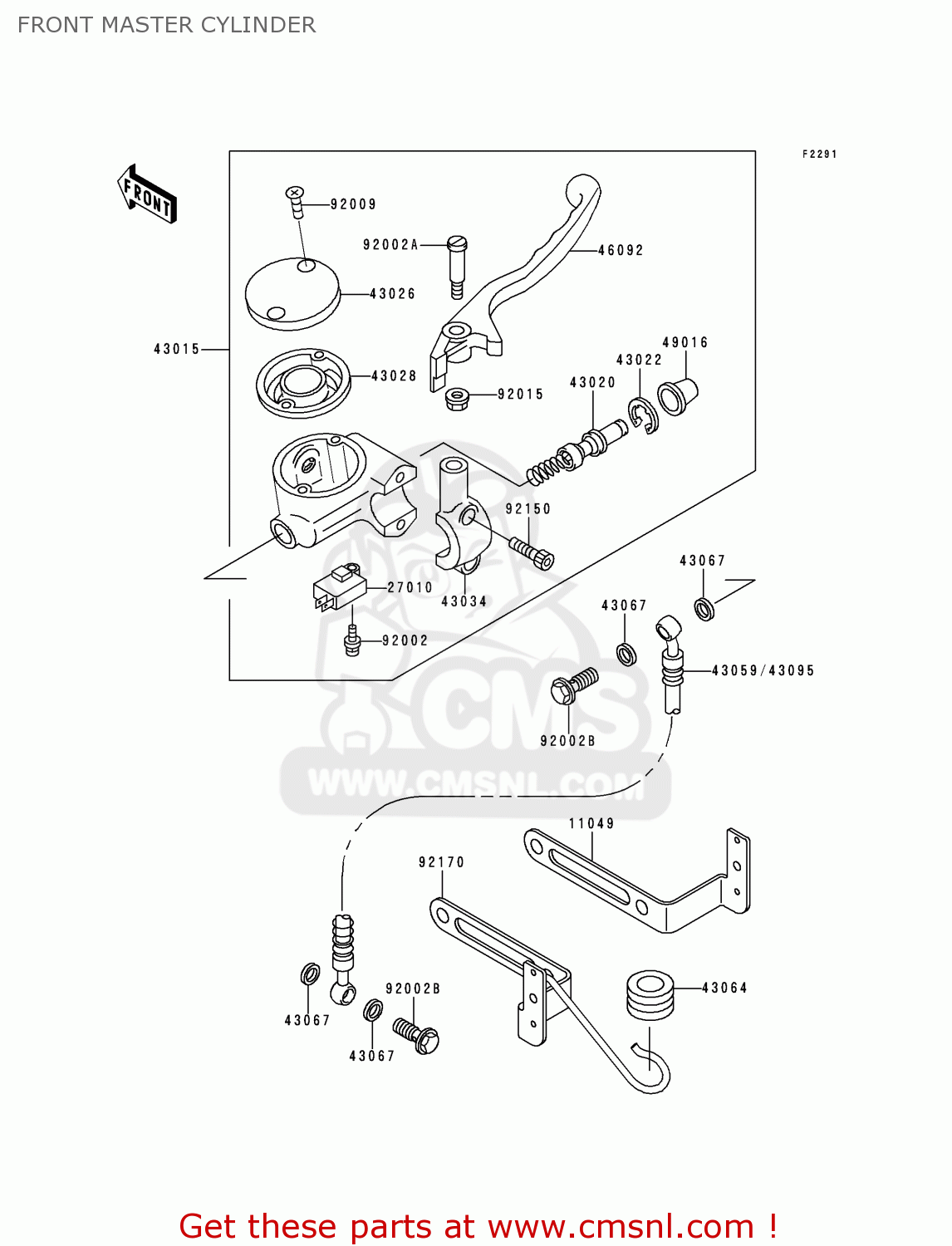

Front master cylinder diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

FRONT MASTER CYLINDER VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11049
110491820
ref: 11049
BRACKET
€ 8.00
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015
430151511
ref: 43015
CYLINDER-ASSY-MASTER,
€ 384.50
43020
430201098
ref: 43020
PISTON-COMP-BRAKE
430201098
€ 38.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430261078
ref: 43026
CAP-BRAKE
430261078
€ 43.50
43028
430281071
ref: 43028
DIAPHRAGM,MASTER CYLI
430281071
€ 15.50
43034
430341102
ref: 43034
HOLDER-BRAKE
430341102
€ 54.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43095
430951116
ref: 43095
HOSE-BRAKE,FR
€ 96.50
46092
460921172
ref: 46092
LEVER-GRIP,FRONT BRAK
460921172
€ 18.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021323
ref: 92002
BOLT
920021323
€ 2.50
92002A
920021561
ref: 92002A
BOLT,LEVER SET
920021561
€ 8.00
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091440
ref: 92009
SCREW
920091440
€ 2.50
92015
920151528
ref: 92015
NUT,FLANGED,6MM
920151528
€ 3.50
92150
921501025
ref: 92150
BOLT,SOCKET,6MM
921501025
€ 4.50
92170
921701651
ref: 92170
CLAMP,HOSE
€ 13.00
