CLUTCH

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

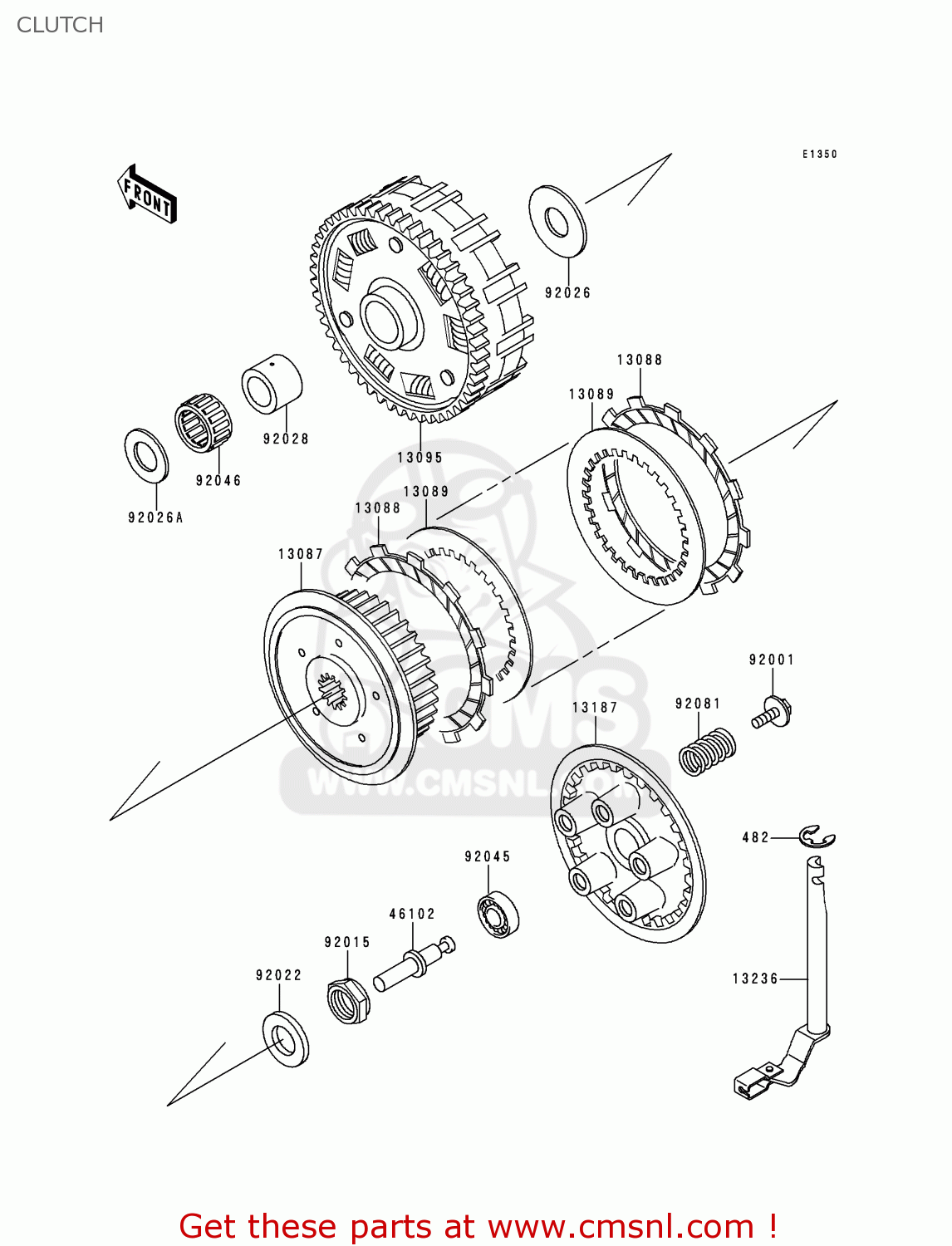

Clutch diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

CLUTCH VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
CLUTCH VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
CLUTCH VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
482J0100
€ 0.50
13087
13087042
ref: 13087
HUB,CLUTCH
13087042
€ 133.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
130881051
€ 14.00
13089
13089027
ref: 13089
PLATE,CLUTCH STEEL (NAS)
13089027
€ 7.50
13095
130951307
ref: 13095
HOUSING-COMP-CLUTCH
130951307
€ 424.50
13187
131871006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871006
€ 58.00
13236
132361269
ref: 13236
LEVER-COMP,CLUTCH REL
132361269
€ 26.50
46102
461021374
ref: 46102
ROD,PULL
461021374
€ 13.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
920011066
€ 4.00
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221868
ref: 92022
WASHER
920221868
€ 6.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
92026022
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
92026116
€ 12.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
92028178
€ 17.00
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
920451235
€ 15.50
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
92046028
€ 20.50
92081
920811864
ref: 92081
SPRING,CLUTCH
920811864
€ 5.00
