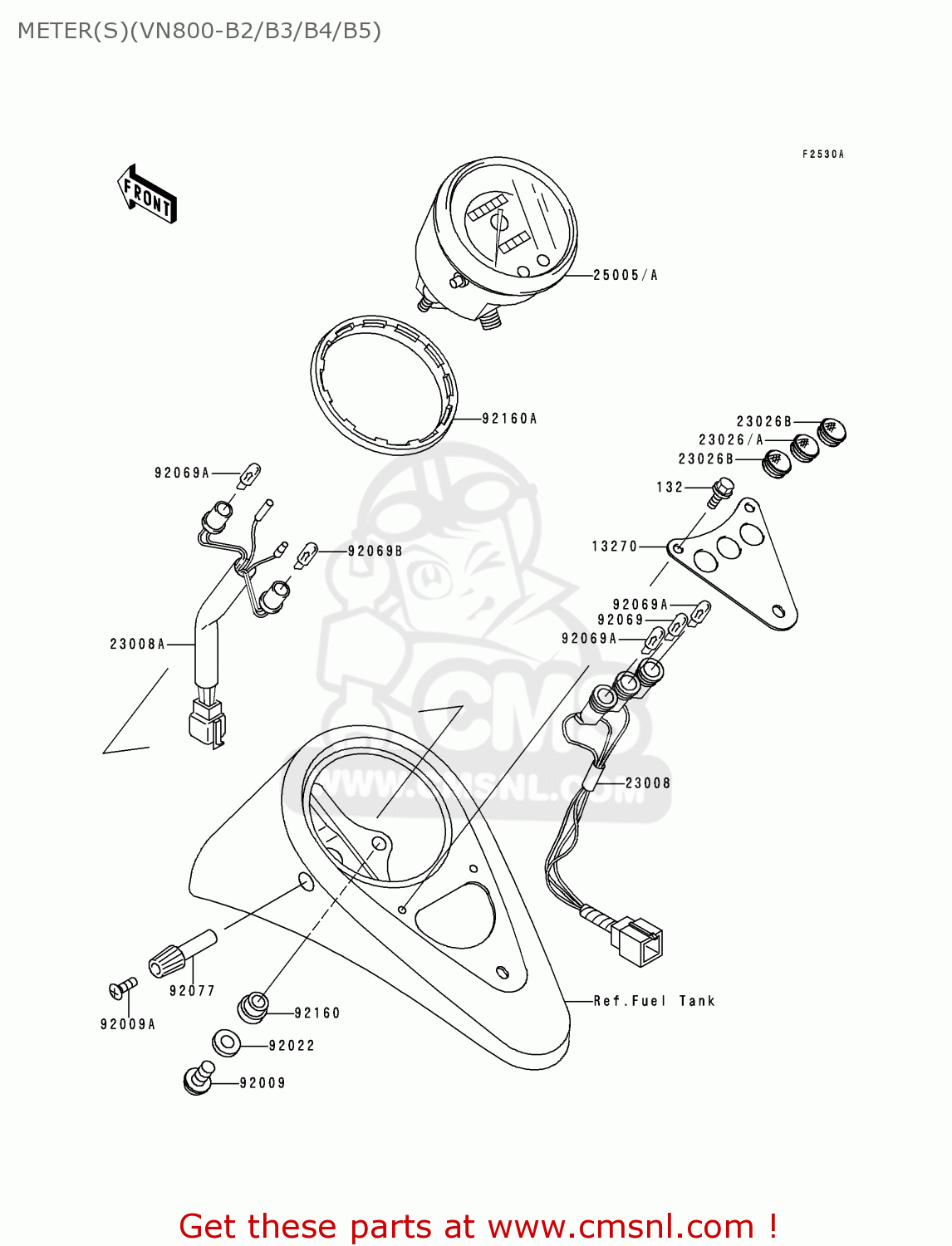

METER(S)(VN800-B2/B3/B4/B5)

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

Meter(s)(vn800-b2/b3/b4/b5) diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132E0612
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

13270

132701637
ref: 13270

PLATE,PILOT LAMP

€ 26.50

23008

230081546
ref: 23008

SOCKET-ASSY,PILOT LAM

€ 26.00

23008A

230081575
ref: 23008A

SOCKET-ASSY,SPEEDOMET

€ 60.50

23026A

230261171
ref: 23026A

LENS,GREEN

€ 5.00

23026B

230261173
ref: 23026B

LENS,RED

€ 5.50

25005

250051616
ref: 25005
CAUS

SPEEDOMETER,MPH

€ 424.50

25005A

250051617
ref: 25005A
CN

SPEEDOMETER,KPH

€ 424.50

92009

920091690
ref: 92009

SCREW,4X6

€ 2.50

92009A

920091799
ref: 92009A

SCREW,3X8

€ 2.50

92022

920221949
ref: 92022

WASHER,4.3X12.5X1

€ 2.00

92069

920691007
ref: 92069

BULB,12V3.4W

€ 2.50

92069A

920691059
ref: 92069A

BULB,12V 1.7W

€ 2.50

92069B

920691068
ref: 92069B

BULB,14V 3W

€ 2.50

92077

920771117
ref: 92077

KNOB,TRIP

€ 22.00

92160

921601068
ref: 92160

DAMPER

€ 4.50

92160A

921601380
ref: 92160A

DAMPER,SHOCK,METER

€ 5.50
