GENERATOR

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

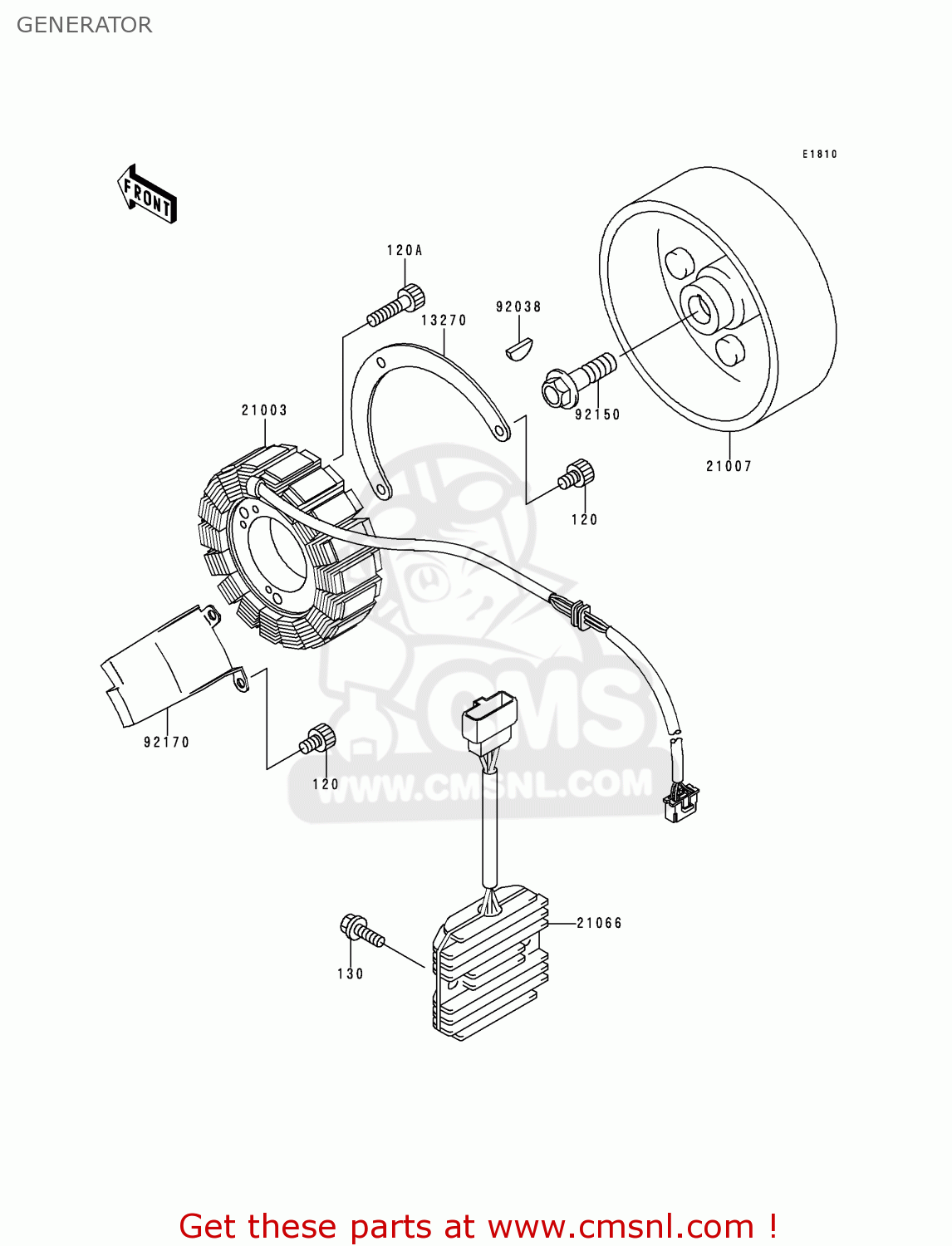

Generator diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0510
ref: 120

BOLT-SOCKET

€ 2.00

120A

120P0635
ref: 120A

BOLT,SOCKET,6X35

€ 1.50

130

130J0620
ref: 130

BOLT-FLANGED,6X20

€ 2.50

13270

132701398
ref: 13270

PLATE

€ 5.00

21003

210031280
ref: 21003

STATOR

€ 582.50

21007

210071279
ref: 21007

ROTOR,GENERATOR

€ 248.50

21066

210661099
ref: 21066

REGULATOR-VOLTAGE

€ 185.50

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

92150

921501717
ref: 92150

BOLT,12X40

€ 7.50

92170

921701559
ref: 92170

CLAMP

€ 3.50
