HEADLIGHT
VN700A1 LTD 1985 USA CALIFORNIA

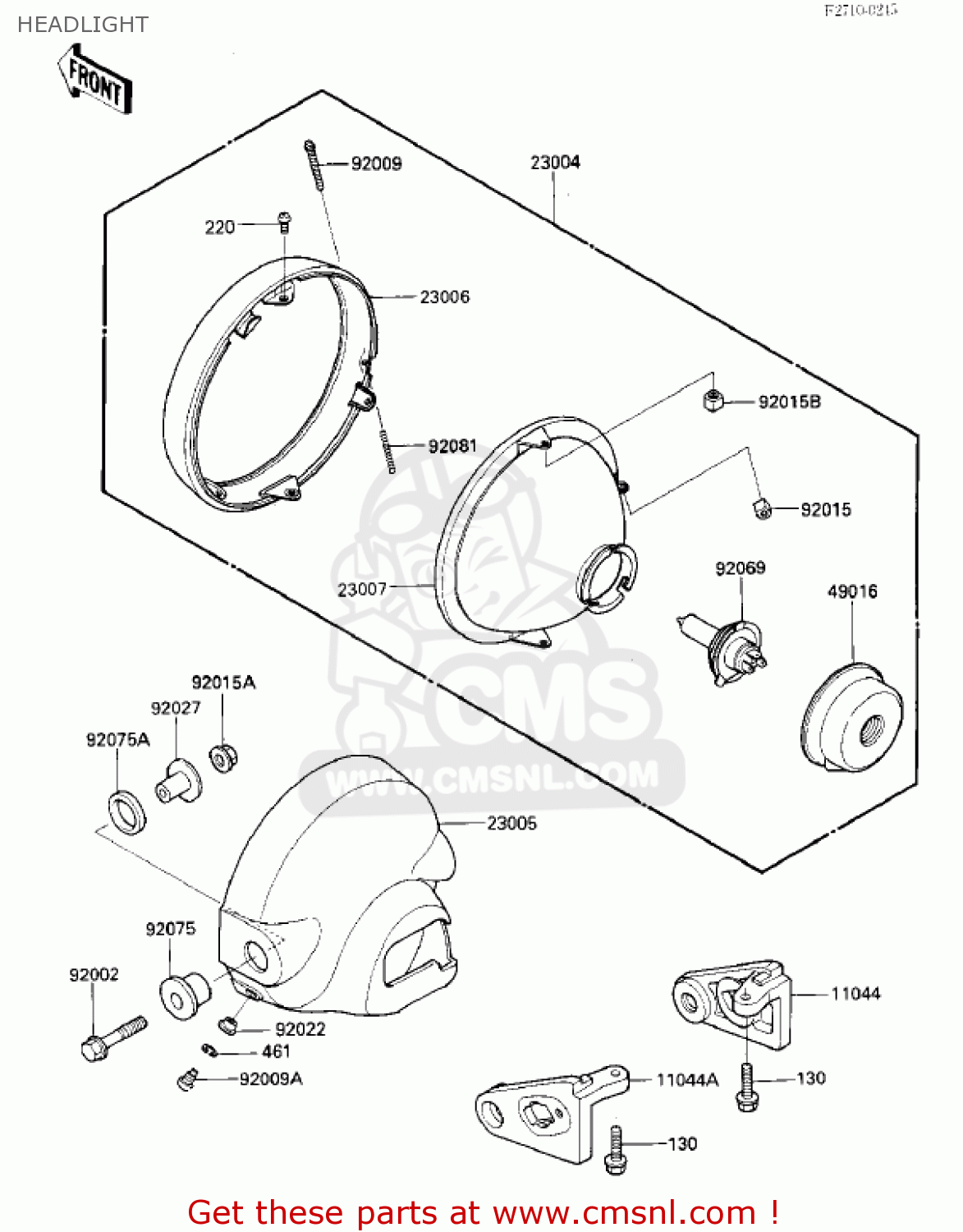

Headlight diagram VN700A1 LTD 1985 USA CALIFORNIA
HEADLIGHT VN700A1 LTD 1985 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11044
110431941
ref: 11044
BRACKET,HEAD LAMP,RH
€ 44.00
11044A
110431942
ref: 11044A
BRACKET,HEAD LAMP,LH
€ 44.00
23004
230041171
ref: 23004
LAMP-HEAD
€ 515.50
23005
230051058
ref: 23005
BODY-COMP-HEAD LAMP,C
€ 72.50
23006
230061055
ref: 23006
RIM-LAMP
€ 55.00
23007
230071115
ref: 23007
LENS-COMP
€ 124.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92002
132E0840
ref: 92002
BOLT-FLANGED-SMALL
€ 4.00
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
92011024
ref: 92009A
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92022
23021010
ref: 92022
WASHER
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
€ 3.00
130
130N0825
ref: 130
BOLT-FLANGED
€ 3.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
