FRONT BEVEL GEARS
VN700A1 LTD 1985 USA CALIFORNIA

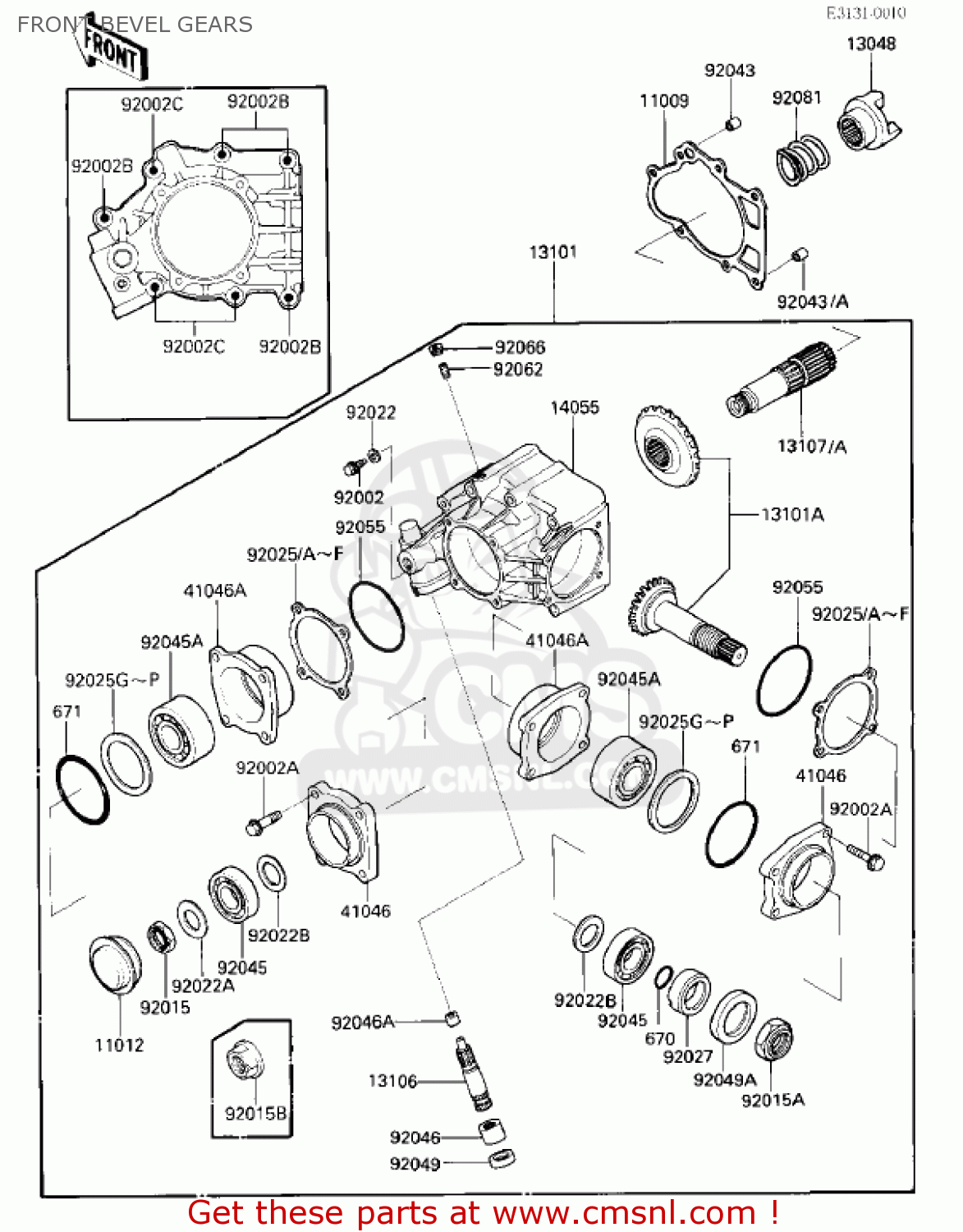

Front bevel gears diagram VN700A1 LTD 1985 USA CALIFORNIA
FRONT BEVEL GEARS VN700A1 LTD 1985 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11009
110601086
ref: 11009
GASKET,GEAR CASE (NAS)
€ 13.50
11012
110121715
ref: 11012
CAP,FRONT BEVEL
€ 28.50
13048
130481058
ref: 13048
CAM-DAMPER
€ 73.00
13101
131011058
ref: 13101
BEVEL GEAR ASSEMBLY,FRONT
€ 931.50
13101A
131015048
ref: 13101A
GEAR-ASSY,BEVEL,FR
€ 656.00
13106
131061068
ref: 13106
SHAFT-CLUTCH RELEASE
€ 29.50
13107
131071128
ref: 13107
BEVEL GEAR SHAFT,FRONT
€ 70.00
13107A
131071166
ref: 13107A
SHAFT,BEVEL GEAR,FR
€ 105.00
14055
140551054
ref: 14055
BEVEL GEARCASE,FRONT
€ 307.50
41046
410461061
ref: 41046
BEVEL BEARING HOUSING
€ 56.00
41046A
410461070
ref: 41046A
BEVEL BEARING HOUSING
€ 56.00
92002
920021356
ref: 92002
BOLT
€ 4.00
92002A
920021574
ref: 92002A
BOLT,6X30
€ 1.50
92002B
920021579
ref: 92002B
BOLT
€ 2.50
92002C
920021580
ref: 92002C
BOLT
€ 4.00
92015
920151065
ref: 92015
NUT,20MM
€ 6.00
92015A
920151480
ref: 92015A
NUT,25MM
€ 13.00
92015B
920151543
ref: 92015B
NUT
€ 12.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221116
ref: 92022A
WASHER,20.3X36X2.3
€ 5.50
92022B
920221719
ref: 92022B
WASHER
€ 9.00
92025
920251258
ref: 92025
SHIM,T=0.10
€ 7.50
92025A
920251259
ref: 92025A
SHIM,T=0.15
€ 8.00
92025B
920251260
ref: 92025B
SHIM,T=0.20
€ 7.00
92025C
920251261
ref: 92025C
SHIM,T=0.30
€ 6.50
92025D
920251262
ref: 92025D
SHIM,T=0.60
€ 7.00
92025E
920251263
ref: 92025E
SHIM,T=0,90
€ 6.50
92025F
920251264
ref: 92025F
SHIM,T=1.20
€ 8.00
92025G
920251668
ref: 92025G
SHIM,52.5X61.5X0.12
€ 6.50
92025H
920251669
ref: 92025H
SHIM,52.5X61.5X0.15
€ 7.50
92025I
920251670
ref: 92025I
SHIM,52.5X61.5X0.18
€ 7.50
92025J
920251671
ref: 92025J
SHIM,52.5X61.5X0.8
€ 7.50
92025K
920251672
ref: 92025K
SHIM,52.5X61.5X0.9
€ 7.00
92025L
920251673
ref: 92025L
SHIM,52.5X61.5X1.0
€ 7.50
92025M
920251674
ref: 92025M
SHIM,52.5X61.5X1.1
€ 8.50
92025N
920251675
ref: 92025N
SHIM,52.5X61.5X1.2
€ 9.50
92025O
920251676
ref: 92025O
SHIM,52.5X61.5X1.3
€ 9.50
92025P
920251677
ref: 92025P
SHIM,52.5X61.5X1.4
€ 9.50
92027
920271843
ref: 92027
COLLAR
€ 23.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451115
ref: 92045
BEARING-BALL,6205
€ 23.00
92045A
920451147
ref: 92045A
BEARING-BALL,5305SH2C
€ 94.50
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
€ 17.00
92046A
920461142
ref: 92046A
BEARING-NEEDLE,HK0709
€ 15.00
92049
920491037
ref: 92049
OIL SEAL,TC14244.8
€ 6.50
92049A
920491038
ref: 92049A
OIL SEAL,TC35527
€ 12.50
92055
920551306
ref: 92055
RING-O
€ 7.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92066
920661221
ref: 92066
PLUG,PT1/8X7
€ 3.50
92081
920811552
ref: 92081
SPRING
€ 25.50
670
670B2021
ref: 670
O RING,21MM
€ 3.00
671
671B2565
ref: 671
O RING,65MM
€ 6.00
