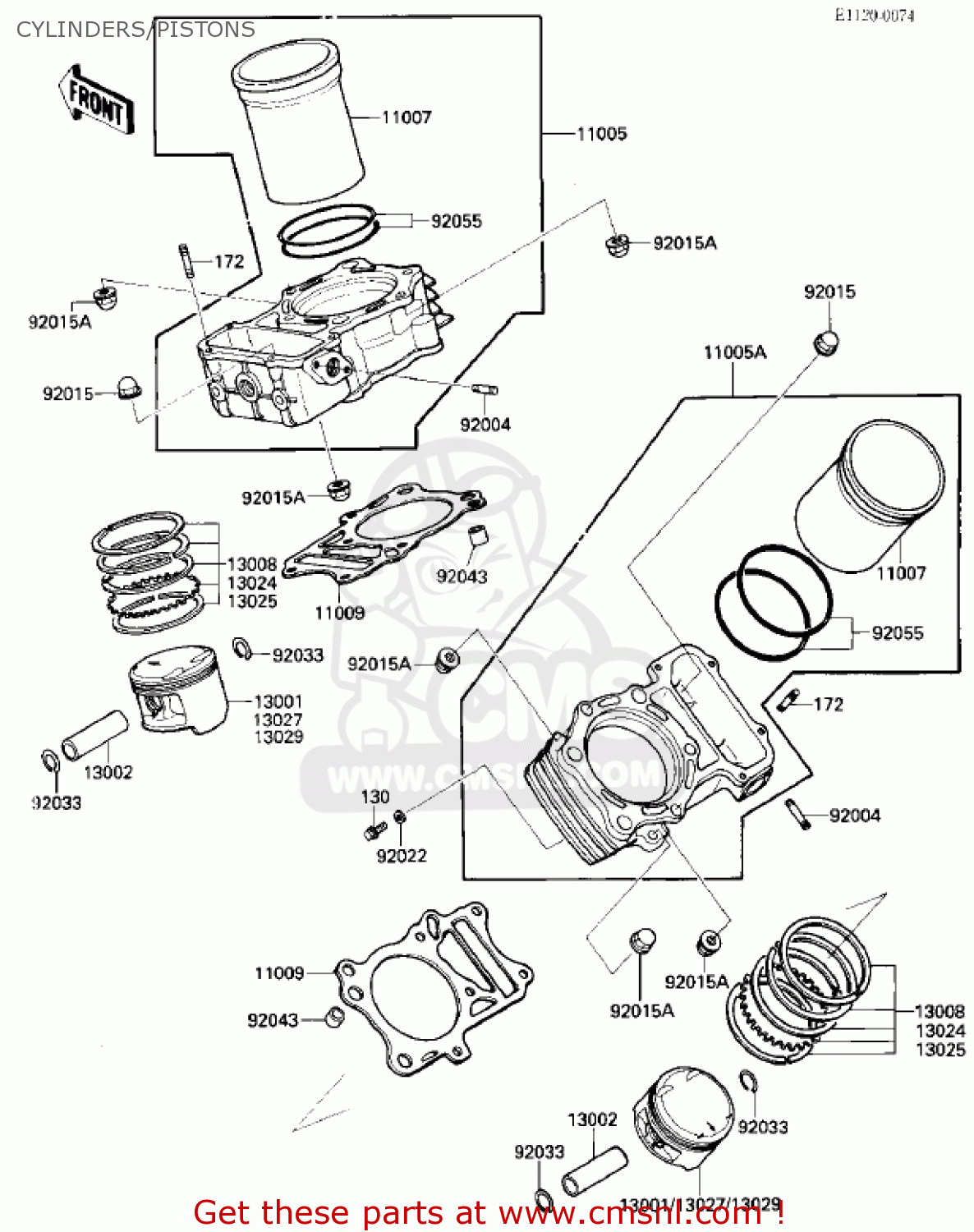

CYLINDERS/PISTONS

ref

part #

description

quantity

11005

110051456
ref: 11005

ENGINE CYLINDER,FRONT

€ 384.00

11005A

110051458
ref: 11005A

ENGINE CYLINDER,REAR

€ 384.00

11007

110071072
ref: 11007

CYLINDER LINER

€ 66.50

11009

110601084
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 9.00

13001

130011214
ref: 13001

PISTON-ENGINE,STD

€ 61.50

13002

130021056
ref: 13002

PIN-PISTON

€ 20.50

13008

130081061
ref: 13008

RING-SET-PISTON,STD

€ 51.50

13024

130241061
ref: 13024

PISTON RING SET,LL,O/S

€ 46.50

13025

130251061
ref: 13025

RING-SET-PISTON L,O/S

€ 66.00

13027

130271127
ref: 13027

ENGINE PISTON,LL,O/S

€ 55.00

13029

130291127
ref: 13029

PISTON-ENGINE L,O/S,0

€ 72.50

92004

920041154
ref: 92004

STUD,6X18

€ 3.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151174
ref: 92015A

NUT,CAP,8MM,BLACK

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92033

920331188
ref: 92033

RING-SNAP

€ 2.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92055

920551273
ref: 92055

O-RING,90MM

€ 6.50

130

130W0610
ref: 130

BOLT-FLANGED

€ 2.50

172

172G0620
ref: 172

STUD,6X20

€ 1.00
