CARBURETOR ASSY
VN700A1 LTD 1985 USA CALIFORNIA

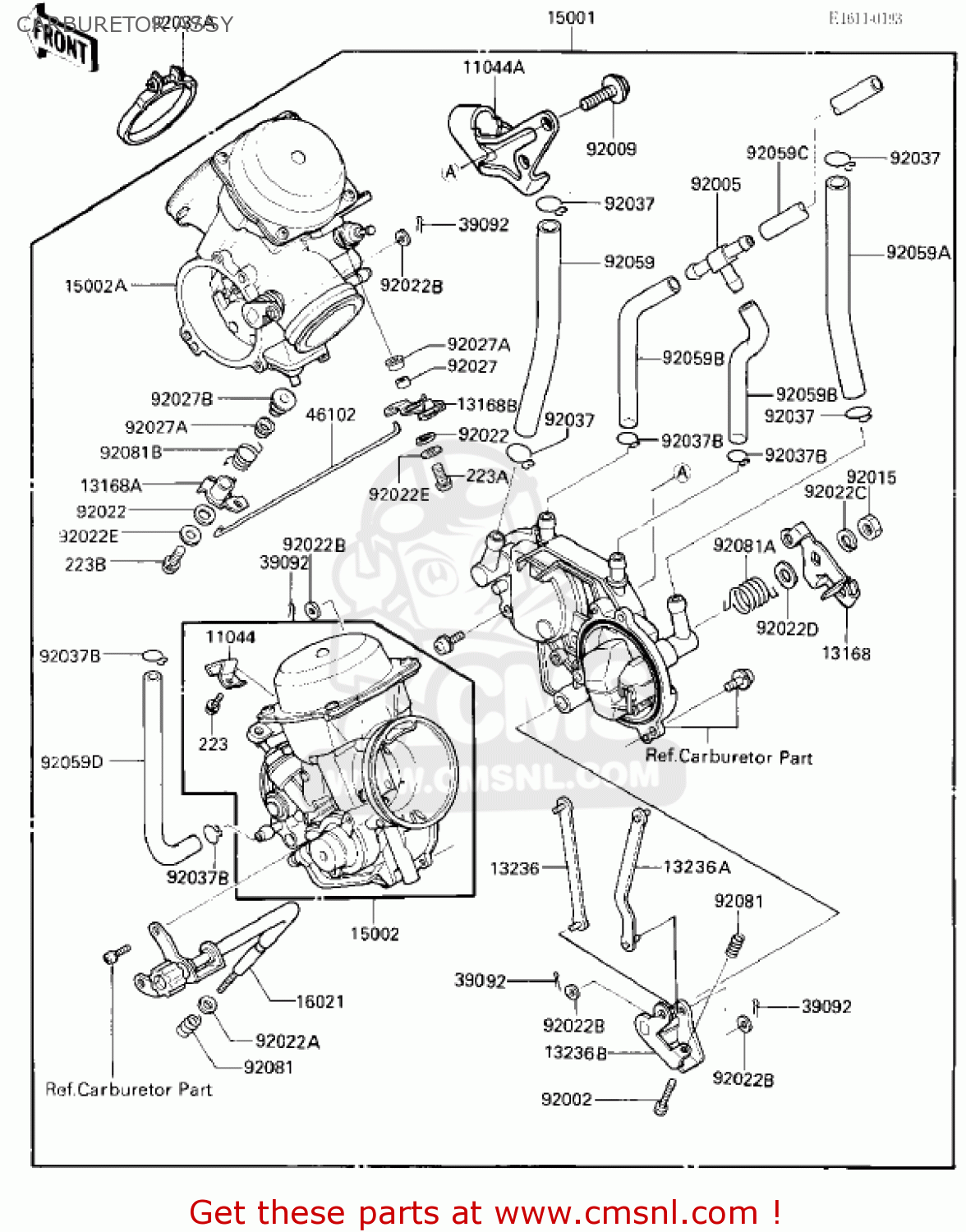

Carburetor assy diagram VN700A1 LTD 1985 USA CALIFORNIA
CARBURETOR ASSY VN700A1 LTD 1985 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11044
110441152
ref: 11044
BRACKET
€ 27.00
11044A
110441351
ref: 11044A
BRACKET,THROTTLE CABL
€ 27.00
13168
131681262
ref: 13168
LEVER,THROTTLE
€ 23.50
13168A
131681275
ref: 13168A
LEVER,PLUNGER,FR
€ 16.00
13168B
131681276
ref: 13168B
LEVER,PLUNGER,RR
€ 18.00
13236
132361130
ref: 13236
LEVER-COMP,FR
€ 14.00
13236A
132361131
ref: 13236A
LEVER-COMP,RR
€ 14.00
13236B
132361132
ref: 13236B
LEVER-COMP,THROTTLE
€ 31.50
15001
150011147
ref: 15001
CARBURETOR ASSEMBLY
€ 576.00
15002
150021221
ref: 15002
CARBURETOR,FRONT
€ 299.00
15002A
150021223
ref: 15002A
CARBURETOR,REAR
€ 314.00
16021
160211112
ref: 16021
SCREW-THROTTLE STOP
€ 89.50
39092
390921051
ref: 39092
PIN-HAIR
€ 2.00
46102
461021141
ref: 46102
ROD,STARTER
€ 9.50
92002
920021556
ref: 92002
BOLT,THROTTLE ADJUST
€ 4.00
92005
920051135
ref: 92005
FITTING,T-TYPE
€ 17.50
92009
920091365
ref: 92009
SCREW
€ 4.50
92015
920151526
ref: 92015
NUT,LOCK
€ 3.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92022B
920221676
ref: 92022B
WASHER,3.1X8X0.5,POLY
€ 3.00
92022C
920221708
ref: 92022C
WASHER,SPRING
€ 2.00
92022D
920221709
ref: 92022D
WASHER,8X16X1.1
€ 4.50
92022E
920221721
ref: 92022E
WASHER,4X10X1.5
€ 4.00
92027
920271917
ref: 92027
COLLAR
€ 7.50
92027A
920271918
ref: 92027A
COLLAR
€ 5.50
92027B
920271919
ref: 92027B
COLLAR
€ 5.00
92037
920371158
ref: 92037
CLAMP,FUEL HOSE
€ 4.50
92037A
920371637
ref: 92037A
CLAMP
€ 6.00
92037B
920371682
ref: 92037B
CLAMP,TUBE
€ 4.00
92059
920591029
ref: 92059
TUBE,FUEL,7.3X12.5X20
€ 18.50
92059A
920591492
ref: 92059A
TUBE,7.3X12.5X260
€ 25.00
92059B
920591612
ref: 92059B
TUBE,11X7X55
€ 17.00
92059C
920591639
ref: 92059C
TUBE,7X11X260
€ 17.00
92059D
920591623
ref: 92059D
TUBE,5.3X10.5X100
€ 11.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811841
ref: 92081A
SPRING,THROTTLE LEVER
€ 9.00
92081B
920811842
ref: 92081B
SPRING,PLUNGER LEVER
€ 10.00
223
223D0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223D0414
ref: 223A
SCREW-PAN-WS-CROS
€ 2.00
223B
223D0420
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
