CARBURETOR PARTS
VN700A1 LTD 1985 USA CALIFORNIA

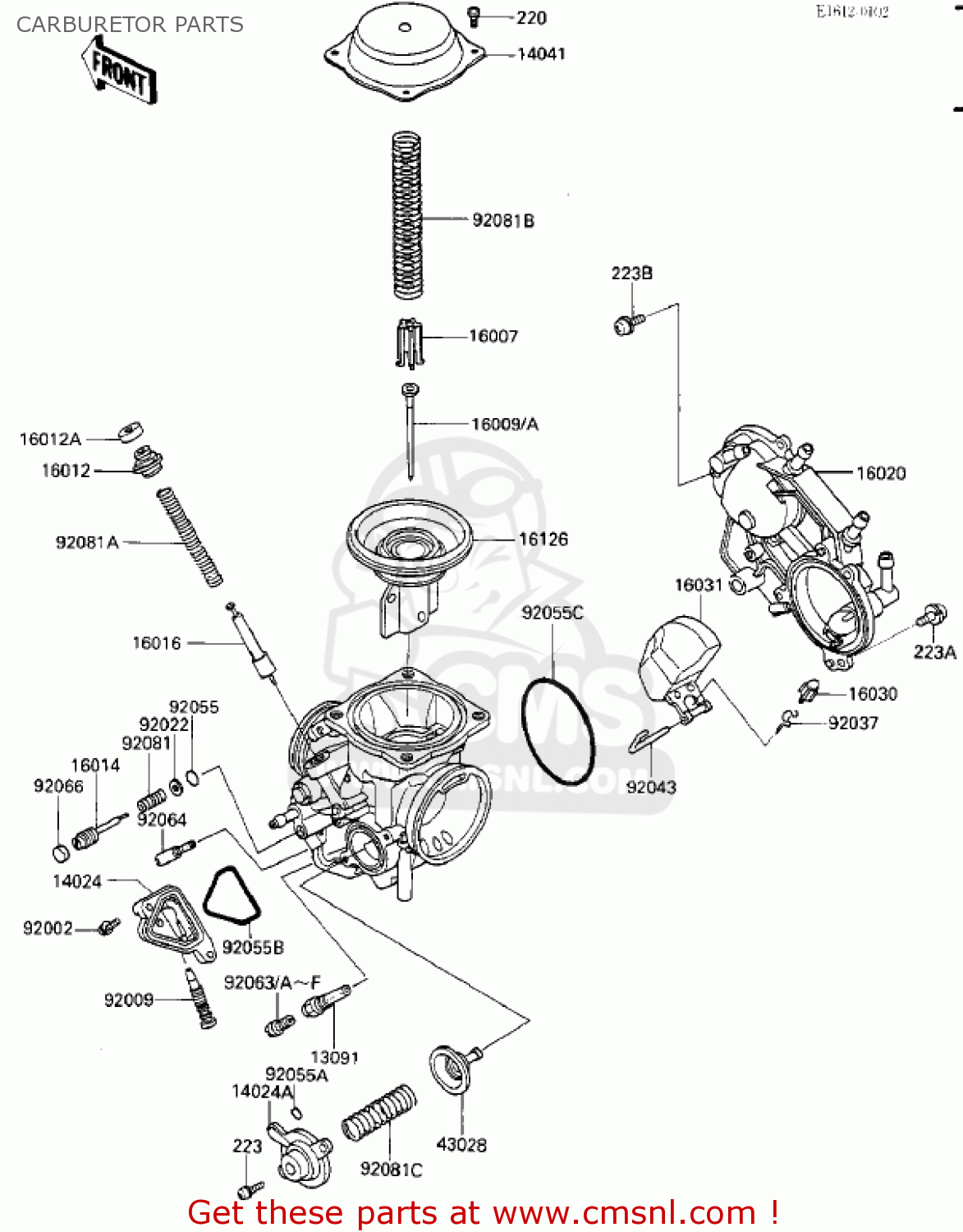

Carburetor parts diagram VN700A1 LTD 1985 USA CALIFORNIA
CARBURETOR PARTS VN700A1 LTD 1985 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13091
130911384
ref: 13091
HOLDER,NEEDLE JET
€ 21.00
14024
140241094
ref: 14024
COVER,DRAIN
€ 98.50
14024A
140251903
ref: 14024A
COVER,AIR CUT VALVE
€ 43.00
14041
140411061
ref: 14041
COVER-COMP,MIXING CHA
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091261
ref: 16009
JET,NEEDLE,#27H,FRONT
€ 16.50
16009A
160091262
ref: 16009A
JET,NEEDLE,#27I,REAR
€ 16.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16020
160201051
ref: 16020
CHAMBER-FLOAT,COMP
€ 235.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311059
ref: 16031
FLOAT
€ 43.00
16126
161261173
ref: 16126
VALVE,VACUUM
€ 159.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92002
920021761
ref: 92002
BOLT
€ 3.50
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431285
ref: 92043
PIN,FLOAT
€ 12.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551245
ref: 92055A
RING-O
€ 3.50
92055B
920551290
ref: 92055B
RING-O
€ 12.00
92055C
920551291
ref: 92055C
RING-O
€ 14.50
92063
920631013
ref: 92063
(RACING USE ONLY)
MAIN JET,#140
€ 9.00
92063A
920631014
ref: 92063A
MAIN JET,#135
€ 9.50
92063B
920631015
ref: 92063B
(RACING USE ONLY)
MAIN JET,#138
€ 9.50
92063C
920631069
ref: 92063C
(RACING USE ONLY)
MAIN JET,2ND #125
€ 9.50
92063D
920631074
ref: 92063D
(RACING USE ONLY)
MAIN JET,2ND #128
€ 9.50
92063E
920631075
ref: 92063E
(RACING USE ONLY)
MAIN JET,2ND #130
€ 9.50
92063F
920631076
ref: 92063F
(RACING USE ONLY)
JET-MAIN,#132
€ 9.50
92064
920641118
ref: 92064
JET-PILOT,#38
€ 12.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
€ 17.50
92081C
920811891
ref: 92081C
SPRING,AIR CUT VALVE
€ 8.50
220
220D0408
ref: 220
SCREW-PAN-CROS
€ 0.50
223
223D0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0512
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
