CHASSIS ELECTRICAL EQUIPMENT
VN700A1 LTD 1985 USA CALIFORNIA

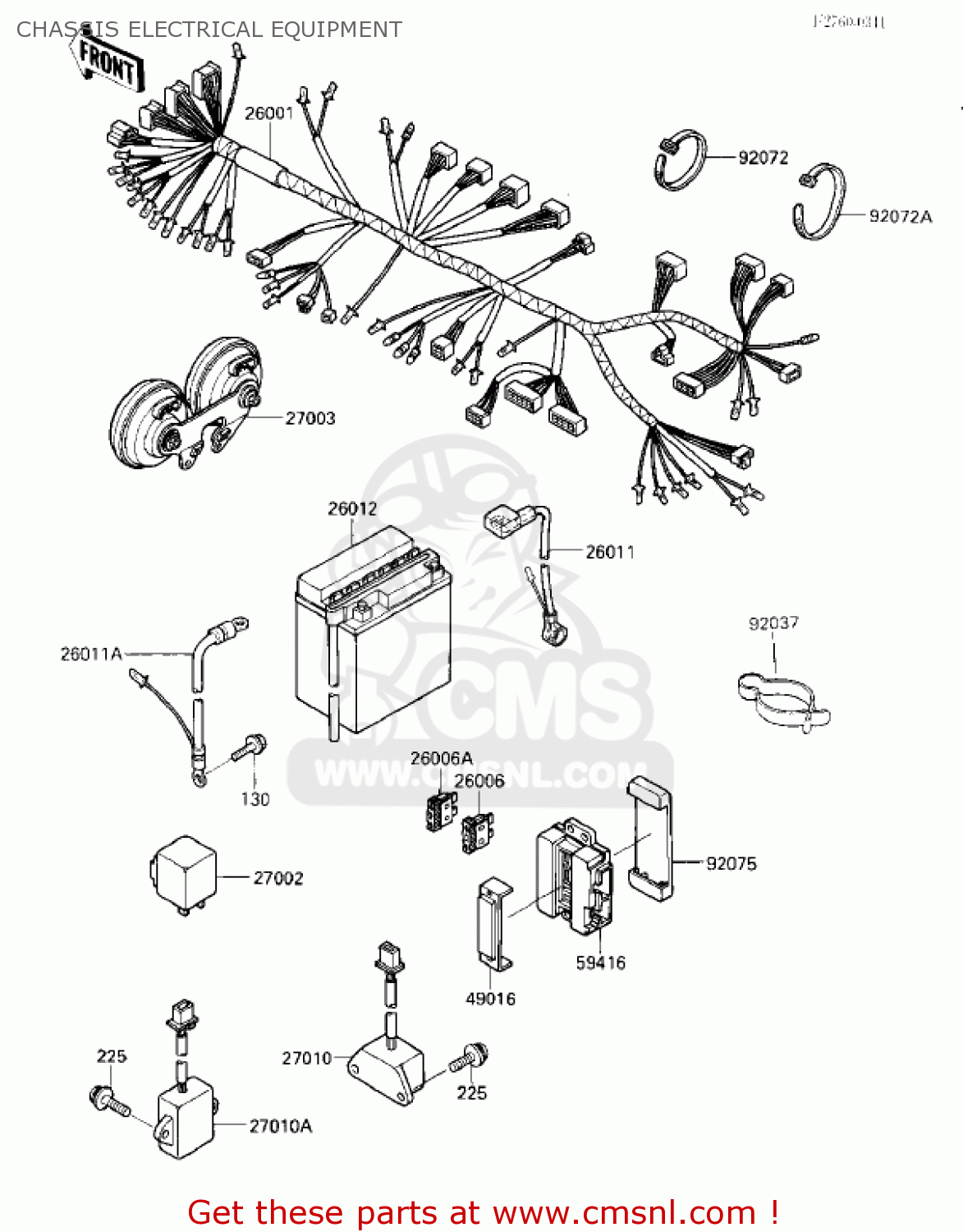

Chassis electrical equipment diagram VN700A1 LTD 1985 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN700A1 LTD 1985 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
26001
260011690
ref: 26001
HARNESS,MAIN
€ 211.50
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111310
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 22.00
26011A
260111549
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 19.50
26012
260121008
ref: 26012
BATTERY,12V13AH W/LAB
€ 101.50
27002
270021060
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 65.50
27003
270031218
ref: 27003
HORN,DOUBLE
€ 172.00
27010
270101069
ref: 27010
SWITCH,RESERVE LIGTIN
€ 149.00
27010A
270101153
ref: 27010A
SWITCH,TURN SIGNAL OP
€ 108.50
49016
490161106
ref: 49016
COVER-SEAL,FUSE
€ 8.00
59416
594161052
ref: 59416
CASE-ELECTRIC,FUSE &
€ 158.00
92037
92037093
ref: 92037
CLAMP
€ 7.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072056
ref: 92072A
BAND,RUBBER
€ 3.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
€ 9.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
225
225B0620
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
