CAMSHAFTS/CHAIN/TENSIONER
VN700A1 LTD 1985 USA CALIFORNIA

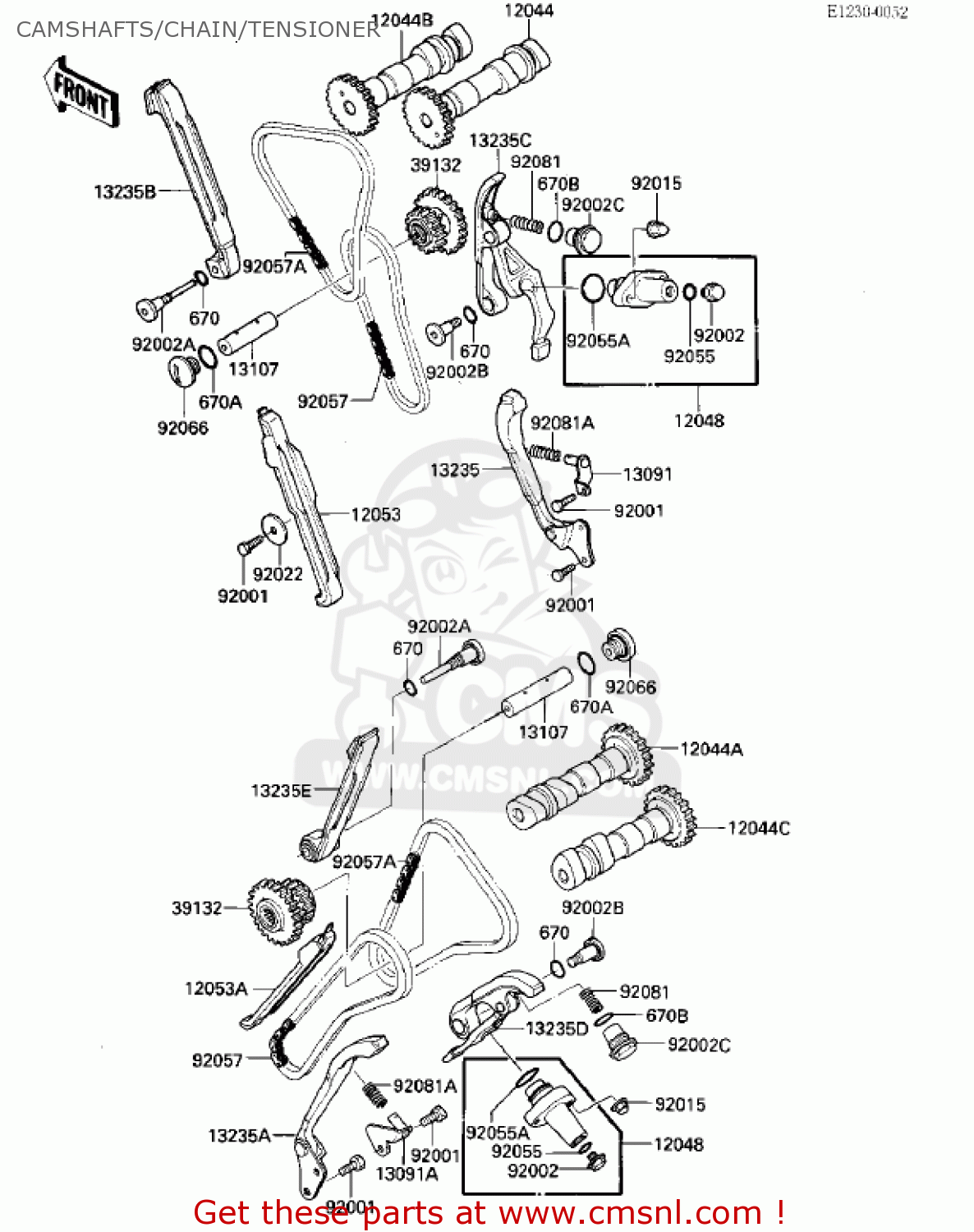

Camshafts/chain/tensioner diagram VN700A1 LTD 1985 USA CALIFORNIA
CAMSHAFTS/CHAIN/TENSIONER VN700A1 LTD 1985 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
12044
120441144
ref: 12044
CAMSHAFT-VALVE,INTAKE
€ 193.00
12044A
120441145
ref: 12044A
CAMSHAFT-VALVE,INTAKE
€ 193.00
12044B
120441146
ref: 12044B
CAMSHAFT-VALVE,EXHAUS
€ 193.00
12044C
120441147
ref: 12044C
CAMSHAFT-VALVE,EXHAUS
€ 193.00
12048
120481069
ref: 12048
TENSIONER-ASSY
€ 86.00
12053
120531161
ref: 12053
GUIDE-CHAIN,FR,LWR
€ 38.50
12053A
120531162
ref: 12053A
GUIDE-CHAIN,RR,LWR
€ 45.00
13091
130911367
ref: 13091
HOLDER,CHAIN GUIDE,FR
€ 10.50
13091A
130911368
ref: 13091A
HOLDER,CHAIN GUIDE,RR
€ 9.50
13107
131071145
ref: 13107
SHAFT,IDLER
€ 25.00
13235
132351051
ref: 13235
GUIDE-COMP,FR,LWR
€ 73.00
13235A
132351052
ref: 13235A
GUIDE-COMP,RR,LWR
€ 69.50
13235B
132351053
ref: 13235B
GUIDE-COMP,FR,UPP
€ 82.50
13235C
132351054
ref: 13235C
GUIDE-COMP,FR,UPP
€ 223.50
13235D
132351055
ref: 13235D
GUIDE-COMP,RR,UPP
€ 247.00
13235E
132351056
ref: 13235E
GUIDE-COMP,RR,UPP
€ 87.00
39132
391321053
ref: 39132
SPROCKET-ASSY-IDLER
€ 124.00
92001
920011457
ref: 92001
BOLT,EXCLUSIVE MASS P
€ 3.00
92002
920021302
ref: 92002
BOLT
€ 4.50
92002A
920021497
ref: 92002A
BOLT
€ 15.00
92002B
920021498
ref: 92002B
BOLT
€ 10.00
92002C
920021499
ref: 92002C
BOLT,TENSIONER
€ 14.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92022
92022227
ref: 92022
WASHER-PLAIN,7MM
€ 3.00
92055
670D2010
ref: 92055
O RING,10MM
€ 1.00
92055A
670D2021
ref: 92055A
O RING,21MM
€ 5.00
92057
920571192
ref: 92057
CHAIN,LWR,75RH2015X82
€ 22.50
92057A
920571193
ref: 92057A
CHAIN,UPP,79RH2020X82
€ 25.50
92066
920661196
ref: 92066
PLUG,IDLE
€ 1.50
92081
920811380
ref: 92081
SPRING,TENSIONER
€ 5.00
92081A
920811837
ref: 92081A
SPRING
€ 3.00
670
670B2011
ref: 670
O RING,11MM
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
