TRANSMISSION

VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

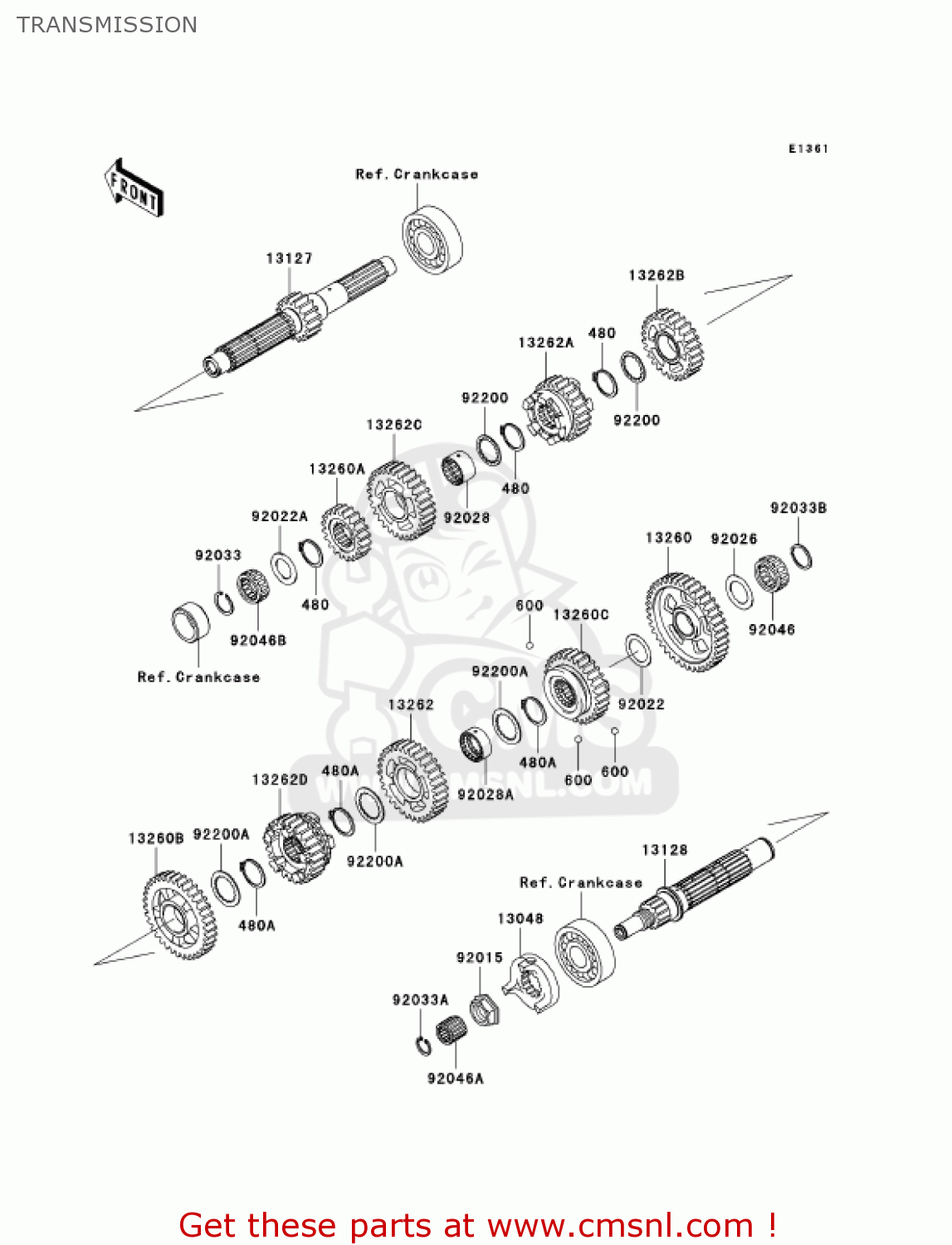

Transmission diagram VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

TRANSMISSION VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
TRANSMISSION VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
TRANSMISSION VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
480J2800
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13048
130481086
ref: 13048
CAM-DAMPER
€ 78.50
13127
131271288
ref: 13127
SHAFT-TRANSMISSION IN
€ 364.00
13128
131280002
ref: 13128
SHAFT-TRANSMISSION OU
131280002
€ 325.50
13260
132601910
ref: 13260
GEAR,OUTPUT LOW,40T
€ 161.50
13260A
132601914
ref: 13260A
GEAR,INPUT 2ND,22T
132601914
€ 152.00
13260B
132601918
ref: 13260B
GEAR,OUTPUT 2ND,35T
132601918
€ 161.50
13260C
132601920
ref: 13260C
GEAR,OUTPUT 4TH,28T
€ 128.00
13262
132620093
ref: 13262
GEAR,OUTPUT 3RD,31T
132620093
€ 161.50
13262A
132621068
ref: 13262A
GEAR,INPUT 3RD,26T
132621068
€ 161.50
13262B
132621069
ref: 13262B
GEAR,INPUT 4TH,29T
€ 161.50
13262C
132621070
ref: 13262C
GEAR,INPUT 5TH,32T
132621070
€ 161.50
13262D
132621072
ref: 13262D
GEAR,OUTPUT 5TH,25T
132621072
€ 152.00
92015
920151610
ref: 92015
NUT,20MM
920151610
€ 9.00
92022
920221855
ref: 92022
WASHER,25.5X36X1.0
920221855
€ 6.50
92022A
92022212
ref: 92022A
WASHER-PLAIN,22MM
92022212
€ 6.50
92026
920261536
ref: 92026
SPACER,25.5X38X1.0
€ 4.50
92028
920281990
ref: 92028
BUSHING,INPUT TOP GEA
920281990
€ 27.50
92028A
920281991
ref: 92028A
BUSHING,OUTPUT 3RD GE
€ 36.00
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
92033032
ref: 92033A
CIRCLIP
92033032
€ 3.00
92033B
920331172
ref: 92033B
RING-SNAP,25MM
920331172
€ 3.50
92046
920461259
ref: 92046
BEARING-NEEDLE,TK2535
920461259
€ 23.50
92046A
920461260
ref: 92046A
BEARING-NEEDLE,FWF-16
920461260
€ 24.50
92046B
920461293
ref: 92046B
BEARING-NEEDLE,BN5022
920461293
€ 20.00
92200
922001240
ref: 92200
WASHER,2ND,3RD,4TH
922001240
€ 7.00
92200A
922001381
ref: 92200A
WASHER,30.3X40X1.5
922001381
€ 8.50
