Genuine VN Kawasaki Parts delivered quickly!


FUEL TANK

VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

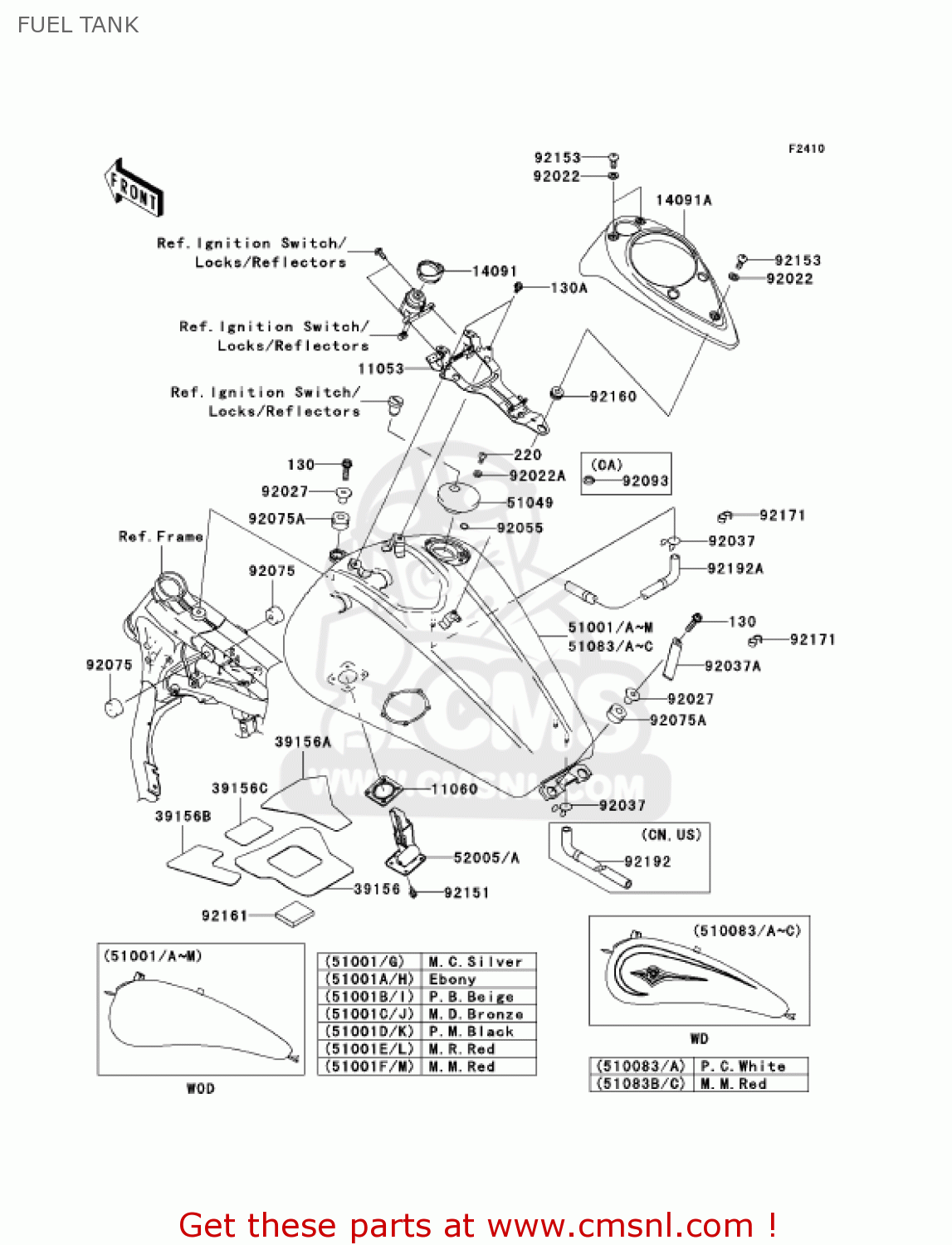

Fuel tank diagram VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

FUEL TANK VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
FUEL TANK VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
FUEL TANK VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11053
110530275
ref: 11053
BRACKET,METER COVER
€ 41.50
11060
110601952
ref: 11060
GASKET,FUEL GAUGE (NAS)
110601952
€ 14.50
14091
140910088
ref: 14091
COVER,IGNITION SWITCH
€ 6.50
14091A
140910091
ref: 14091A
COVER,METER
140910091
€ 72.50
39156
391560019
ref: 39156
PAD,FUEL TANK,CNT,RR
391560019
€ 34.50
39156A
391560020
ref: 39156A
PAD,FUEL TANK,RH
391560020
€ 28.50
39156B
391560021
ref: 39156B
PAD,FUEL TANK,LH
391560021
€ 16.50
39156C
391560022
ref: 39156C
PAD,FUEL TANK,CNT,FR
391560022
€ 6.50
51001D
510010017218
ref: 51001D
[CA]
TANK-COMP-FUEL,P.M.BL
€ 688.00
51001F
510010017665
ref: 51001F
[CA]
TANK-COMP-FUEL,M.M.RE
€ 688.00
51001K
510010018218
ref: 51001K
[CN,US
TANK-COMP-FUEL,P.M.BL
€ 1,155.00
51001M
510010018665
ref: 51001M
[CN,US
TANK-COMP-FUEL,M.M.RE
€ 1,119.50
51049
510490003
ref: 51049
CAP-TANK,FUEL
510490003
€ 98.50
130
130H0830
ref: 130
BOLT-FLANGED,8X30
130H0830
€ 1.00
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
220
220D0510
ref: 220
SCREW-PAN-CROS
220D0510
€ 0.50
51083
510835153667
ref: 51083
[CN,US
TANK-COMP-FUEL,P.C.WH
€ 858.50
51083A
510835178667
ref: 51083A
[CA]
TANK-COMP-FUEL,P.C.WH
€ 828.50
52005A
520050004
ref: 52005A
GAUGE,FUEL
520050004
€ 159.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371636
ref: 92037A
CLAMP,HARNESS,L=100
€ 5.50
92055
920551552
ref: 92055
RING-O
920551552
€ 2.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751736
ref: 92075A
DAMPER
920751736
€ 4.00
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
92151
921511599
ref: 92151
BOLT,FLANGED,5X12
921511599
€ 1.50
92153
921531096
ref: 92153
BOLT,SOCKET,6X10
921531096
€ 1.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92161
921611338
ref: 92161
DAMPER
€ 4.00
92171
921711184
ref: 92171
CLAMP
921711184
€ 1.50
92192
921920024
ref: 92192
[CN,US
TUBE,BREATHER
921920024
€ 13.00
92192A
921920038
ref: 92192A
TUBE,DRAIN
921920038
€ 16.50
