FOOTRESTS

VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

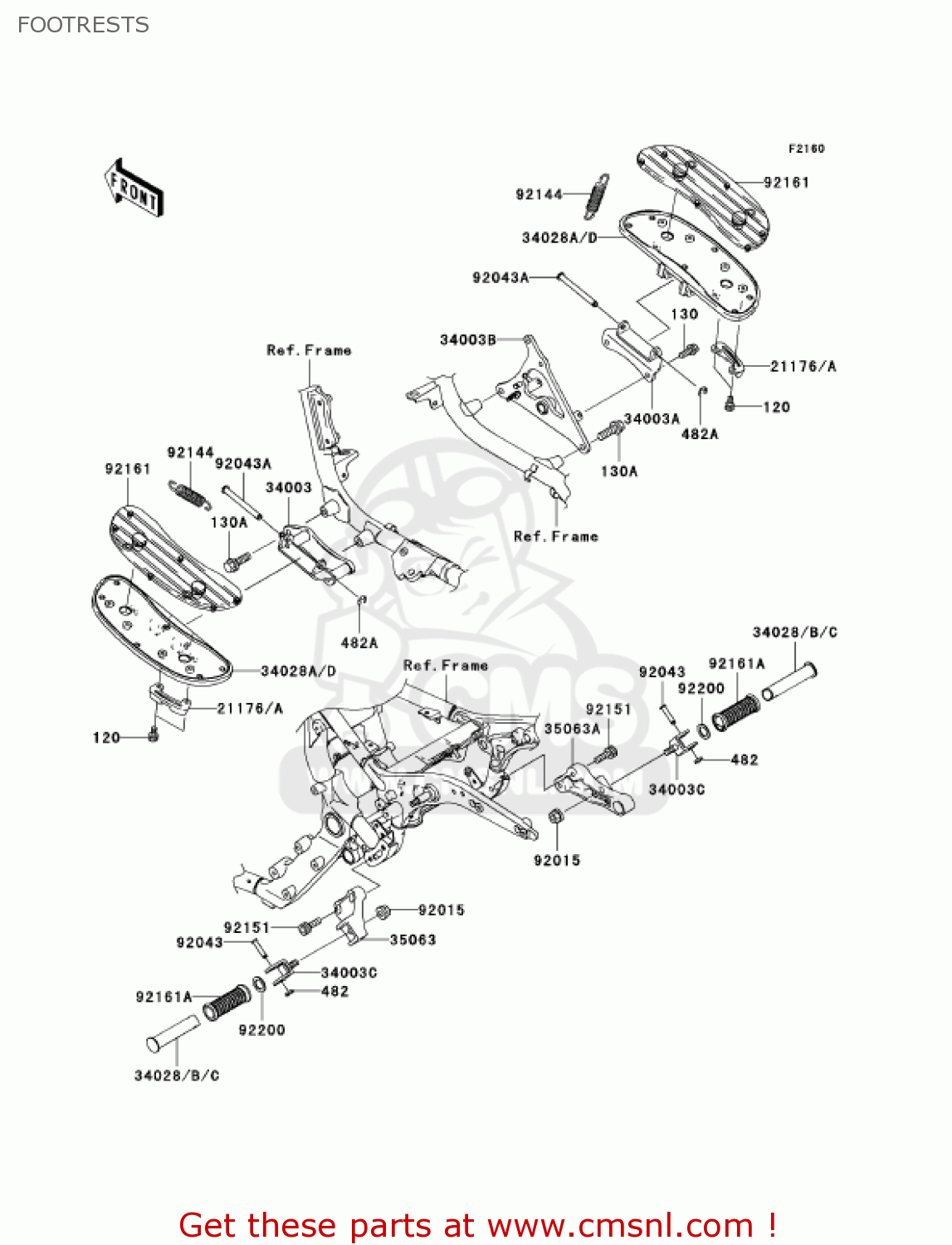

Footrests diagram VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

FOOTRESTS VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
FOOTRESTS VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
FOOTRESTS VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0616
ref: 120
BOLT-SOCKET,6X16
120S0616
€ 1.00
130
130J0820
ref: 130
BOLT-FLANGED,8X20
130J0820
€ 0.50
130A
130J1030
ref: 130A
BOLT-FLANGED,10X30
€ 3.50
482
482L7000
ref: 482
CIRCLIP-TYPE-E
482L7000
€ 2.50
482A
482L8000
ref: 482A
CIRCLIP-TYPE-E,8MM
482L8000
€ 0.50
21176A
211761124
ref: 21176A
SENSOR,BANK
€ 13.50
34003
340030012
ref: 34003
HOLDER-STEP,FR,LH
€ 76.00
34003A
340030013
ref: 34003A
HOLDER-STEP,FR,RH
340030013
€ 32.00
34003B
340030014
ref: 34003B
HOLDER-STEP,FR,RH
€ 108.50
34003C
340030015
ref: 34003C
HOLDER-STEP,RR
340030015
€ 22.00
34028
340280008
ref: 34028
STEP,RR
€ 20.50
34028A
340280011
ref: 34028A
STEP
340280011
€ 110.50
35063
350631268
ref: 35063
STAY,REAR STEP,LH
€ 66.00
35063A
350631269
ref: 35063A
STAY,REAR STEP,RH
€ 66.00
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92043
920431339
ref: 92043
PIN
920431339
€ 5.00
92043A
920431707
ref: 92043A
PIN,10X98.5
920431707
€ 7.50
92144
921441266
ref: 92144
SPRING,BRAKE PEDAL RE
921441266
€ 5.50
92151
921511525
ref: 92151
BOLT, SOCKET, 8X25
921511525
€ 2.00
92161
921611325
ref: 92161
DAMPER,FRONT STEP,LH
921611325
€ 54.00
92161A
921611339
ref: 92161A
DAMPER,STEP
€ 12.00
92200
922001482
ref: 92200
WASHER,22.5X33X2.3
922001482
€ 2.00
