FRAME FITTINGS (A1/A2)

VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

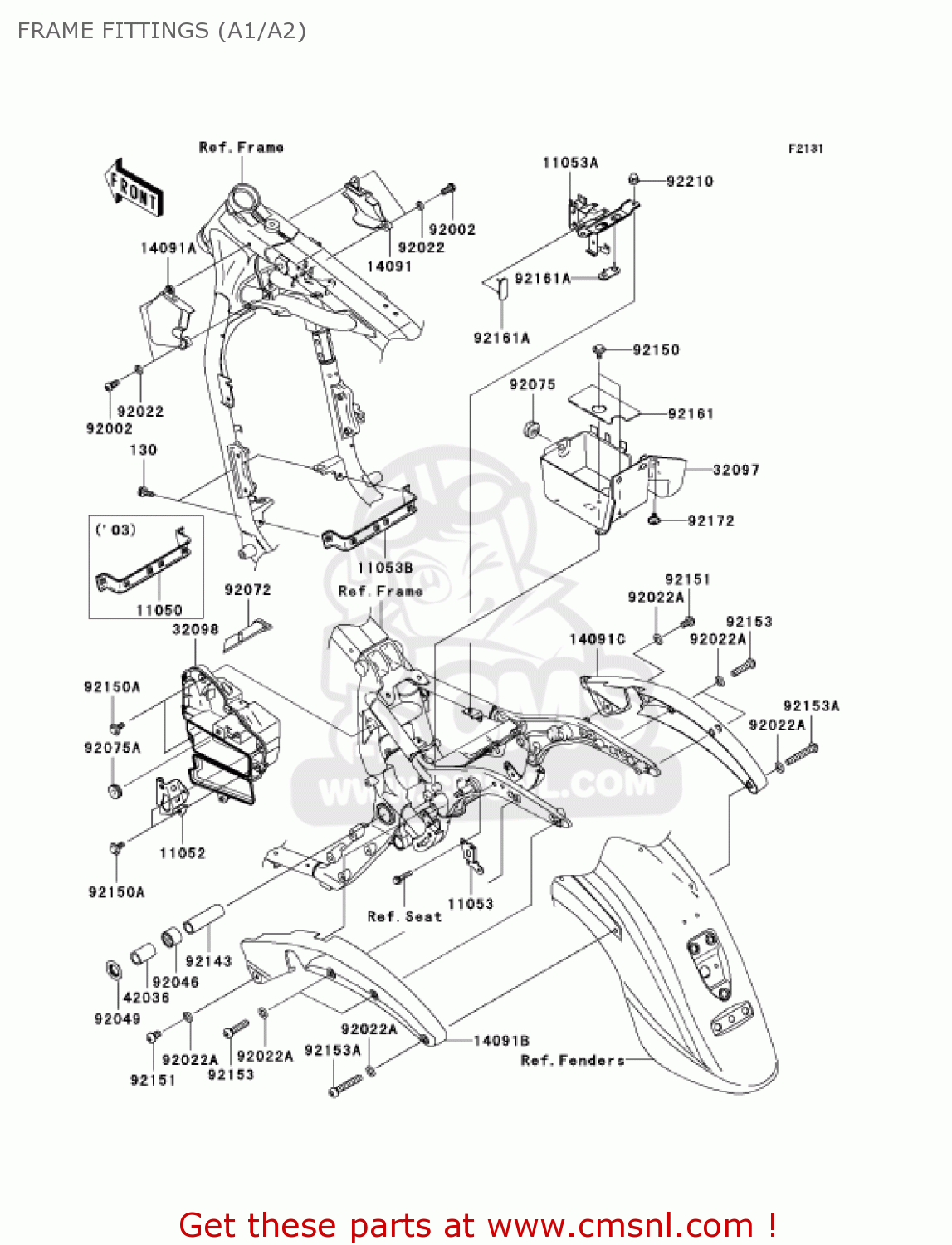

Frame fittings (a1/a2) diagram VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

FRAME FITTINGS (A1/A2) VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
FRAME FITTINGS (A1/A2) VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
FRAME FITTINGS (A1/A2) VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
11052
110521234
ref: 11052
BRACKET,SIDE COVER LO
€ 15.00
11053
110530143
ref: 11053
BRACKET,HELMET LOCK
€ 7.50
11053A
110530289
ref: 11053A
BRACKET,BATTERY BAND
€ 10.50
11053B
110530434
ref: 11053B
BRACKET,REGULATOR
110530434
€ 18.50
14091
140910054
ref: 14091
COVER,HEAD PIPE,RH
€ 9.00
14091A
140910092
ref: 14091A
COVER,HEAD PIPE,LH
€ 9.50
14091B
140911544
ref: 14091B
COVER,FENDER,LH
€ 139.50
14091C
140911545
ref: 14091C
COVER,FENDER,RH
€ 139.50
32097
320971192
ref: 32097
CASE-BATTERY
€ 29.00
32098
320981137
ref: 32098
CASE-TOOL
€ 101.50
42036
420361330
ref: 42036
SLEEVE,L=45
420361330
€ 19.50
92002
920021700
ref: 92002
BOLT,6X14
€ 4.00
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92022A
920223043
ref: 92022A
WASHER,PLAIN,8MM
920223043
€ 2.00
92046
920461202
ref: 92046
BEARING-NEEDLE,BM2824
920461202
€ 25.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92072
920721331
ref: 92072
BAND,L=470
920721331
€ 16.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
920751067
€ 3.00
92075A
920751629
ref: 92075A
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92143
921431878
ref: 92143
COLLAR,20.2X27X90
921431878
€ 22.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92151
921511438
ref: 92151
BOLT,8X14
921511438
€ 1.50
92153
921530419
ref: 92153
BOLT,SOCKET,8X35
921530419
€ 2.00
92153A
921530420
ref: 92153A
BOLT,SOCKET,8X50
921530420
€ 2.00
92161
921611097
ref: 92161
DAMPER,BATTERY
921611097
€ 3.50
92161A
921611214
ref: 92161A
DAMPER,BATTERY BAND
€ 2.50
92172
921720005
ref: 92172
SCREW,6X10
921720005
€ 1.50
92210
922100003
ref: 92210
NUT
922100003
€ 0.50
