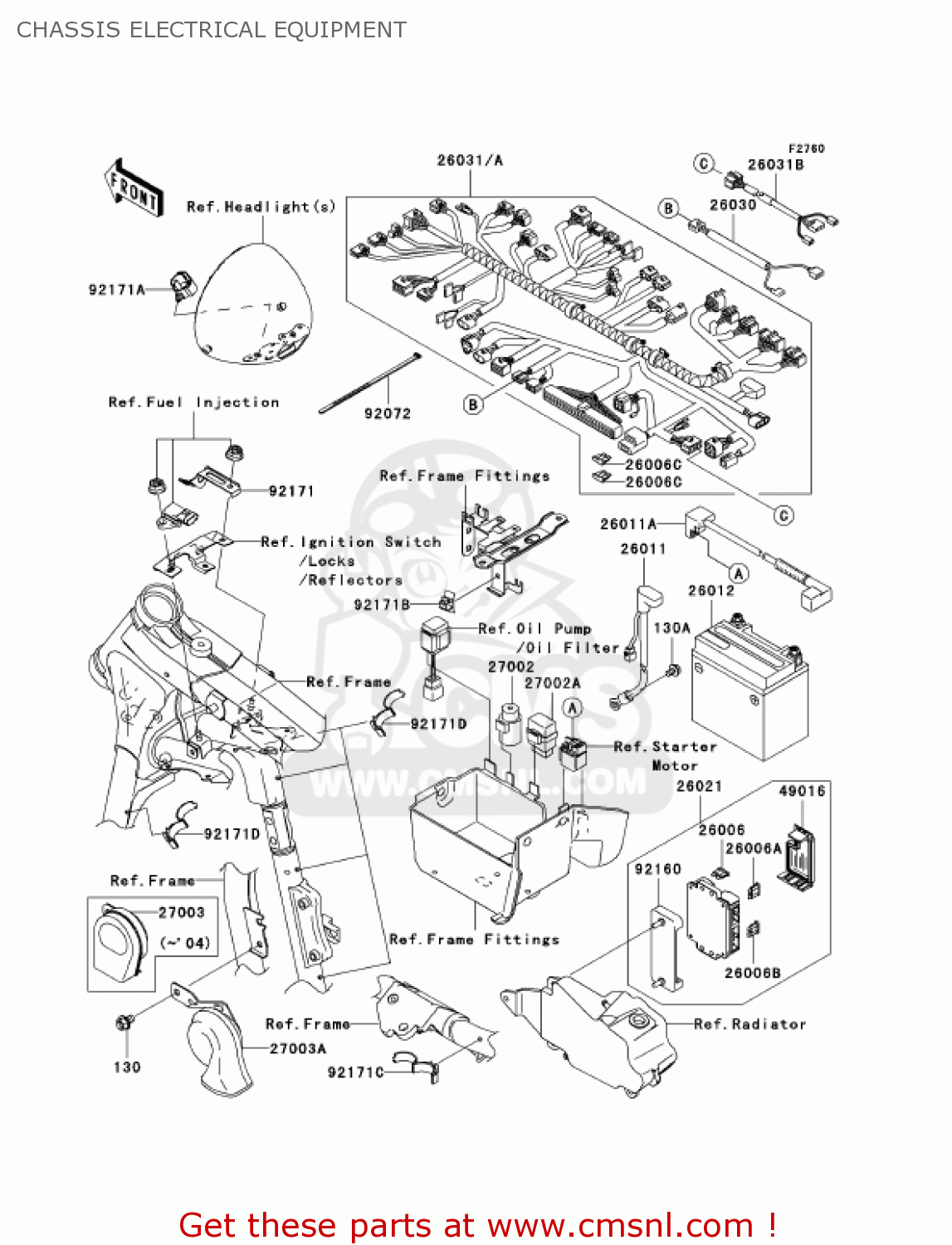

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0812
ref: 130

BOLT-FLANGED

€ 0.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26006B

260061061
ref: 26006B

FUSE

€ 3.50

26006C

260061075
ref: 26006C

FUSE,15A

€ 3.50

26011

260110007
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 42.00

26011A

260110018
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 40.50

26012

260121371
ref: 26012

BATTERY,MF,FTZ16-BS,1

€ 165.50

26021

260210002
ref: 26021

JUNCTION BOX

€ 155.00

26030

260301450
ref: 26030

HARNESS,SUB

€ 14.00

26031A

260310080
ref: 26031A

HARNESS,MAIN

€ 317.00

26031B

260311077
ref: 26031B

HARNESS,TAIL

€ 86.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021113
ref: 27002A

RELAY-ASSY,SIGNAL LAM

€ 88.00

27003

270030003
ref: 27003

HORN

€ 57.00

49016

490160005
ref: 49016

COVER-SEAL,FUSE

€ 8.50

92072

920721197
ref: 92072

BAND

€ 5.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92171

921710065
ref: 92171

CLAMP,HARNESS COUPLER

€ 6.50

92171A

921710069
ref: 92171A

CLAMP,20MM DIA.

€ 2.00

92171B

921711269
ref: 92171B

CLAMP,HARNESS

€ 2.50

92171C

921711423
ref: 92171C

CLAMP,DIA=10

€ 3.00

92171D

921711424
ref: 92171D

CLAMP,DIA=15

€ 3.00

all assemblies
