STAND(S)(A1/A2)

VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

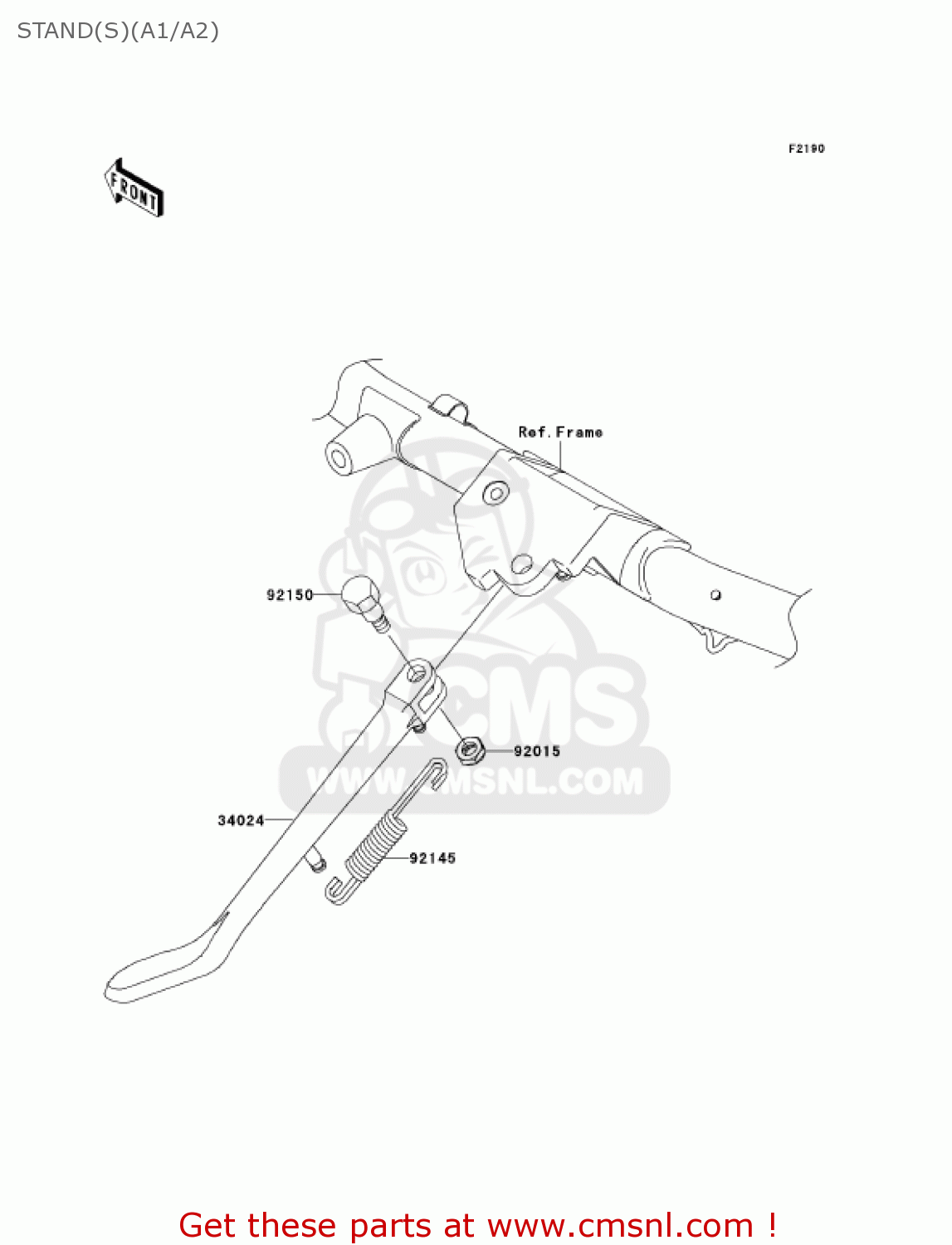

Stand(s)(a1/a2) diagram VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

STAND(S)(A1/A2) VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

STAND(S)(A1/A2) VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

34024

340241330
ref: 34024

STAND-SIDE

€ 129.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92145

921450083
ref: 92145

SPRING,SIDE STAND

€ 15.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
