Genuine VN Kawasaki Parts delivered quickly!


IGNITION SWITCH/LOCKS/REFLECTORS

VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

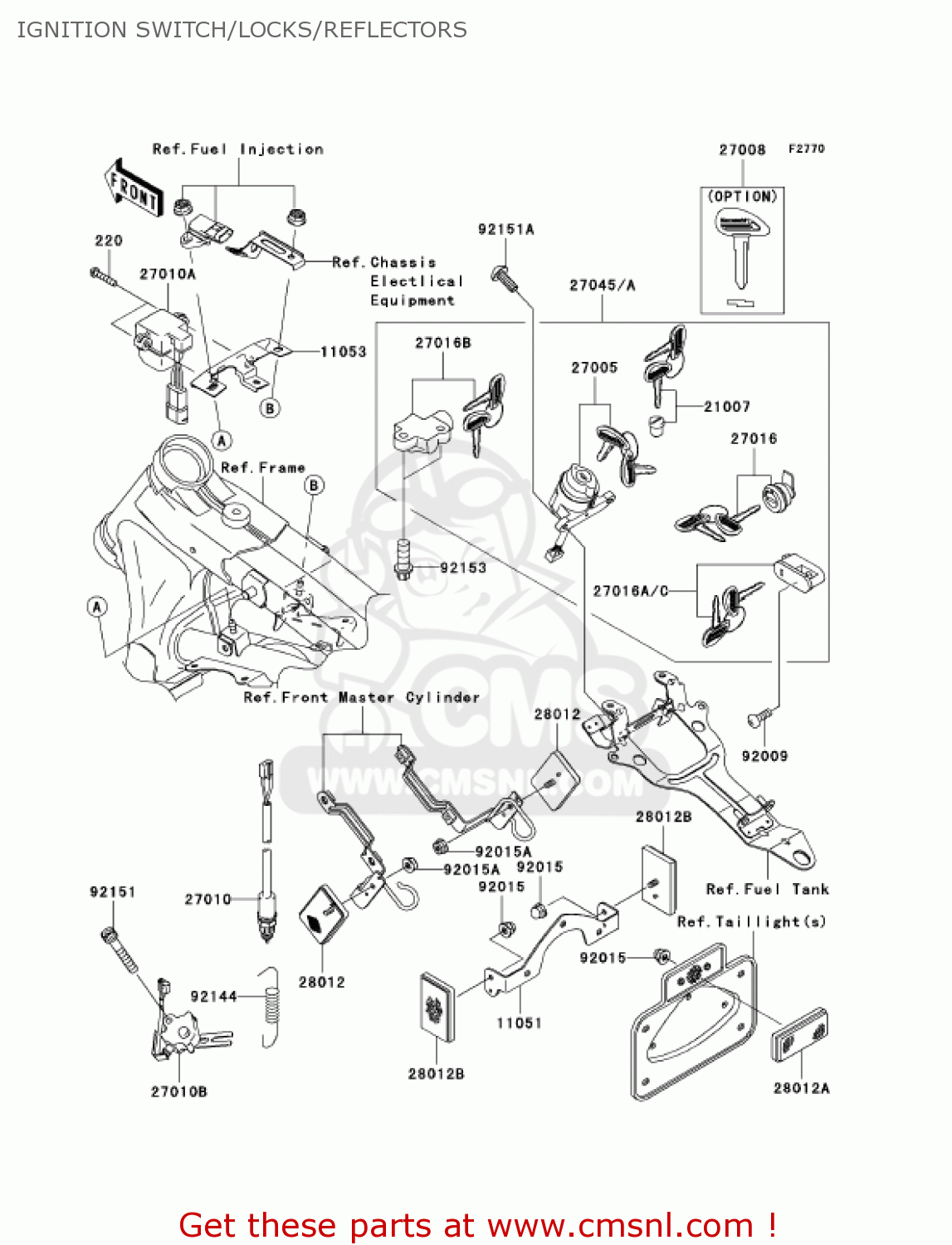

Ignition switch/locks/reflectors diagram VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN1600A2 VULCAN 1600 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220C0420
ref: 220
SCREW-PAN-CROS,4X20
220C0420
€ 0.50
11051
110511100
ref: 11051
REFLECTOR BRACKET
€ 7.50
11053
110530261
ref: 11053
BRACKET,DOWN SENSOR
€ 10.00
21007
210075053
ref: 21007
SWITCH-ASSY,TANK CAP
€ 50.50
27005
270050001
ref: 27005
SWITCH-ASSY-IGNITION
270050001
€ 249.00
27008
270081211
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081211
€ 23.50
27010
270101412
ref: 27010
SWITCH,REAR BRAKE
270101412
€ 26.50
27010A
270101416
ref: 27010A
SWITCH,DOWN SENSOR
€ 141.00
27010B
270101470
ref: 27010B
SWITCH,SIDE STAND
270101470
€ 53.50
27016
270165279
ref: 27016
LOCK-ASSY,PAD
€ 54.00
27016A
270165280
ref: 27016A
LOCK-ASSY,HELMET
€ 58.00
27016B
270165298
ref: 27016B
LOCK-ASSY,STEERING
270165298
€ 97.50
27045
270455178
ref: 27045
SWITCH-ASSY
€ 534.00
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
28012B
280121088
ref: 28012B
REFLECTOR-REFLEX
280121088
€ 15.00
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92015
920151263
ref: 92015
NUT,LOCK 5MM
920151263
€ 4.50
92015A
920151656
ref: 92015A
NUT,FLANGED,5MM
920151656
€ 2.00
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92151
921511390
ref: 92151
BOLT,SOCKET,6X35
€ 1.50
92151A
921511751
ref: 92151A
BOLT
921511751
€ 1.50
92153
921531273
ref: 92153
BOLT,TORX,8X22
€ 3.50
