TURN SIGNALS

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

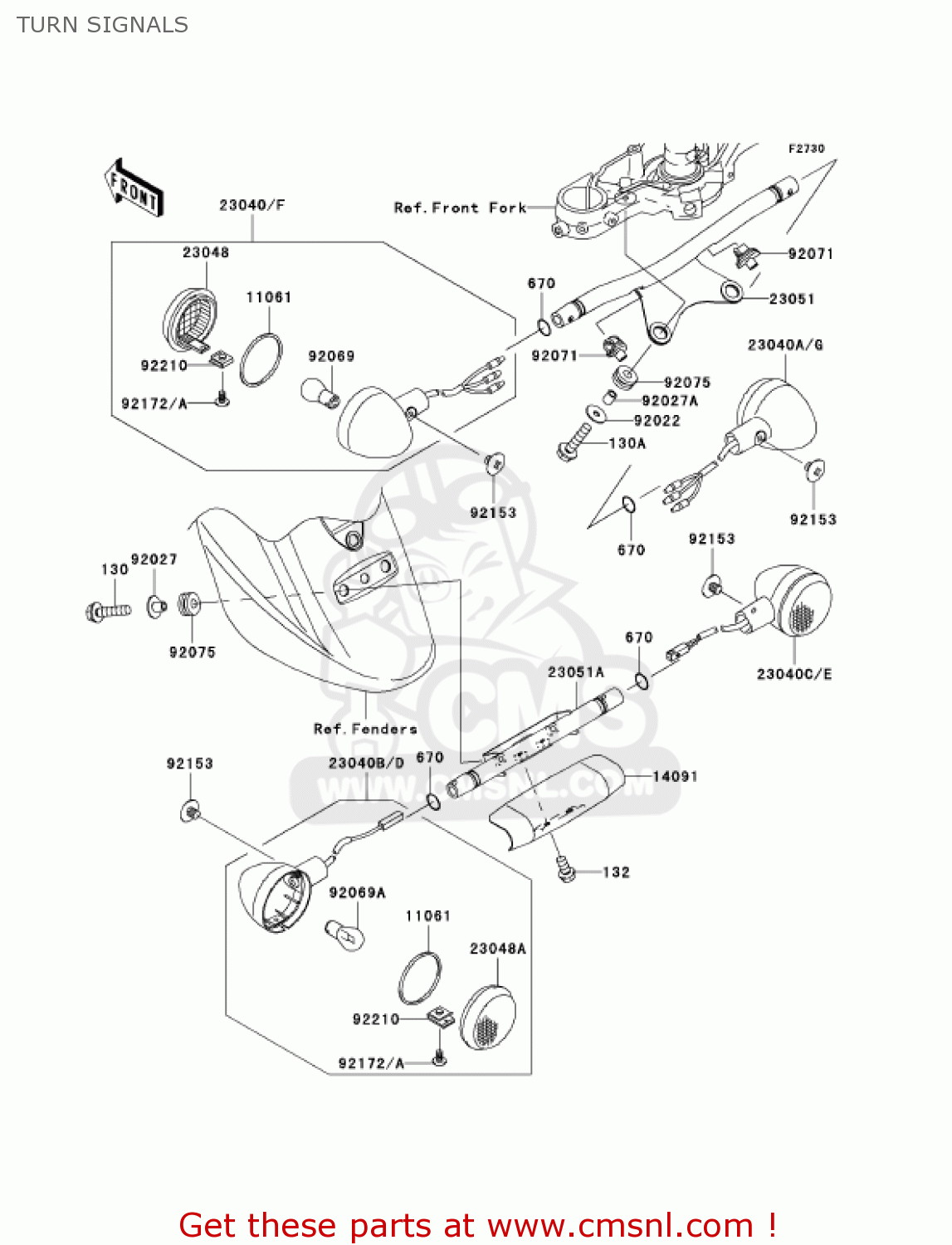

Turn signals diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

TURN SIGNALS VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
TURN SIGNALS VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
TURN SIGNALS VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
130A
130L0625
ref: 130A
BOLT-FLANGED
130L0625
€ 2.00
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
11061
110610005
ref: 11061
GASKET,SIGNAL LAMP (NAS)
110610005
€ 4.50
14091
140911572
ref: 14091
COVER,REAR SIGNAL LAM
140911572
€ 51.00
23040
230400001
ref: 23040
LAMP-SIGNAL,FR,LH
€ 58.50
23040A
230400002
ref: 23040A
LAMP-SIGNAL,FR,RH
€ 58.50
23040B
230400005
ref: 23040B
LAMP-SIGNAL,RR,LH
€ 59.50
23040C
230400006
ref: 23040C
LAMP-SIGNAL,RR,RH
€ 59.50
23048
230480001
ref: 23048
LENS-SIGNAL LAMP
230480001
€ 13.50
23048A
230480002
ref: 23048A
LENS-SIGNAL LAMP
230480002
€ 12.50
23051
230510001
ref: 23051
BRACKET-SIGNAL LAMP,F
230510001
€ 121.50
23051A
230510002
ref: 23051A
BRACKET-SIGNAL LAMP,R
230510002
€ 161.00
92022
920221160
ref: 92022
WASHER,7X24X1.6
920221160
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
?
ref: 92069A
(LOCAL PROCUREMENT I
?
92071
920710007
ref: 92071
GROMMET,SIGNAL LAMP
920710007
€ 3.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92153
921530396
ref: 92153
BOLT,6MM
921530396
€ 3.00
92172
921720015
ref: 92172
SCREW,4X8
€ 2.00
92210
922100155
ref: 92210
NUT,4MM
922100155
€ 2.50
