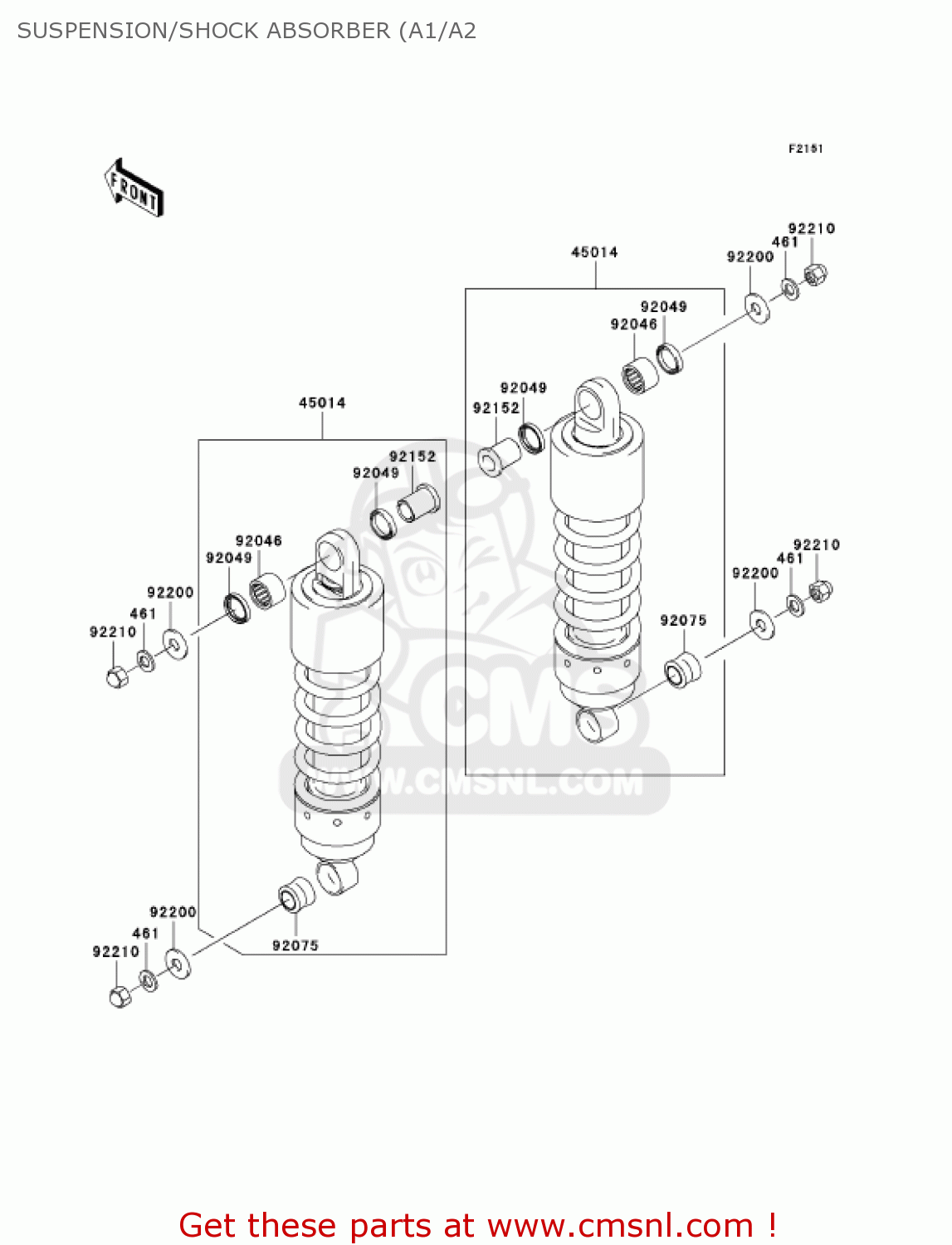

SUSPENSION/SHOCK ABSORBER (A1/A2

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

Suspension/shock absorber (a1/a2 diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

461

461S1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

45014

450141832
ref: 45014

SHOCKABSORBER

€ 637.50

92046

920460003
ref: 92046

BEARING-NEEDLE

€ 23.00

92049

920490018
ref: 92049

SEAL-OIL

€ 7.50

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92152

921520064
ref: 92152

COLLAR

€ 6.00

92200

922001565
ref: 92200

WASHER,10.5X26X2.5

€ 1.50

92210

922101288
ref: 92210

NUT,CAP,10MM

€ 3.50
