OIL PUMP/OIL FILTER

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

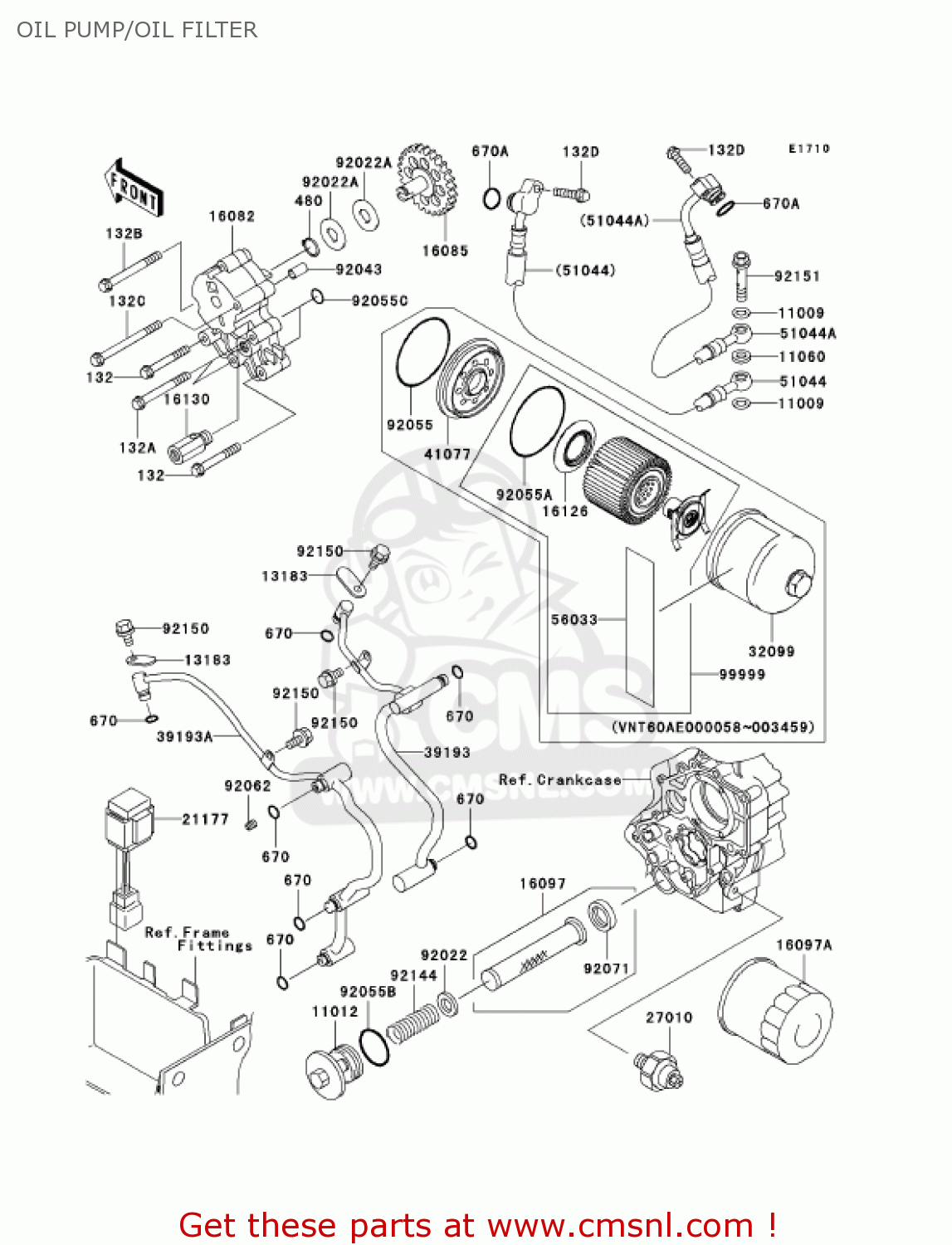

Oil pump/oil filter diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0645
ref: 132
BOLT-FLANGED-SMALL
132G0645
€ 2.50
132A
132G0655
ref: 132A
BOLT-FLANGED-SMALL
132G0655
€ 2.00
132B
132G0660
ref: 132B
BOLT-FLANGED-SMALL
132G0660
€ 2.50
132C
132G0670
ref: 132C
BOLT-FLANGED-SMALL
132G0670
€ 1.50
132D
132J0625
ref: 132D
BOLT-FLANGED-SMALL
132J0625
€ 2.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
670
670D1508
ref: 670
O RING,8MM
670D1508
€ 2.50
670A
670D2010
ref: 670A
O RING,10MM
670D2010
€ 1.00
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
11012
110121461
ref: 11012
CAP,OIL FILTER
110121461
€ 32.00
11060
110601739
ref: 11060
GASKET,PIPE JOINT (NAS)
110601739
€ 2.00
13183
131831071
ref: 13183
PLATE
€ 3.00
16082
160821155
ref: 16082
PUMP-ASSY-OIL
160821155
€ 201.00
16085
160851345
ref: 16085
GEAR,OIL PUMP,39T
160851345
€ 73.00
16097
160971058
ref: 16097
FILTER-ASSY-OIL
160971058
€ 9.50
16097A
160971072
ref: 16097A
FILTER-ASSY-OIL
160971072
€ 10.50
16126
161260012
ref: 16126
VALVE
€ 6.00
16130
161301059
ref: 16130
VALVE-ASSY-RELIEF
161301059
€ 30.00
21177
211771058
ref: 21177
CONTROLLER
211771058
€ 86.00
27010
270101360
ref: 27010
SWITCH,OIL PRESSURE
270101360
€ 29.50
32099
320995003
ref: 32099
CASE
€ 77.00
39193
391931071
ref: 39193
PIPE-OIL
€ 87.50
39193A
391931072
ref: 39193A
PIPE-OIL
€ 87.50
41077
410770011
ref: 41077
ADAPTER
€ 36.00
51044
510440011
ref: 51044
TUBE-ASSY,FR
€ 163.00
51044A
510440012
ref: 51044A
TUBE-ASSY,RR
€ 163.00
56033
560330070
ref: 56033
LABEL-MANUAL
€ 3.00
92022
920221547
ref: 92022
WASHER,20.1X28X1
920221547
€ 2.50
92022A
920221852
ref: 92022A
WASHER,12X27.5X1.0
920221852
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920550068
ref: 92055
RING-O,59.6X2.4
920550068
€ 4.00
92055A
920551209
ref: 92055A
RING-O
920551209
€ 2.50
92055B
920551358
ref: 92055B
RING-O
920551358
€ 4.50
92055C
920551373
ref: 92055C
RING-O,13.2X2.4
920551373
€ 3.00
92062
920621078
ref: 92062
NOZZLE
920621078
€ 3.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.50
92144
921441106
ref: 92144
SPRING
921441106
€ 4.00
92150
921501868
ref: 92150
BOLT,6X12
921501868
€ 2.00
92151
921511355
ref: 92151
BOLT, BANJO
921511355
€ 9.00
99999
999990032
ref: 99999
KIT.,OIL FILTER
999990032
€ 15.00
