CRANKCASE BOLT PATTERN (A1/A2)

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

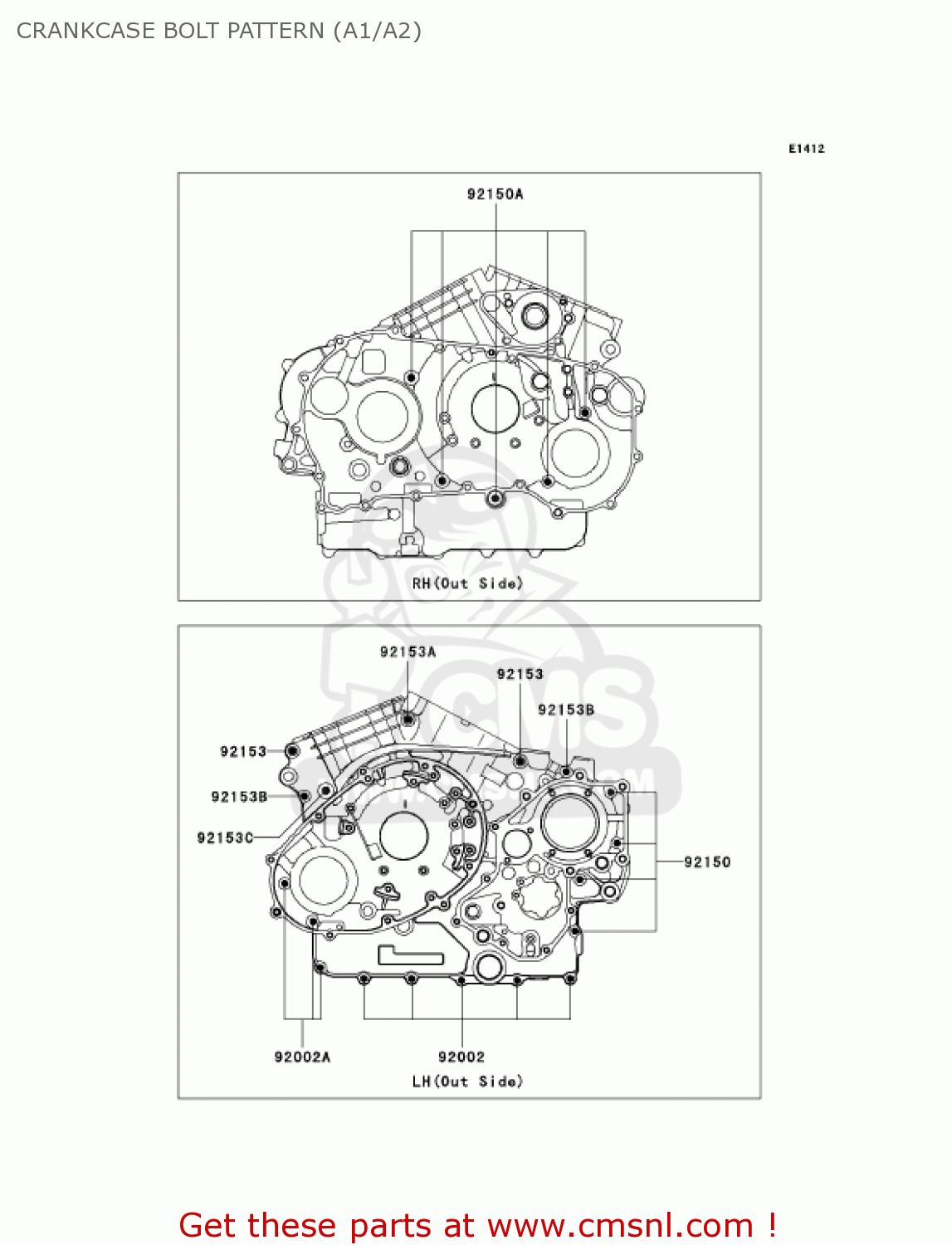

Crankcase bolt pattern (a1/a2) diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92002

920021566
ref: 92002

BOLT,6X40

€ 3.00

92002A

920021568
ref: 92002A

BOLT,6X80

€ 4.00

92150

921501995
ref: 92150

BOLT,6X70

€ 2.00

92150A

921501996
ref: 92150A

BOLT,8X90

€ 3.00

92153

921530016
ref: 92153

BOLT,10X105

€ 8.50

92153A

921530017
ref: 92153A

BOLT,10X115

€ 9.50

92153B

921530018
ref: 92153B

BOLT,FLANGED,6X70

€ 2.50

92153C

921530019
ref: 92153C

BOLT,FLANGED,8X90

€ 3.00
