ENGINE MOUNT (A1/A2)

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

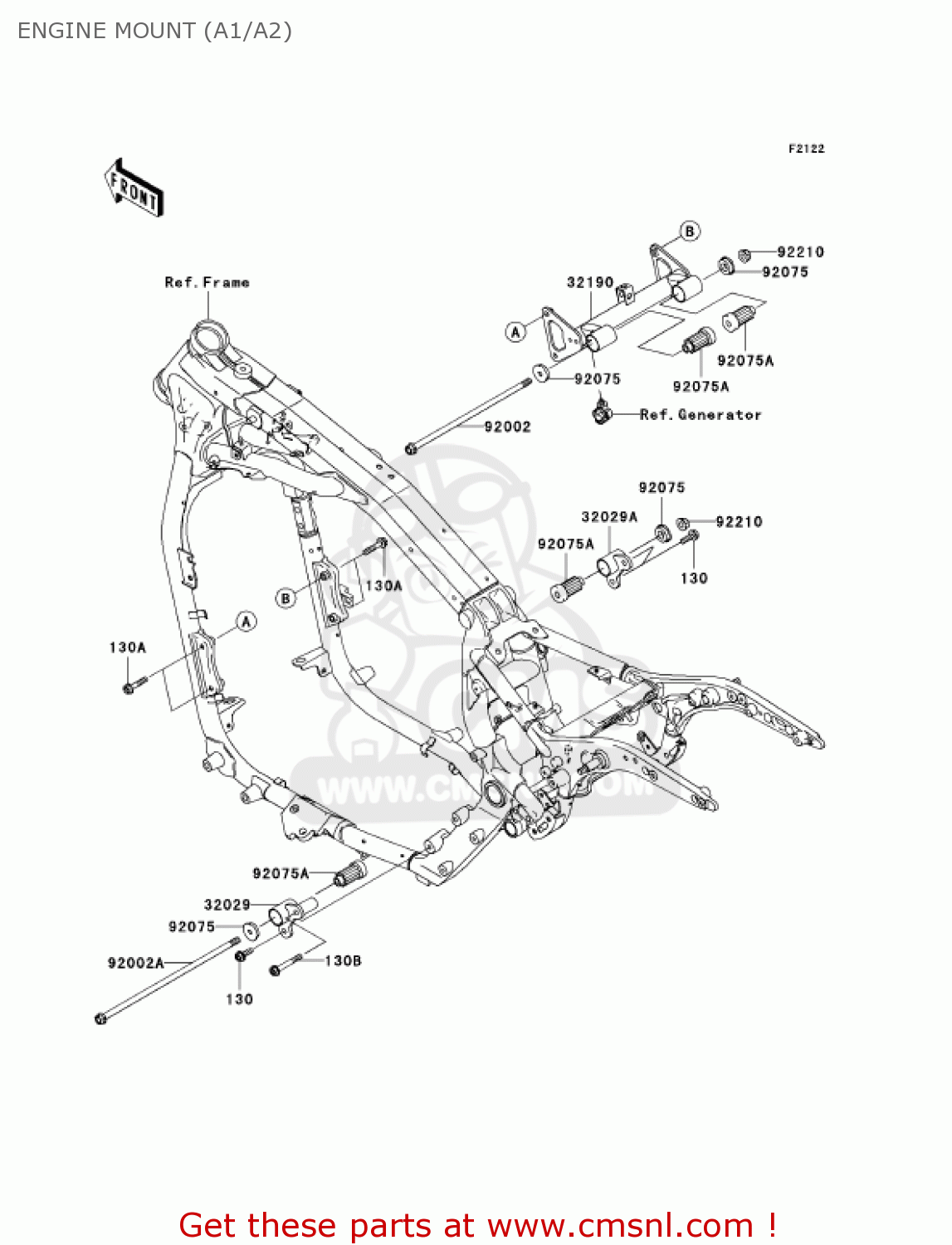

Engine mount (a1/a2) diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

130A

130J0840
ref: 130A

BOLT-FLANGED,8X40

€ 3.00

130B

130J0860
ref: 130B

BOLT-FLANGED

€ 2.50

32029

320291986
ref: 32029

BRACKET-ENGINE,RR,LH

€ 44.50

32029A

320291987
ref: 32029A

BRACKET-ENGINE,RR,RH

€ 35.00

32190

321900022
ref: 32190

BRACKET-ENGINE,FR

€ 142.50

92002

920021206
ref: 92002

BOLT,10X285

€ 16.50

92002A

920021540
ref: 92002A

BOLT,FLANGED,10X330

€ 16.00

92075

920751738
ref: 92075

DAMPER,ENGINE BRACKET

€ 16.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50

92210

922101081
ref: 92210

NUT

€ 8.50

ENGINE MOUNT (A1/A2)

all assemblies
