FRONT BRAKE

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

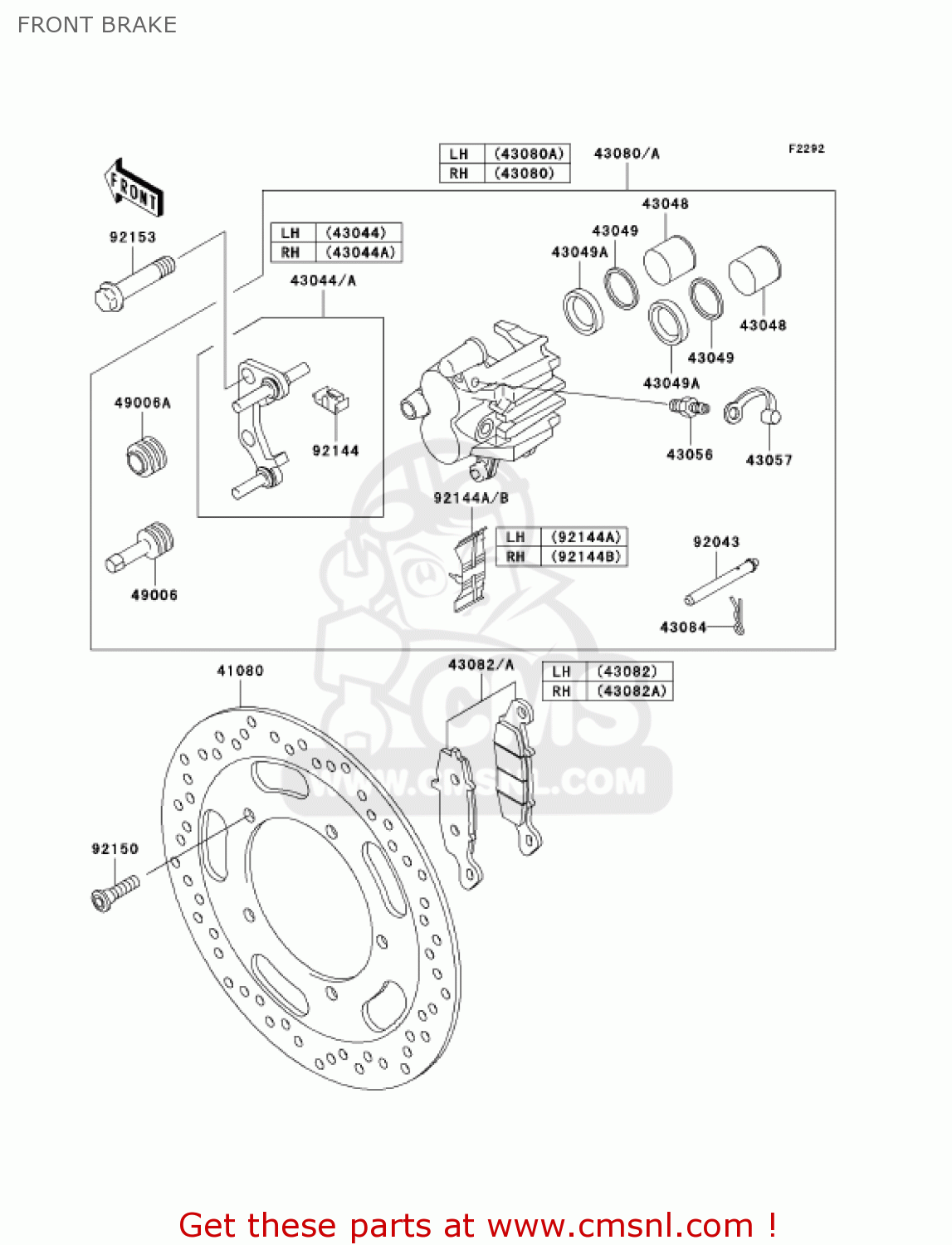

Front brake diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

FRONT BRAKE VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
FRONT BRAKE VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
FRONT BRAKE VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
41080
410801530CM
ref: 41080
DISC,FR,SILVER
€ 254.50
43044
430441115
ref: 43044
HOLDER-COMP-CALIPER
430441115
€ 128.00
43044A
430441116
ref: 43044A
HOLDER-COMP-CALIPER,F
€ 124.00
43048
430481073
ref: 43048
PISTON-CALIPER
430481073
€ 47.50
43049
430491068
ref: 43049
PACKING (NAS)
430491068
€ 6.50
43049A
430491092
ref: 43049A
PACKING (NAS)
430491092
€ 7.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43080
430805015GN
ref: 43080
CALIPER-SUB-ASSY,FR,R
€ 364.00
43080A
430805017GN
ref: 43080A
CALIPER-SUB-ASSY,FR,L
€ 376.00
43082
430821282
ref: 43082
PAD-ASSY-BRAKE,LH (NAS)
430821282
€ 59.00
43082A
430821283
ref: 43082A
PAD-ASSY-BRAKE,RH (NAS)
€ 59.00
43084
43084003
ref: 43084
CLIP, PAD
43084003
€ 2.50
49006
490061054
ref: 49006
BOOT,CALIPER
490061054
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
490061095
€ 4.50
92043
920431489
ref: 92043
PIN,PAD
920431489
€ 4.50
92144
921441831
ref: 92144
SPRING,STOPPER
921441831
€ 3.50
92144A
921441832
ref: 92144A
SPRING,PAD
921441832
€ 17.50
92144B
921441844
ref: 92144B
SPRING,PAD,RH
921441844
€ 7.00
92150
921501771
ref: 92150
BOLT
921501771
€ 3.00
92153
921530740
ref: 92153
BOLT,FLANGED,10X47
921530740
€ 4.50
