FRONT WHEEL

VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

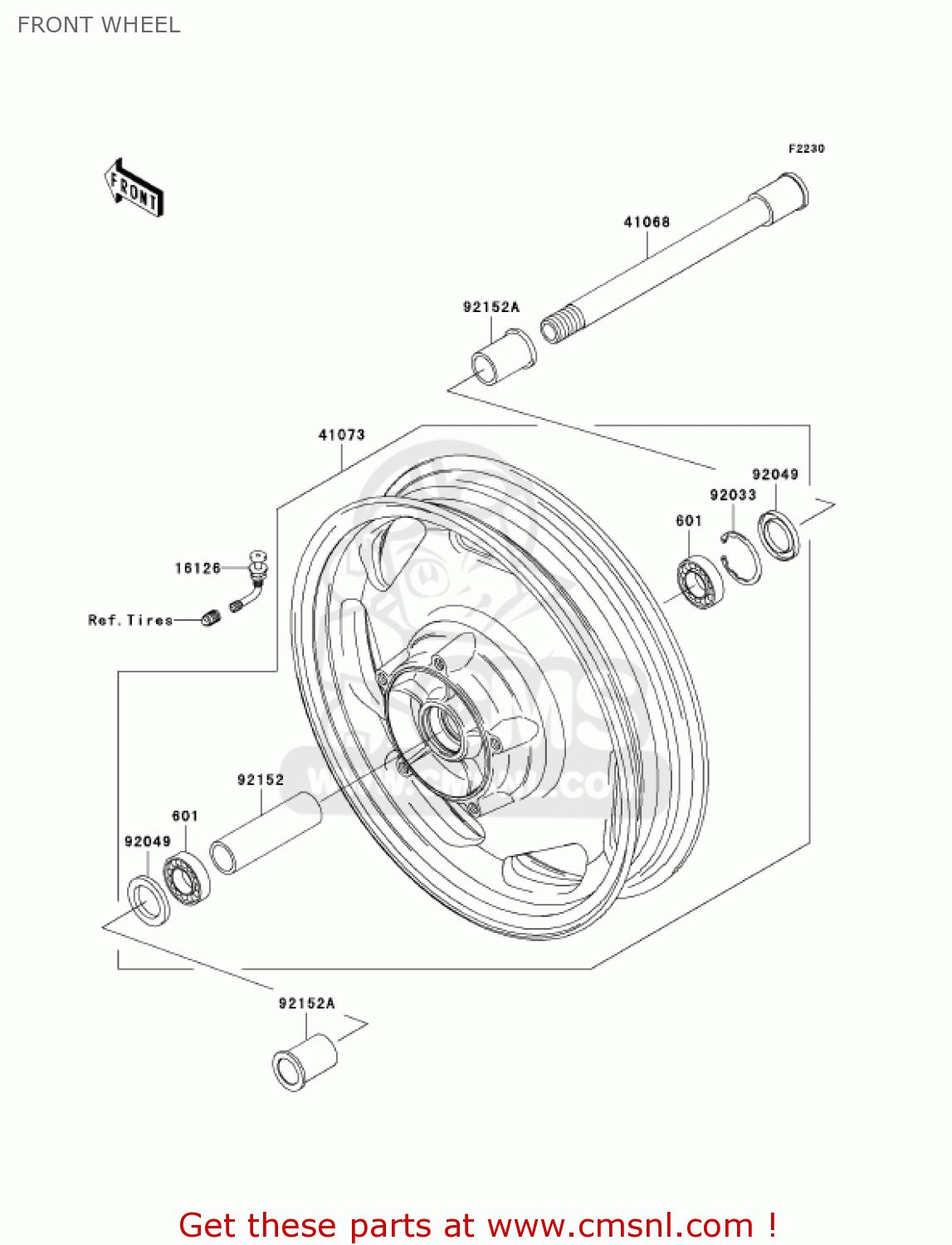

Front wheel diagram VN1600A1 VULCAN 1600 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6005UU
ref: 601

BEARING-BALL,#6005UU

€ 26.00

16126

161261365
ref: 16126

VALVE

€ 17.50

41068

410681465
ref: 41068

AXLE,FR

€ 68.50

41073

410731690
ref: 41073

WHEEL-ASSY,FR

€ 941.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049

920491377
ref: 92049

SEAL-OIL,BJN 32 47 5

€ 9.50

92152

921521308
ref: 92152

COLLAR,FR HUB,L=109

€ 21.50

92152A

921521492
ref: 92152A

COLLAR,FR HUB,L=46.5

€ 24.00
