TAILLIGHT(S)

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

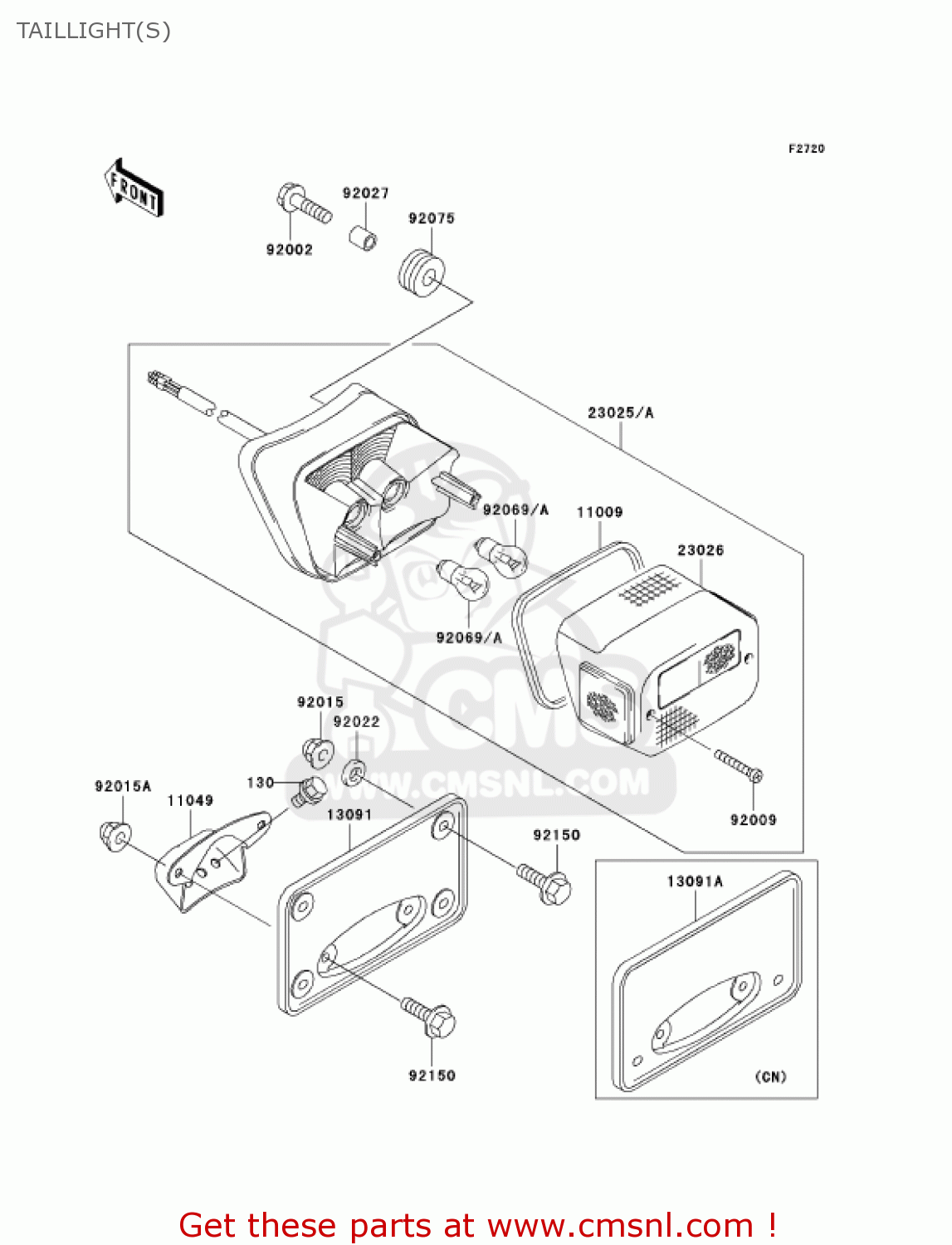

Taillight(s) diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130V0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

11009

110091660
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 5.50

11049

110491604
ref: 11049

BRACKET, LICENSE PLAT

€ 55.00

13091

130911500
ref: 13091

HOLDER,LICENSE PLATE

€ 16.00

23025A

230251295
ref: 23025A

LAMP-TAIL

€ 252.00

23026

230261087
ref: 23026

LENS,TAIL LAMP

€ 64.50

92002

920021262
ref: 92002

BOLT,6X22

€ 2.00

92009

920091378
ref: 92009

SCREW,TAPPING,4X20

€ 2.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92015A

920151385
ref: 92015A

NUT,CAP,6MM

€ 2.50

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069A

92069063
ref: 92069A

BULB 12V 21/5W

€ 4.50

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50

TAILLIGHT(S)

all assemblies
