STAND(S)

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

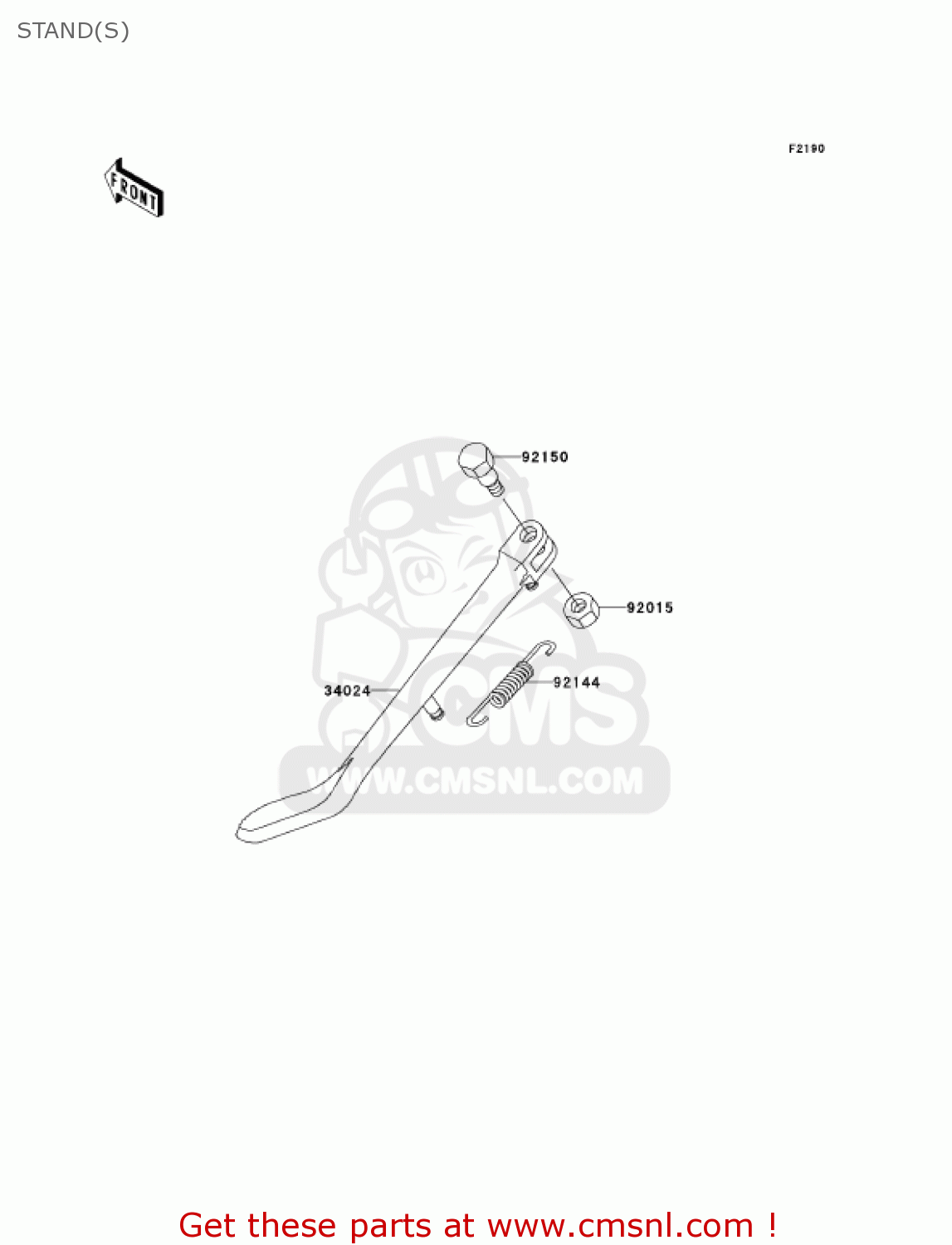

Stand(s) diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

STAND(S) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

STAND(S) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

34024

340241330
ref: 34024

STAND-SIDE

€ 129.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92144

921441927
ref: 92144

SPRING,SIDE STAND

€ 15.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
