CRANKCASE (VN1500-E2-E4)

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

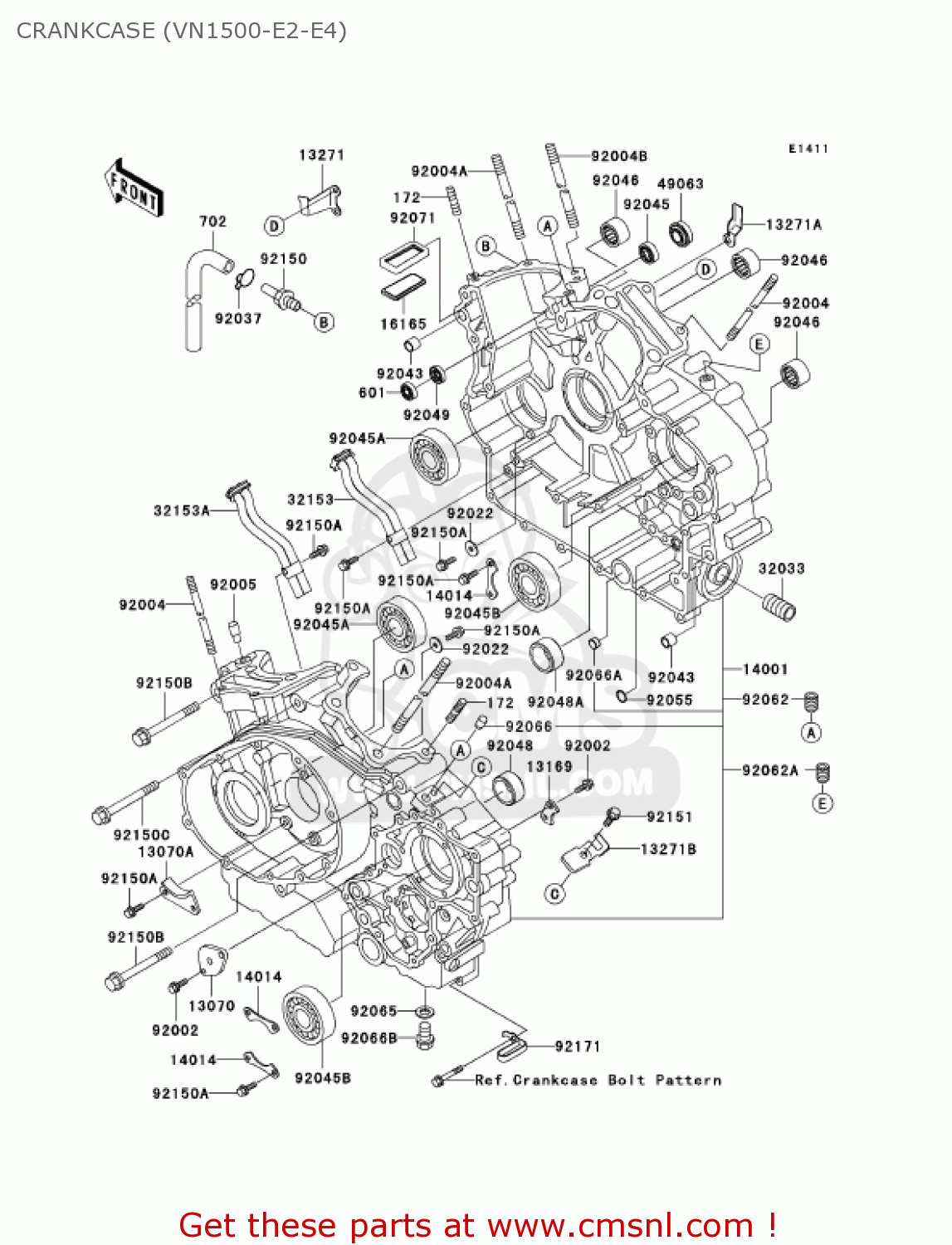

Crankcase (vn1500-e2-e4) diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

CRANKCASE (VN1500-E2-E4) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
CRANKCASE (VN1500-E2-E4) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
CRANKCASE (VN1500-E2-E4) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13070
130701167
ref: 13070
GUIDE,PUSH ROD
130701167
€ 14.50
13070A
130701168
ref: 13070A
GUIDE,CAM CHAIN
130701168
€ 3.50
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
13169014
€ 3.00
13271
132711290
ref: 13271
PLATE
€ 3.00
13271A
132711291
ref: 13271A
PLATE
€ 4.50
13271B
132711448
ref: 13271B
PLATE
€ 3.50
14001
140015374
ref: 14001
SET-CRANKCASE
€ 2,849.00
14014
140141084
ref: 14014
PLATE-POSITION
140141084
€ 4.00
16165
161651058
ref: 16165
SEPARATOR
161651058
€ 18.00
32033
320331535
ref: 32033
PIPE
320331535
€ 9.00
32153
321531262
ref: 32153
PIPE
€ 29.50
32153A
321531263
ref: 32153A
PIPE,LH CRANKCASE
€ 31.00
49063
490631057
ref: 49063
SEAL-MECHANICAL
490631057
€ 32.50
92002
920021439
ref: 92002
BOLT,6X16
920021439
€ 3.00
92004
920041174
ref: 92004
STUD,8X231
€ 8.50
92004A
920041225
ref: 92004A
STUD,12X250
920041225
€ 21.50
92004B
920041240
ref: 92004B
STUD,12X250
920041240
€ 21.50
92005
920051155
ref: 92005
FITTING
€ 5.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92037
920371835
ref: 92037
CLAMP
€ 3.00
92043
920431266
ref: 92043
PIN,11X14X12.3
920431266
€ 1.00
92045
920451151
ref: 92045
BEARING-BALL,6001JRXL
920451151
€ 26.00
92045A
920451189
ref: 92045A
BEARING-BALL,63/28
€ 50.50
92045B
920451190
ref: 92045B
BEARING-BALL,6306SH2
920451190
€ 44.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
920461163
€ 13.50
92048
920481069
ref: 92048
RACE
920481069
€ 29.00
92048A
920481103
ref: 92048A
RACE
920481103
€ 23.00
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
920491228
€ 7.00
92055
920551373
ref: 92055
RING-O,13.2X2.4
920551373
€ 3.00
92062
920621078
ref: 92062
NOZZLE
920621078
€ 3.00
92062A
920621089
ref: 92062A
NOZZLE
€ 5.00
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92066A
920661110
ref: 92066A
PLUG
920661110
€ 4.00
92066B
920661174
ref: 92066B
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
92071
920711153
ref: 92071
GROMMET,SEPARATOR
€ 5.50
92150
921501161
ref: 92150
BOLT
921501161
€ 6.00
92150A
921501868
ref: 92150A
BOLT,6X12
921501868
€ 2.00
92150B
921501993
ref: 92150B
BOLT,10X105
€ 8.00
92150C
921501994
ref: 92150C
BOLT,10X115
€ 8.00
172
172G0825
ref: 172
STUD,8X25
€ 3.50
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
702
702A04330
ref: 702
TUBE-RUBBER,4X330
702A04330
€ 7.50
92151
921511416
ref: 92151
BOLT,6X8
€ 1.50
92171
921711273
ref: 92171
CLAMP
€ 5.00
