BRAKE PEDAL/TORQUE LINK

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

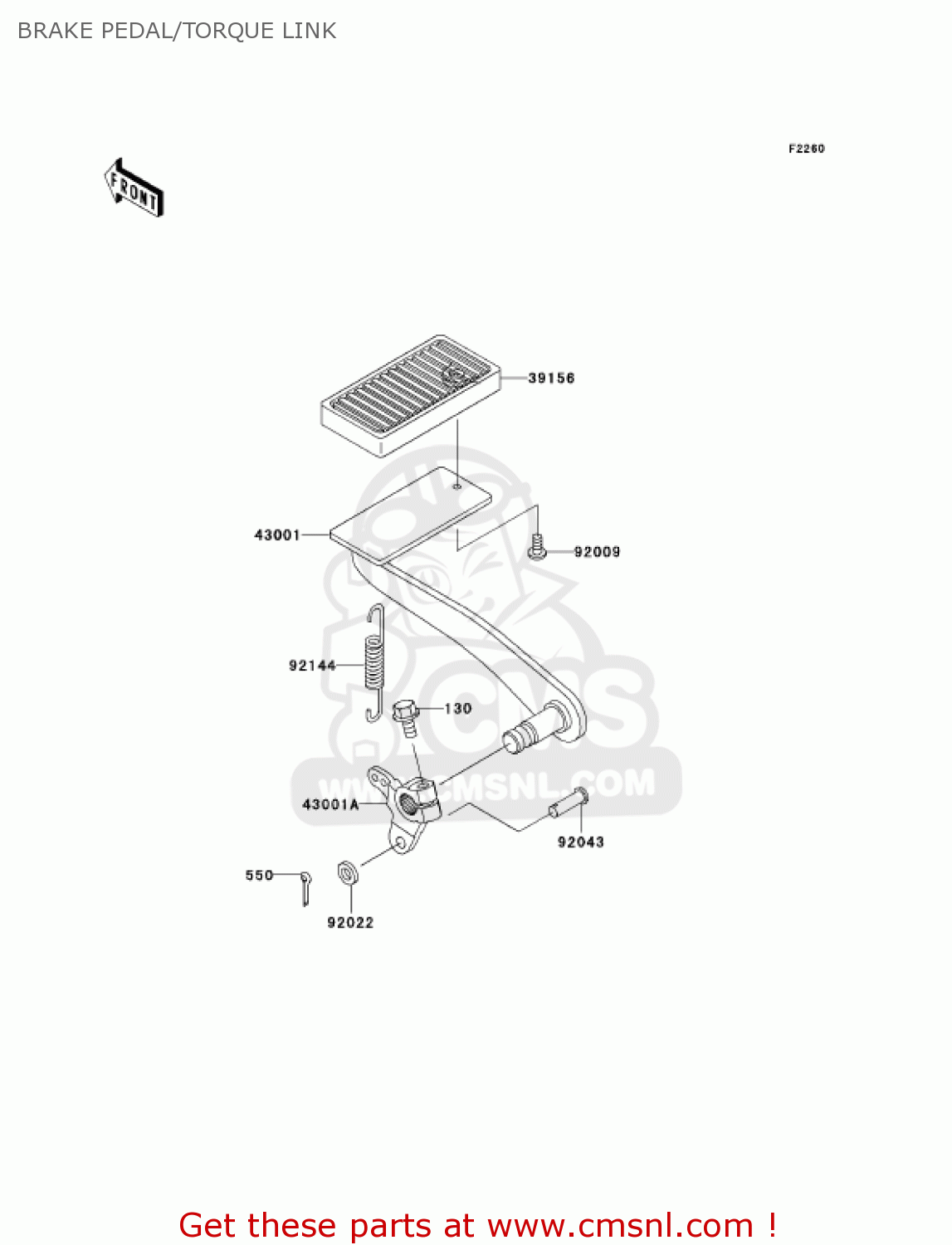

Brake pedal/torque link diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

39156

391561540
ref: 39156

PAD,BRAKE PEDAL

€ 10.50

43001

430011367
ref: 43001

LEVER-BRAKE,PEDAL

€ 75.50

43001A

430011368
ref: 43001A

LEVER-BRAKE

€ 24.50

92009

920091677
ref: 92009

SCREW,6X8,BLACK

€ 2.50

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92043

920431013
ref: 92043

PIN

€ 6.50

92144

921441169
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.50
