IGNITION SWITCH/LOCKS/REFLECTORS

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

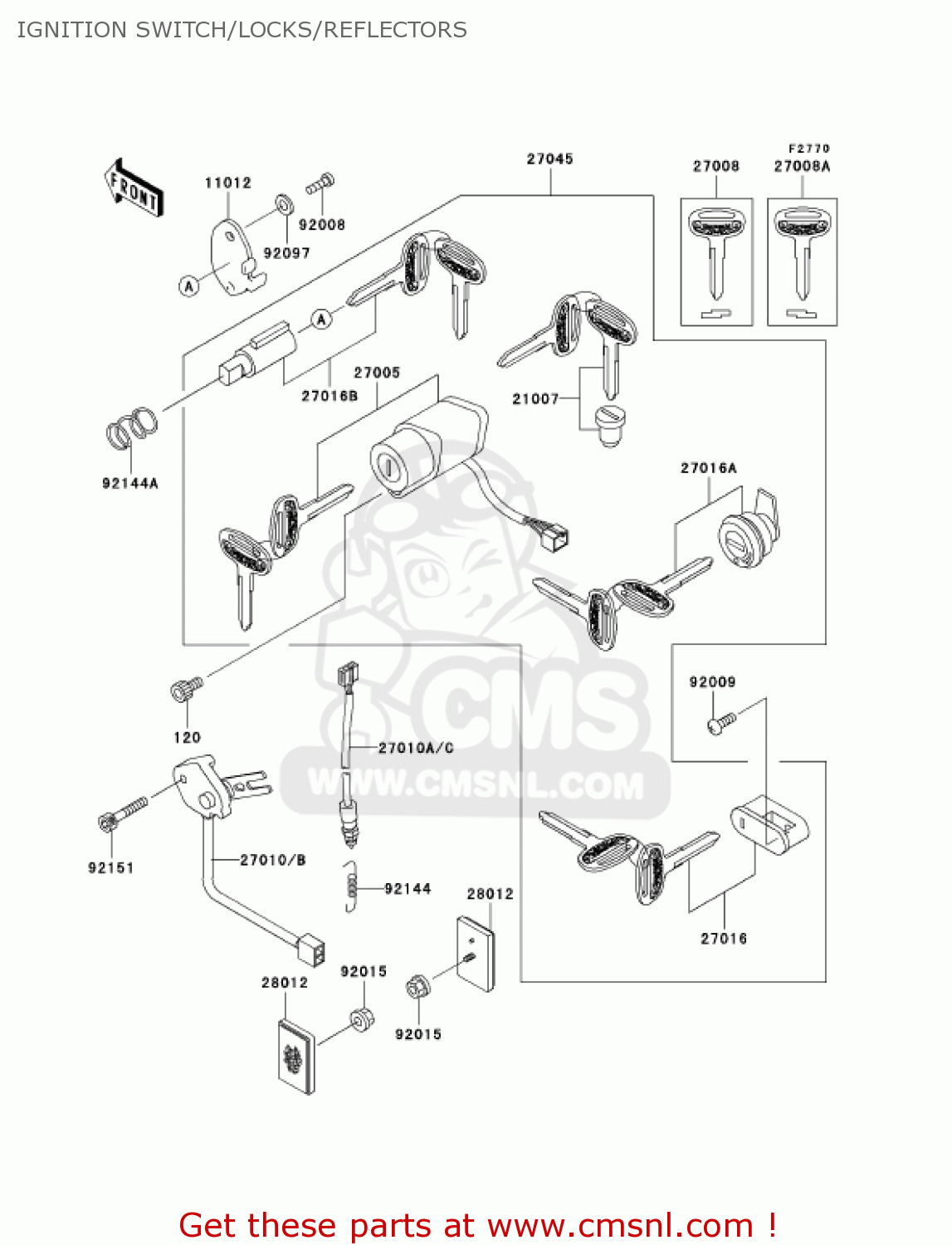

Ignition switch/locks/reflectors diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

IGNITION SWITCH/LOCKS/REFLECTORS VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
IGNITION SWITCH/LOCKS/REFLECTORS VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
IGNITION SWITCH/LOCKS/REFLECTORS VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
11012
110121586
ref: 11012
CAP,STEERING LOCK
110121586
€ 5.00
21007
210075041
ref: 21007
SWITCH-ASSY, TANK CAP
€ 50.50
27005
270051215
ref: 27005
SWITCH-ASSY-IGNITION
270051215
€ 249.00
27008
270081179
ref: 27008
(OPTION)
KEY-LOCK,BLANK,#A
270081179
€ 20.00
27008A
270081180
ref: 27008A
(OPTION)
KEY-LOCK,BLANK,#B
270081180
€ 22.00
27010
270101359
ref: 27010
SWITCH,SIDE STAND
€ 54.00
27010A
270101370
ref: 27010A
SWITCH,REAR BRAKE
270101370
€ 25.50
27016
270165243
ref: 27016
LOCK-ASSY, HELMET
€ 58.00
27016A
270165244
ref: 27016A
LOCK,ASSY, PAD
€ 54.00
27016B
270165246
ref: 27016B
STEERING LOCK ASSEMBLY
€ 66.50
27045
270455087
ref: 27045
SWITCH ASSEMBLY
€ 317.00
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
92008
92008007
ref: 92008
SCREW-TAPPING
92008007
€ 2.50
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92015
920151656
ref: 92015
NUT,FLANGED,5MM
920151656
€ 2.00
92097
92097003
ref: 92097
WASHER
92097003
€ 2.50
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92144A
921441222
ref: 92144A
SPRING,STEERING LOCK
921441222
€ 2.50
92151
921511390
ref: 92151
BOLT,SOCKET,6X35
€ 1.50
