FENDERS (VN1500-E2-E4)

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

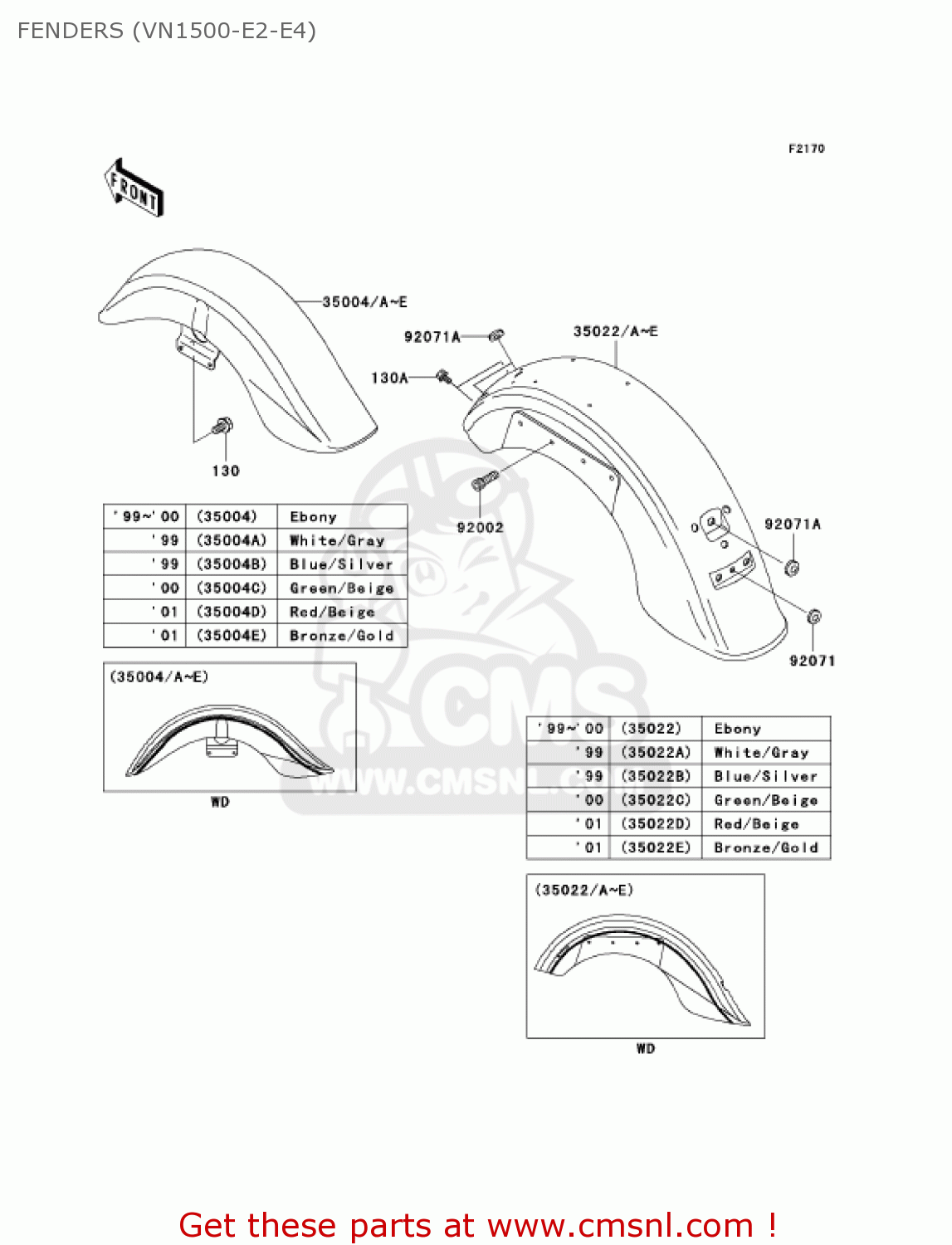

Fenders (vn1500-e2-e4) diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

FENDERS (VN1500-E2-E4) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

FENDERS (VN1500-E2-E4) VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

35004D

350045183SI
ref: 35004D

FENDER-FRONT,RED/BEIG

€ 286.50

35004E

350045184XI
ref: 35004E

FENDER-FRONT,BRONZE/G

€ 286.50

35022D

350225085SI
ref: 35022D

FENDER-COMP-REAR,RED/

€ 413.00

35022E

350225086XI
ref: 35022E

FENDER-COMP-REAR,BRON

€ 413.00

130

130J0814
ref: 130

BOLT-FLANGED,8X14

€ 2.50

130A

130J0816
ref: 130A

BOLT-FLANGED,8X16,BLA

€ 0.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

92071099
ref: 92071A

GROMMET, REAR FENDER

€ 3.00
