Genuine VN Kawasaki Parts delivered quickly!


FRONT FORK

VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

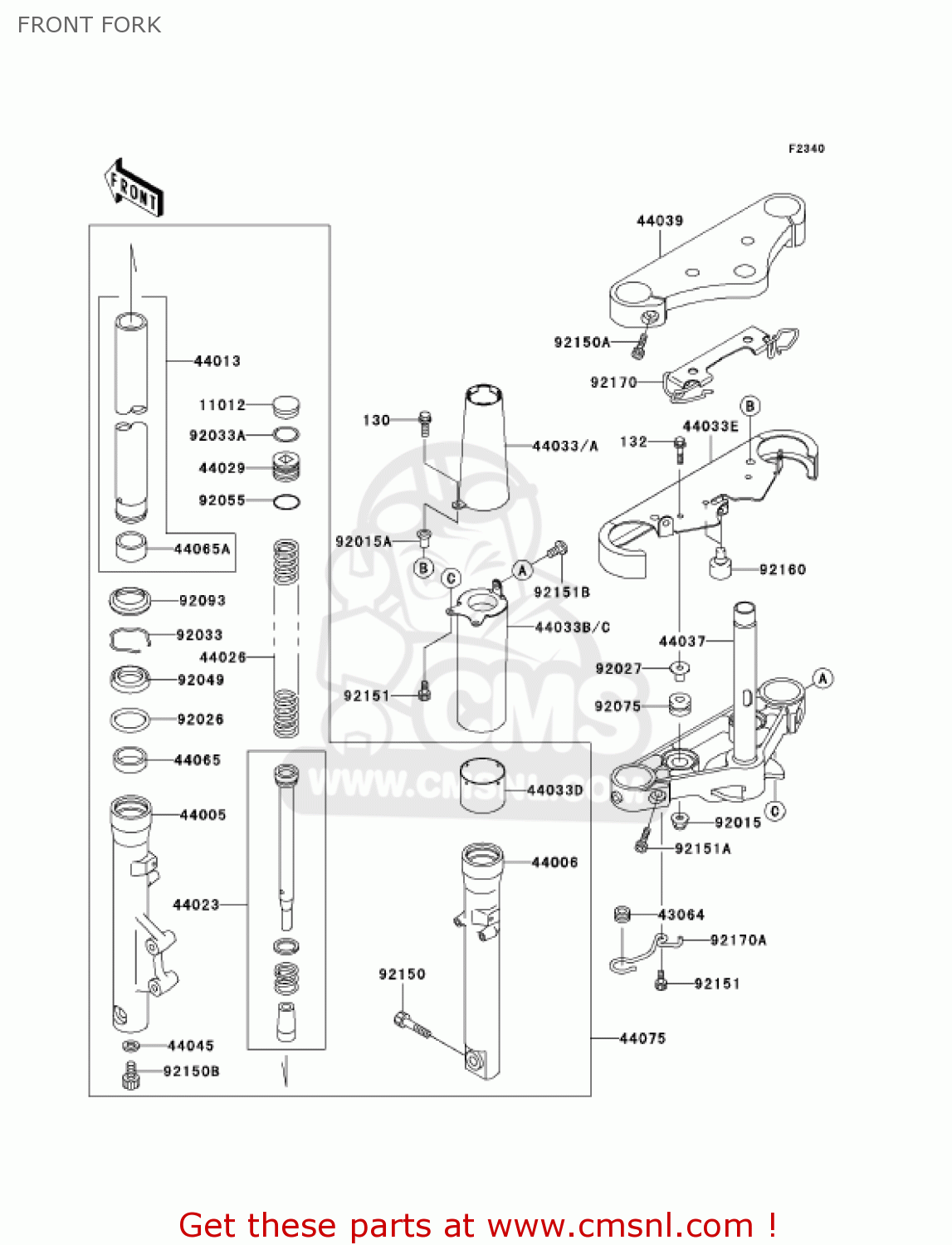

Front fork diagram VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA

FRONT FORK VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
FRONT FORK VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
FRONT FORK VN1500E4 VULCAN 1500 CLASSIC 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130J0516
ref: 130
BOLT-FLANGED
€ 1.50
11012
110121618
ref: 11012
CAP,FORK TOP
110121618
€ 10.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
44005
440051366
ref: 44005
PIPE-LEFT FORK OUTER
440051366
€ 385.50
44006
440061365
ref: 44006
PIPE-RIGHT FORK OUTER
440061365
€ 309.00
44013
440131462
ref: 44013
PIPE-FORK INNER
€ 253.50
44023
440231133
ref: 44023
CYLINDER-SET-FORK
€ 112.00
44026
440261693
ref: 44026
SPRING-FRONT FORK
€ 81.50
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331215
ref: 44033
COVER-FORK,UPP,LH
440331215
€ 69.50
44033A
440331216
ref: 44033A
COVER-FORK,UPP,RH
440331216
€ 56.00
44033B
440331221
ref: 44033B
COVER-FORK,UNDER,LH
440331221
€ 140.50
44033C
440331222
ref: 44033C
COVER-FORK,UNDER,RH
440331222
€ 140.50
44033D
440331223
ref: 44033D
COVER-FORK
440331223
€ 12.00
44033E
440331235
ref: 44033E
COVER-FORK,LWR
440331235
€ 153.50
44037
440371344
ref: 44037
HOLDER-FORK UNDER
€ 292.50
44039
440391260
ref: 44039
HOLDER-FORK UPPER
440391260
€ 262.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
440651079
€ 16.00
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
440651087
€ 19.00
44075
440751095
ref: 44075
DAMPER-SET-FORK
€ 1,583.50
92015
920151385
ref: 92015
NUT,CAP,6MM
920151385
€ 2.50
92015A
920151757A
ref: 92015A
NUT,5MM
920151757A
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92027
920271847
ref: 92027
COLLAR,6=16.1
920271847
€ 4.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
920491363
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92075
920751035
ref: 92075
DAMPER RUBBER
920751035
€ 3.50
92093
920931268
ref: 92093
SEAL,FORK
920931268
€ 16.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
921501029
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
921501031
€ 6.00
92150B
921501432
ref: 92150B
BOLT
921501432
€ 6.50
92151
921511068
ref: 92151
BOLT,SOCKET,6X14
921511068
€ 2.50
92151A
921511083
ref: 92151A
BOLT
921511083
€ 6.00
92151B
921511097
ref: 92151B
BOLT
921511097
€ 2.00
92160
921601555
ref: 92160
DAMPER
921601555
€ 4.50
92170
921701655
ref: 92170
CLAMP,CABLE
€ 55.50
92170A
921701658
ref: 92170A
CLAMP,CABLE
921701658
€ 10.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
132E0630
€ 3.00
