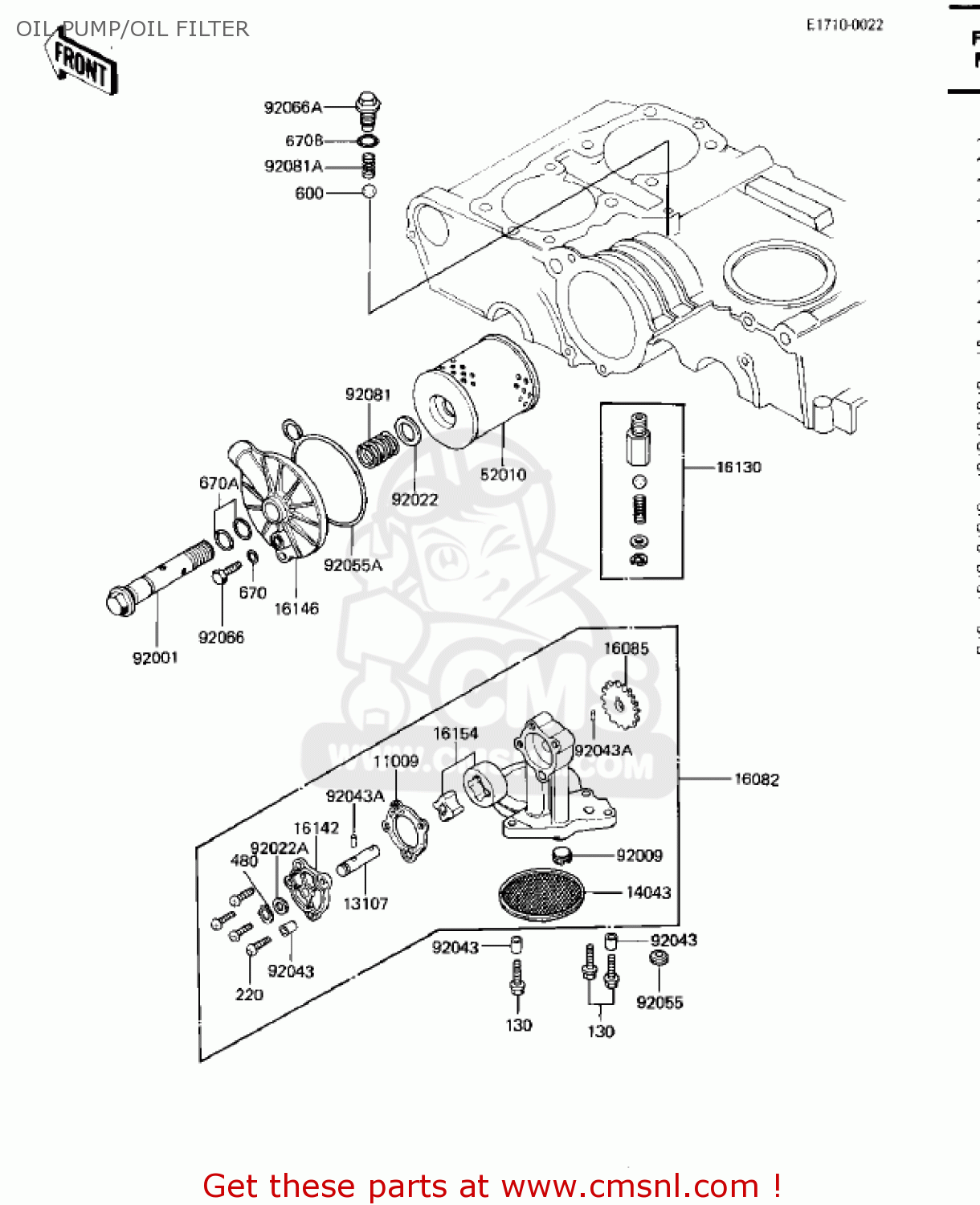

OIL PUMP/OIL FILTER

ref

part #

description

quantity

11009

16145003
ref: 11009

GASKET,OIL PUMP (MCA)

€ 2.50

13107

16086004
ref: 13107

SHAFT,OIL PUMP

€ 17.00

14043

16111004
ref: 14043

FILTER,OIL PUMP

€ 23.50

16082

16082062
ref: 16082

OIL PUMP ASSY

€ 227.00

16085

16085024
ref: 16085

GEAR,OIL PUMP

€ 37.50

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

16142004
ref: 16142

COVER,OIL PUMP

€ 22.00

16146

16146002
ref: 16146

COVER,OIL FILTER

€ 19.50

16154

16154003
ref: 16154

ROTOR-PUMP

€ 47.50

52010

16099002
ref: 52010

ELEMENT-OIL FILTER

€ 13.00

92001

92003189
ref: 92001

BOLT,OIL FILTER

€ 58.50

92009

92013008
ref: 92009

SCREW,SLOTTED

€ 2.00

92022

920221012
ref: 92022

WASHER,20.5X30X1

€ 3.00

92022A

92022311
ref: 92022A

WASHER,PLAIN

€ 2.50

92043

920431302
ref: 92043

PIN,DOWEL,8X10

€ 1.00

92043A

92042041
ref: 92043A

PIN,DOWEL

€ 4.50

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92055A

92055084
ref: 92055A

RING-O

€ 15.50

92066

92066024
ref: 92066

PLUG,30X8

€ 8.00

92066A

92066050
ref: 92066A

PLUG,FILTER COVER

€ 3.50

92081

920811018
ref: 92081

SPRING,OIL FILTER

€ 3.00

92081A

92081109
ref: 92081A

SPRING

€ 7.50

130

130G0640
ref: 130

BOLT,FLANGED,6X40

€ 0.50

220

220B0622
ref: 220

SCREW-PAN HEAD,6X22

€ 2.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

670

670B1508
ref: 670

O RING,8MM

€ 1.00

670A

670B2016
ref: 670A

O RING,16MM

€ 1.00

670B

670B2018
ref: 670B

O RING,18MM

€ 1.00

all assemblies
