FRAME FITTINGS
KZ750M1 CSR TWIN 1982 USA / MPH

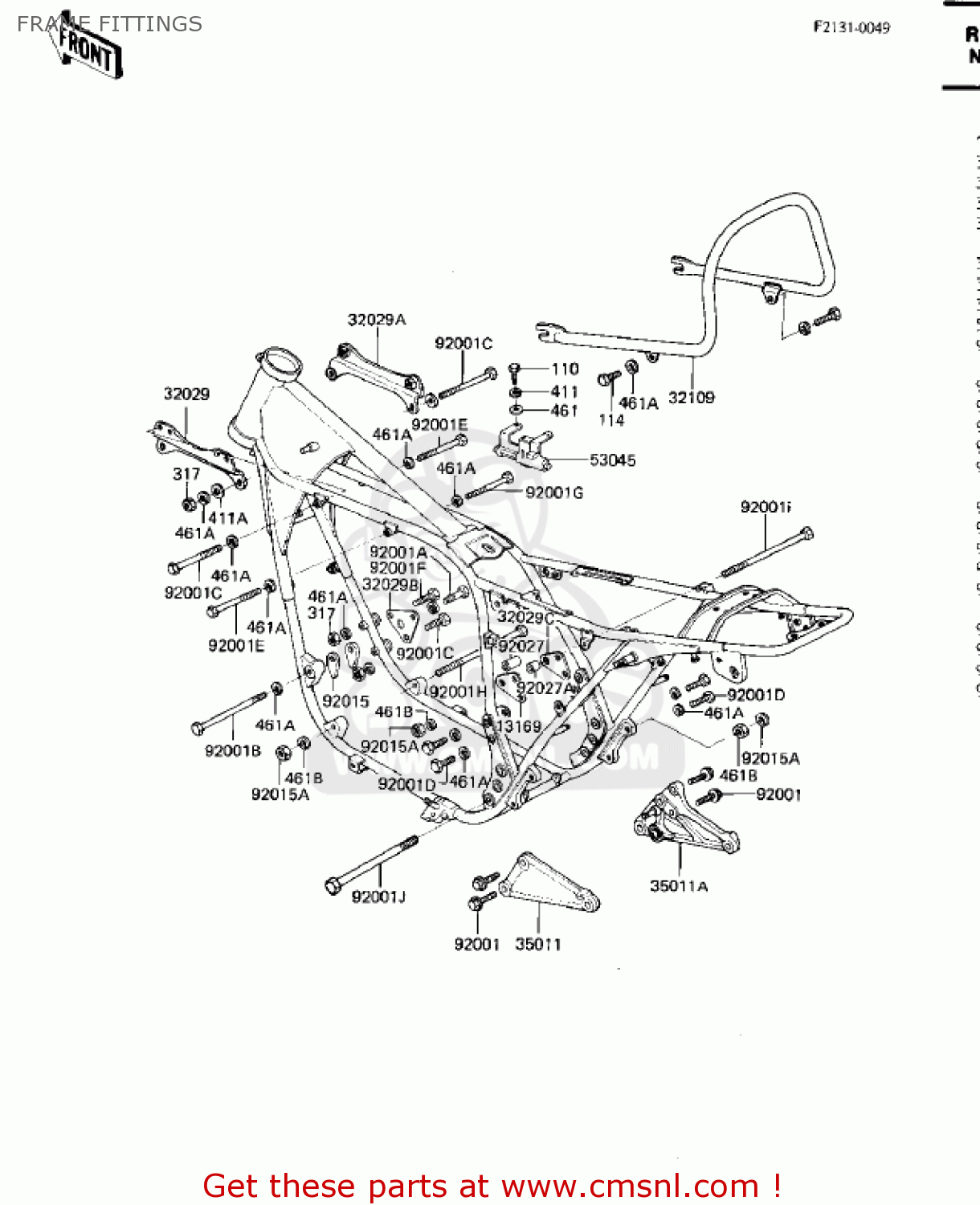

Frame fittings diagram KZ750M1 CSR TWIN 1982 USA / MPH
FRAME FITTINGS KZ750M1 CSR TWIN 1982 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
13169
131691048
ref: 13169
PLATE,REAR ENGINE
€ 9.00
32029
320291167
ref: 32029
BRACKET-ENGINE
€ 17.00
32029A
320291168
ref: 32029A
BRACKET-ENGINE
€ 17.00
32029B
32030047
ref: 32029B
PLATE,ENG FIT,FRONT
€ 7.50
32029C
32030049
ref: 32029C
PLATE,ENG FIT,RR,R.H
€ 8.50
32109
321091016
ref: 32109
GRIP,FRAME
€ 50.50
35011
350111076
ref: 35011
STAY,MUFFLER,LH
€ 106.50
35011A
350111077
ref: 35011A
STAY,MUFFLER,RH
€ 106.50
53045
530451001
ref: 53045
HOOK ASSY,HELMET
€ 31.00
92001
920011095
ref: 92001
BOLT,8X28
€ 4.50
92001A
920011254
ref: 92001A
BOLT,HEX HEAD,10X50
€ 2.50
92001B
920011618
ref: 92001B
BOLT,FLANGED,10X70
€ 7.00
92001C
920011581
ref: 92001C
BOLT,FLANGED,8X60
€ 3.50
92001D
920011577
ref: 92001D
BOLT,FLANGED,8X35
€ 2.50
92001E
920011182
ref: 92001E
BOLT,10X45
€ 6.00
92001F
920011583
ref: 92001F
BOLT,FLANGED,8X70
€ 6.00
92001G
920011398
ref: 92001G
BOLT,FLANGED 8X55
€ 2.50
92001H
920011654
ref: 92001H
BOLT,FLANGED,10X325
€ 17.50
92001I
92003185
ref: 92001I
BOLT
€ 9.00
92001J
92003186
ref: 92001J
BOLT
€ 2.50
92015
92016055
ref: 92015
NUT
€ 6.00
92015A
92019021
ref: 92015A
NUT,LOCK,10M/M
€ 2.00
92027
92027245
ref: 92027
COLLAR
€ 7.00
92027A
92027246
ref: 92027A
COLLAR
€ 9.00
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
114
115B0814
ref: 114
BOLT SMALL UPSET 8X14
€ 1.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
411A
411B0800
ref: 411A
WASHER-PLAIN,8MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
461B
461F1000
ref: 461B
WASHER-SPRING,10MM
€ 0.50
