CYLINDER HEAD COVER

KZ750M1 CSR TWIN 1982 USA / MPH

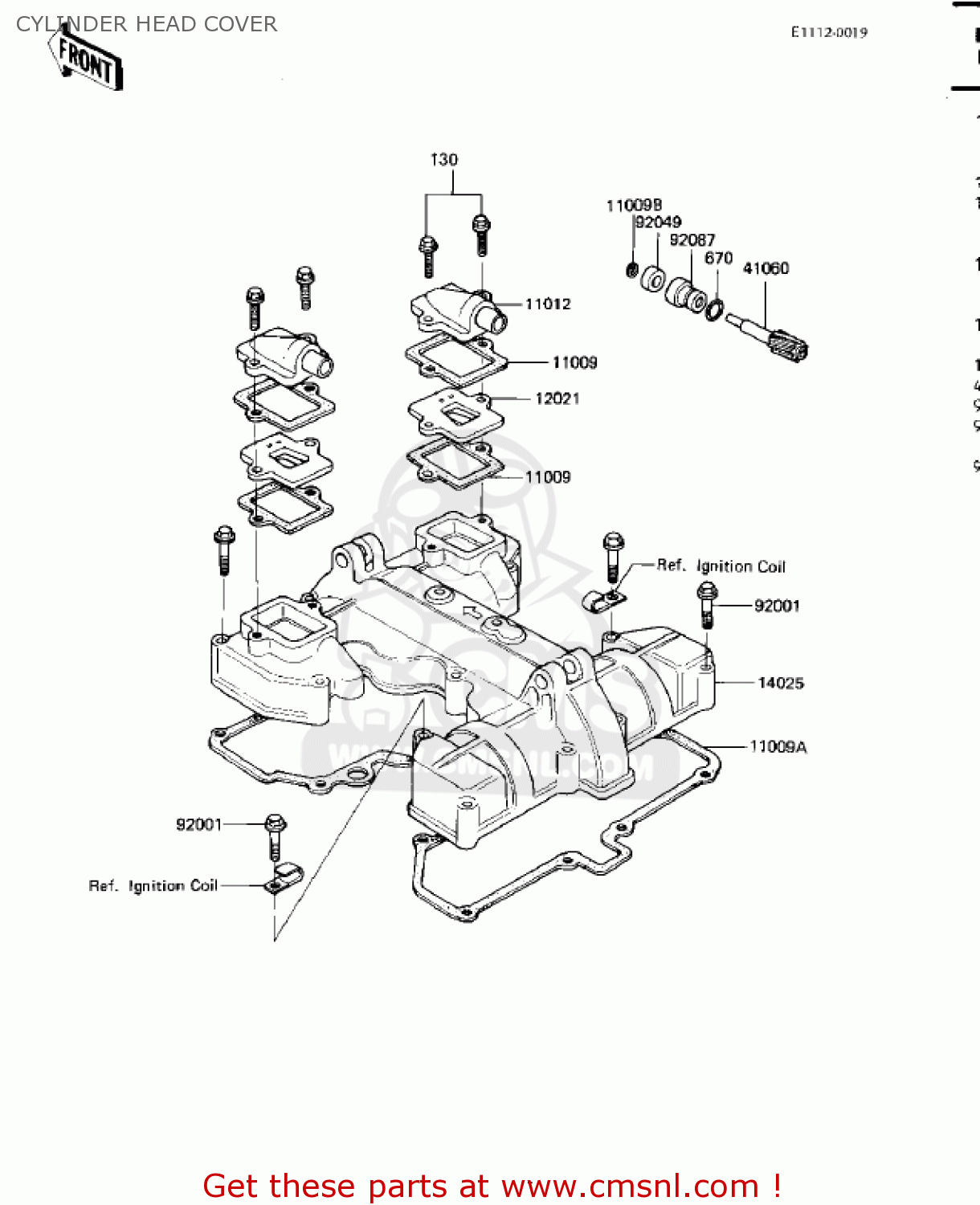

Cylinder head cover diagram KZ750M1 CSR TWIN 1982 USA / MPH

prices are in EUR

ref

part #

description

quantity

11009

110091879
ref: 11009

GASKET,REED VALVE (NAS)

€ 4.50

11009A

110091247
ref: 11009A

GASKET,CYLINDER HEAD (MCA)

€ 59.50

11009B

92065103
ref: 11009B

GASKET,TACHOMETER GER (NAS)

€ 2.50

11012

110125003
ref: 11012

REED VALVE CAP

€ 24.50

12021

120211011
ref: 12021

VALVE-ASSY-REED

€ 53.50

14025

140251333
ref: 14025

COVER,CYLINDER HEAD

€ 86.50

41060

13223013
ref: 41060

GEAR, TACHOMETER

€ 39.50

92001

92003092
ref: 92001

BOLT-HEX HEAD,6X45

€ 4.50

92049

92050075
ref: 92049

OIL SEAL,TACHOMETER

€ 7.50

92087

92087009
ref: 92087

GUIDE,TACHO GEAR

€ 8.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

670

670B1510
ref: 670

O RING,9.8X1.9

€ 2.50

CYLINDER HEAD COVER

all assemblies
