CYLINDER/PISTONS

KZ750M1 CSR TWIN 1982 USA / MPH

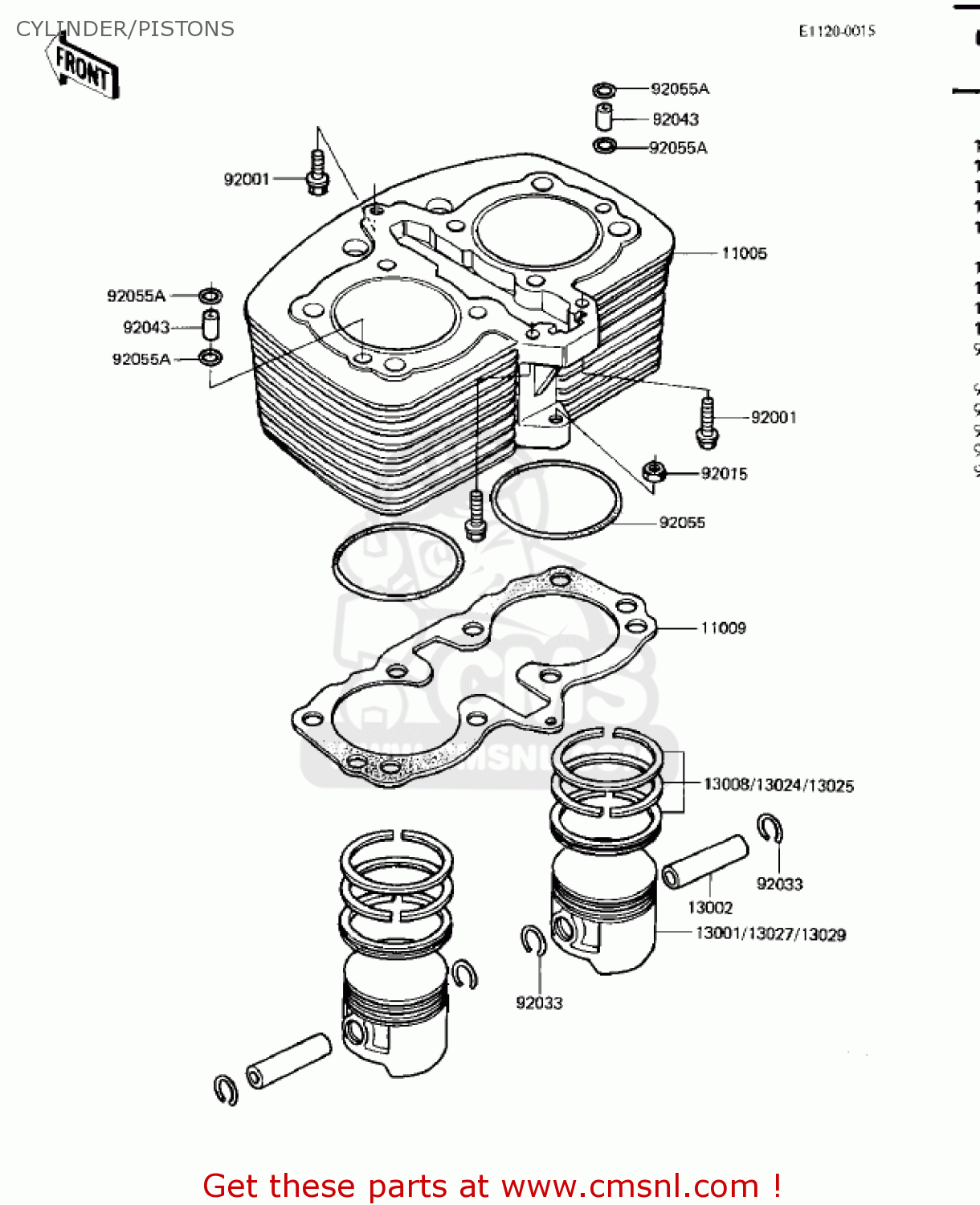

Cylinder/pistons diagram KZ750M1 CSR TWIN 1982 USA / MPH

prices are in EUR

ref

part #

description

quantity

11005

110051158
ref: 11005

CYLINDER-ENGINE

€ 880.50

11009

11009042
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 10.50

13001

130011086
ref: 13001

PISTON-ENGINE,STD

€ 50.50

13002

13002031
ref: 13002

PIN-PISTON

€ 17.50

13008

13008055
ref: 13008

RING-SET-PISTON,STD

€ 67.50

13024

13024059
ref: 13024

RING-SET-PISTON LL,O/

€ 80.00

13025

13025059
ref: 13025

RING-SET-PISTON L,O/S

€ 70.50

13027

130271038
ref: 13027

PISTON-ENGINE LL,0/S

€ 64.50

13029

130291039
ref: 13029

PISTON-ENGINE L,O/S 0

€ 70.50

92001

92003159
ref: 92001

BOLT,HEX HEAD,6X34

€ 2.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92033

92036008
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92043

92042039
ref: 92043

PIN,DOWEL

€ 3.00

92055

92055081
ref: 92055

'O' RING

€ 12.00

92055A

92055094
ref: 92055A

RING-O

€ 6.00

CYLINDER/PISTONS

all assemblies
