CARBURETOR ASSY
KZ750M1 CSR TWIN 1982 USA / MPH

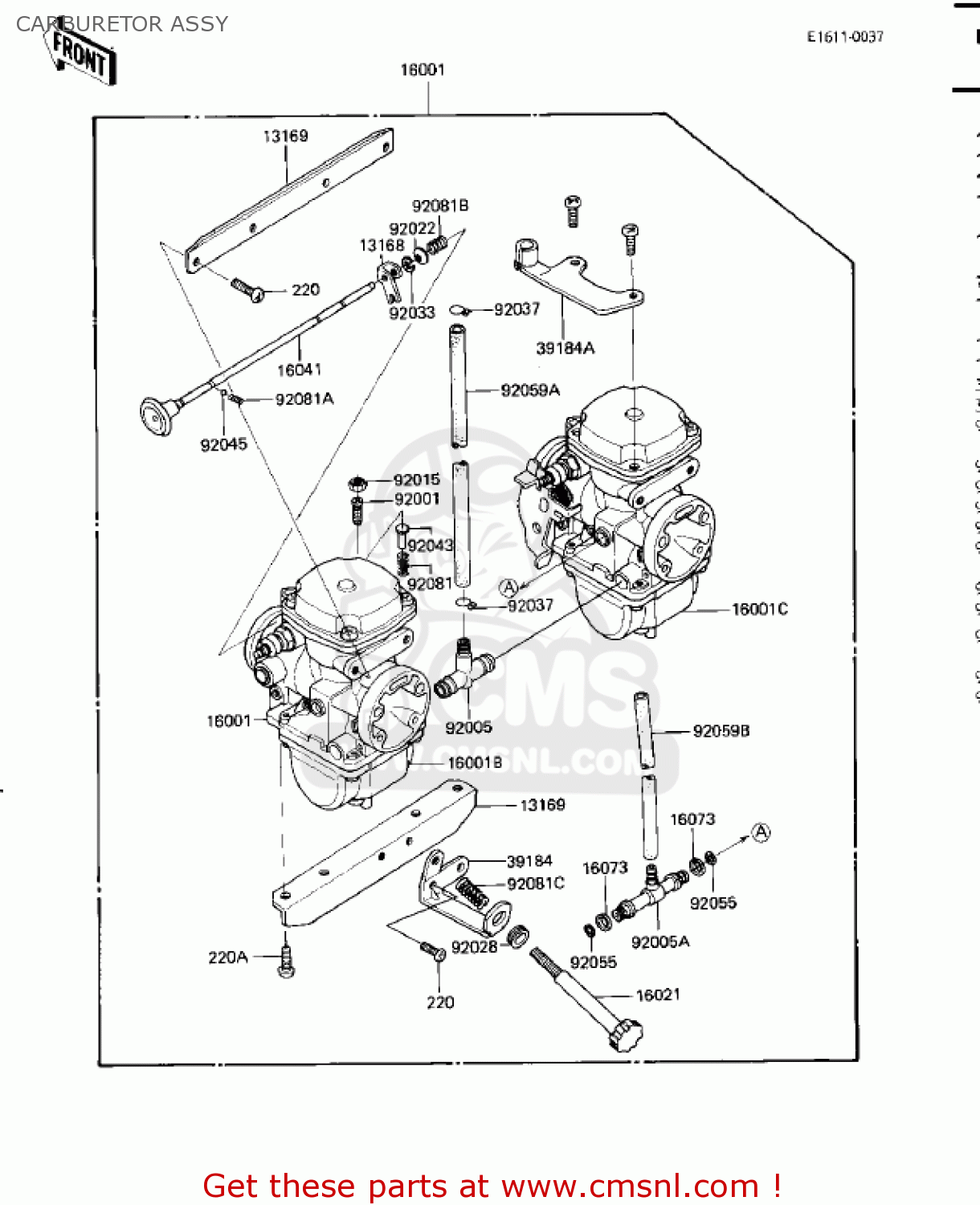

Carburetor assy diagram KZ750M1 CSR TWIN 1982 USA / MPH
CARBURETOR ASSY KZ750M1 CSR TWIN 1982 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
13168
131681091
ref: 13168
LEVER,CHOKE
€ 6.00
13169
131691466
ref: 13169
PLATE
€ 16.00
13169A
131691467
ref: 13169A
PLATE
€ 26.50
16001
160011471
ref: 16001
CARBURETOR
€ 455.00
16001B
160011473
ref: 16001B
CARBURETOR,LH
€ 217.50
16001C
160011474
ref: 16001C
CARBURETOR,RH
€ 270.50
16021
160211035
ref: 16021
SCREW-THROTTLE STOP
€ 16.50
16041
160411025
ref: 16041
SHAFT-CARBURETOR
€ 53.50
16073
160731013
ref: 16073
INSULATOR
€ 4.50
39184
391841007
ref: 39184
BRACKET-ASSY,IDLING A
€ 20.00
39184A
391841010
ref: 39184A
BRACKET-ASSY
€ 17.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
€ 6.50
92005
920051046
ref: 92005
FITTING
€ 40.00
92005A
920051047
ref: 92005A
FITTING
€ 18.00
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
€ 3.50
92022
920221255
ref: 92022
WASHER,SPRING
€ 3.50
92028
920281071
ref: 92028
BUSHING,IDLING ADJUST
€ 4.50
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
€ 3.50
92037
920371184
ref: 92037
CLAMP,HOSE
€ 1.00
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
€ 3.50
92045
600A0400
ref: 92045
BALL-STEEL,1/8
€ 2.00
92055
92055510
ref: 92055
RING-O
€ 7.50
92059A
920591187
ref: 92059A
TUBE,7.5X12.5X250
€ 30.50
92059B
920591206
ref: 92059B
TUBE,6.5X9.5X500
€ 10.50
92081
920811259
ref: 92081
SPRING,THROTTLE VLV
€ 3.00
92081A
920811260
ref: 92081A
SPRING,FAST IDLE SHFT
€ 3.50
92081B
920811364
ref: 92081B
SPRING,CHOCK SHAFT
€ 3.50
92081C
920811417
ref: 92081C
SPRING
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
