HANDLEBAR
KZ750M1 CSR TWIN 1982 USA / MPH

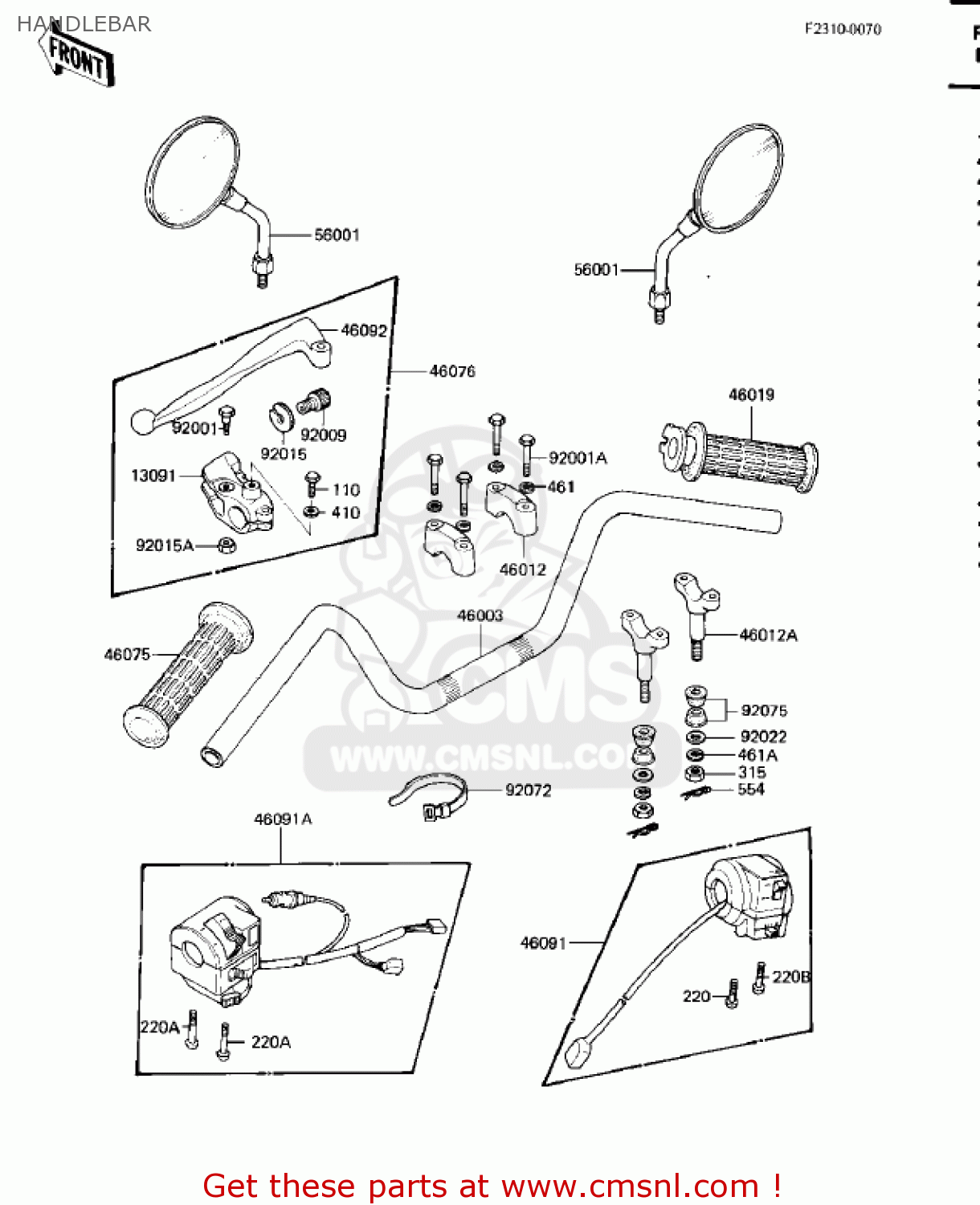

Handlebar diagram KZ750M1 CSR TWIN 1982 USA / MPH
HANDLEBAR KZ750M1 CSR TWIN 1982 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
13091
130911046
ref: 13091
HOLDER,CLUTCH LEVER,F
€ 37.00
46003
460031098
ref: 46003
HANDLE
€ 123.50
46012
46012008
ref: 46012
HOLDER-HANDLE,UPP
€ 23.00
46012A
46012010
ref: 46012A
HOLDER-HANDLE,LWR
€ 20.00
46019
460191015
ref: 46019
GRIP-ASSY,THROTTLE
€ 28.50
46075
460751022
ref: 46075
GRIP,LH
€ 8.50
46076
460761019
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 57.00
46091
460911155
ref: 46091
HOUSING-ASSY CONTROL
€ 114.50
46091A
460911179
ref: 46091A
CONTROLLER HOUSING ASSEMBLY
€ 100.50
46092
460921005
ref: 46092
LEVER-GRIP,CLUTCH
€ 17.50
56001
560011340
ref: 56001
MIRROR-ASSY
€ 61.50
92001
920011075
ref: 92001
BOLT,CLUTCH LEVER FIT
€ 5.00
92001A
920011405
ref: 92001A
BOLT,8X38
€ 10.00
92009
46055003
ref: 92009
SCREW-CABLE ADJUST
€ 11.50
92015
46056005
ref: 92015
NUT-LOCK
€ 6.00
92015A
92019008
ref: 92015A
NUT-LOCK,6MM
€ 3.00
92022
92022196
ref: 92022
WASHER,10.5X30X2
€ 2.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92075
92075275
ref: 92075
DAMPER,HANDLE
€ 6.00
110
110N0622
ref: 110
BOLT,6X22
€ 2.00
220
220B0530
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0535
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220B0540
ref: 220B
SCREW-PAN-CROS
€ 2.00
315
315B1000
ref: 315
NUT,10MM
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
€ 0.50
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
