STANDS/BRAKE PEDAL ('80-'81 C1/C
KZ550C3 LTD 1982 USA CANADA

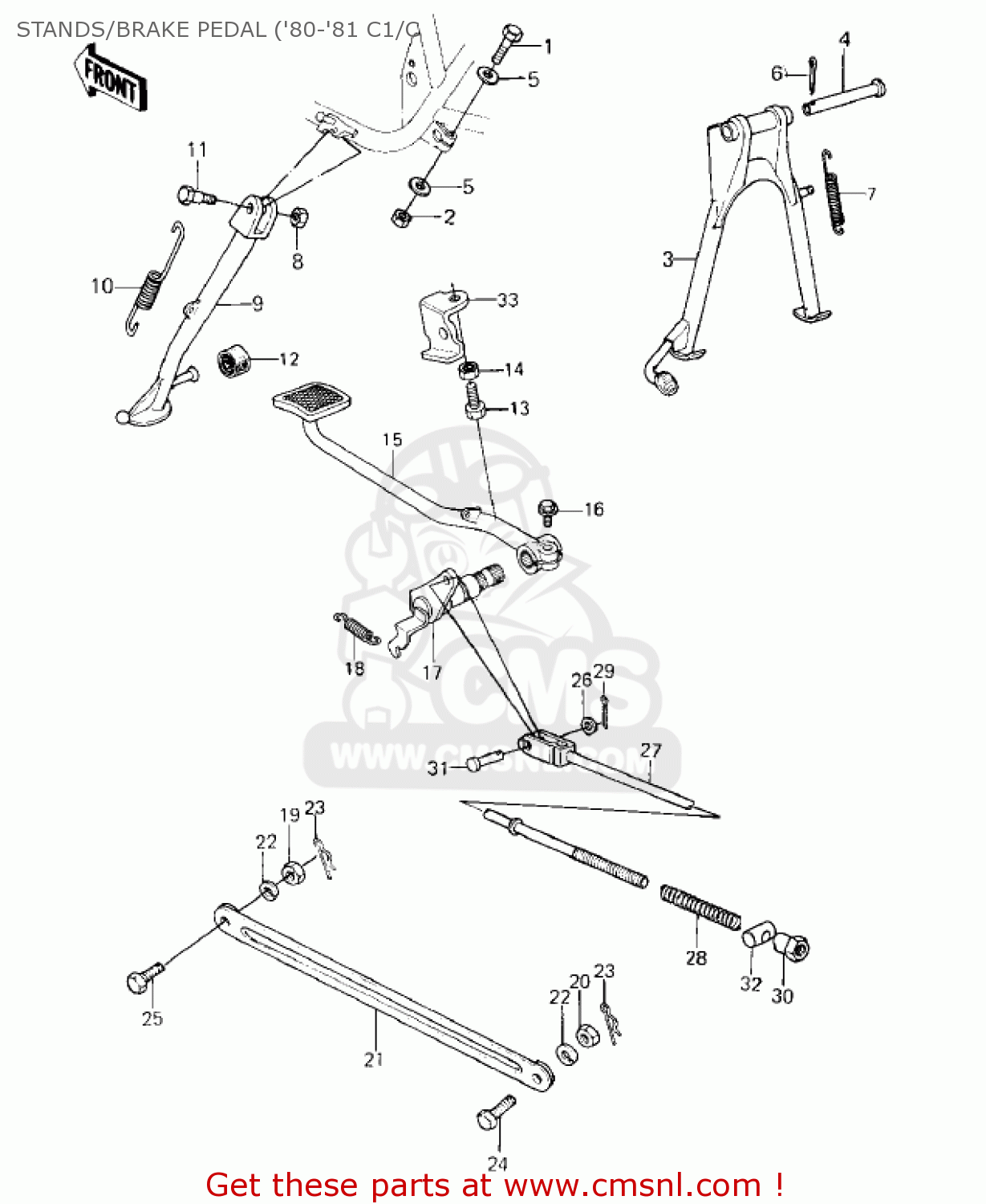

Stands/brake pedal ('80-'81 c1/c diagram KZ550C3 LTD 1982 USA CANADA
STANDS/BRAKE PEDAL ('80-'81 C1/C KZ550C3 LTD 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
114G0840
ref: 1
114G0840
2
317B0800
ref: 2
NUT,8M/M
€ 0.50
3
340111026
ref: 3
STAND-CENTER
€ 111.00
4
34019016
ref: 4
SHAFT-STAND,CNT
€ 12.50
5
410B0800
ref: 5
WASHER-PLAIN-SMALL,8M
€ 0.50
6
550D3030
ref: 6
PIN-COTTER,3.0X30
€ 1.50
7
920811265
ref: 7
SPRING,MAIN STAND
€ 10.00
8
315B1000
ref: 8
NUT,10MM
€ 0.50
9
340241047
ref: 9
STAND,SIDE
€ 44.00
10
34025005
ref: 10
SPRING-SIDE STAND
€ 5.00
11
92003079
ref: 11
BOLT-SIDE STAND
€ 7.50
12
920751205
ref: 12
DAMPER,STAND STOPPER
€ 13.00
13
110B0620
ref: 13
BOLT-HEX HEAD,6X20
€ 1.00
14
311B0600
ref: 14
NUT,6MM
€ 0.50
15
430011048
ref: 15
PEDAL,BRAKE
€ 56.00
16
920011172
ref: 16
BOLD,HEX HEAD,8X25
€ 0.50
17
430041013
ref: 17
SHAFT,BRAKE
€ 26.00
18
920811147
ref: 18
SPRING,BRAKE PEDAL
€ 8.00
19
314B1000
ref: 19
NUT,10MM
€ 0.50
20
315B1000
ref: 20
NUT,10MM
€ 0.50
21
43007027
ref: 21
TORQUE LINK-REAR BRK
€ 18.50
22
461F1000
ref: 22
WASHER-SPRING,10MM
€ 0.50
23
554A0800
ref: 23
PIN-SNAP,8MM
€ 1.00
24
92003034
ref: 24
BOLT-HEX HEAD,10MM
€ 9.00
25
92003096
ref: 25
BOLT-TRQ LINK 10X29
€ 7.00
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
430111014
ref: 27
ROD-BRAKE
€ 17.50
28
43012001
ref: 28
SPRING,BRAKE ROD
€ 3.00
29
550D2015
ref: 29
PIN-COTTER,2.0X15
€ 1.00
30
92015042
ref: 30
NUT-BRAKE ROD ADJUST
€ 4.00
31
92043064
ref: 31
PIN-BRAKE ROD FITTING
€ 4.50
32
92043065
ref: 32
PIN-BRAKE ROD
€ 3.50
33
110341824
ref: 33
BRACKET,BRAKE PEDAL
€ 7.50
