FUEL TANK ('82-'83 C3/C4)
KZ550C3 LTD 1982 USA CANADA

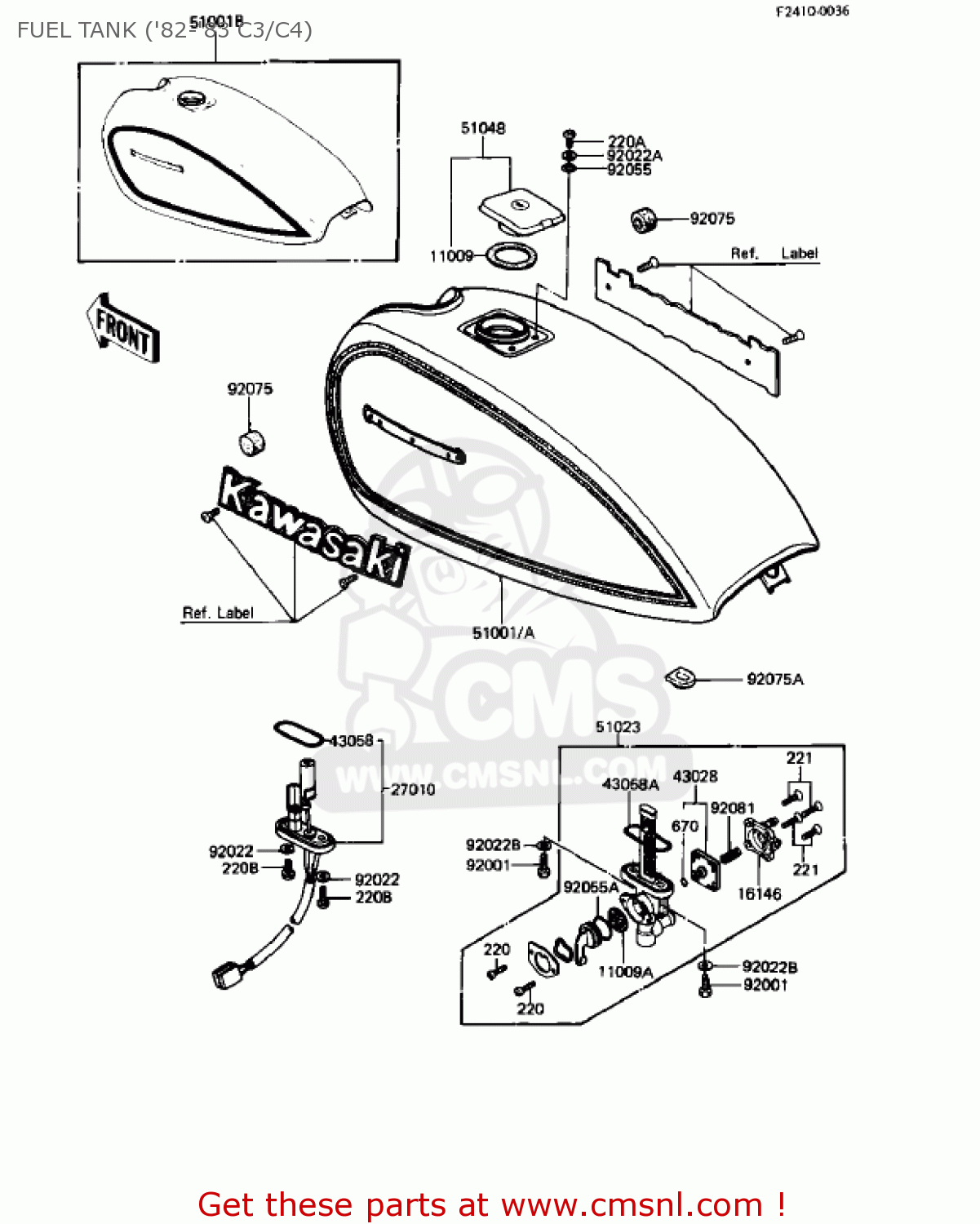

Fuel tank ('82-'83 c3/c4) diagram KZ550C3 LTD 1982 USA CANADA
FUEL TANK ('82-'83 C3/C4) KZ550C3 LTD 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091051
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 7.00
11009A
110091188
ref: 11009A
GASKET,TAP VALVE (NAS)
€ 4.00
16146
161461009
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 12.50
27010
270101055
ref: 27010
SWITCH,FUEL LEVEL
€ 104.50
43028
430281021
ref: 43028
DIAPHRAGM,TAP
€ 19.50
43058
430581004
ref: 43058
O RING,FUEL LEVL SW
€ 5.50
43058A
51039003
ref: 43058A
'O' RING
€ 4.00
51001
5100110628K
ref: 51001
FUEL TANK,SUNDANCE BLUE
€ 593.00
51001A
5100151168G
ref: 51001A
FUEL TANK,EBONY
€ 593.00
51001B
510015205H8
ref: 51001B
FUEL TANK,COMPLETE,EBONY
€ 588.00
51023
510231030
ref: 51023
TAP ASSY,FUEL
€ 128.00
51048
510481018
ref: 51048
CAP-ASSY-TANK
€ 75.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
920221023
ref: 92022
WASHER,5.2X10X1.5
€ 2.50
92022A
920221038
ref: 92022A
WASHER,PLAIN
€ 2.50
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
€ 2.50
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551085
ref: 92055A
'O' RING,FUEL TAP LEV
€ 3.00
92075
92075101
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
92075295
ref: 92075A
DAMPER,FUEL TANK
€ 5.50
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
220B
220B0514
ref: 220B
ACREW-PAN HEAD,5X14
€ 2.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
