HANDLEBAR ('80-'81 C1/C2)
KZ550C3 LTD 1982 USA CANADA

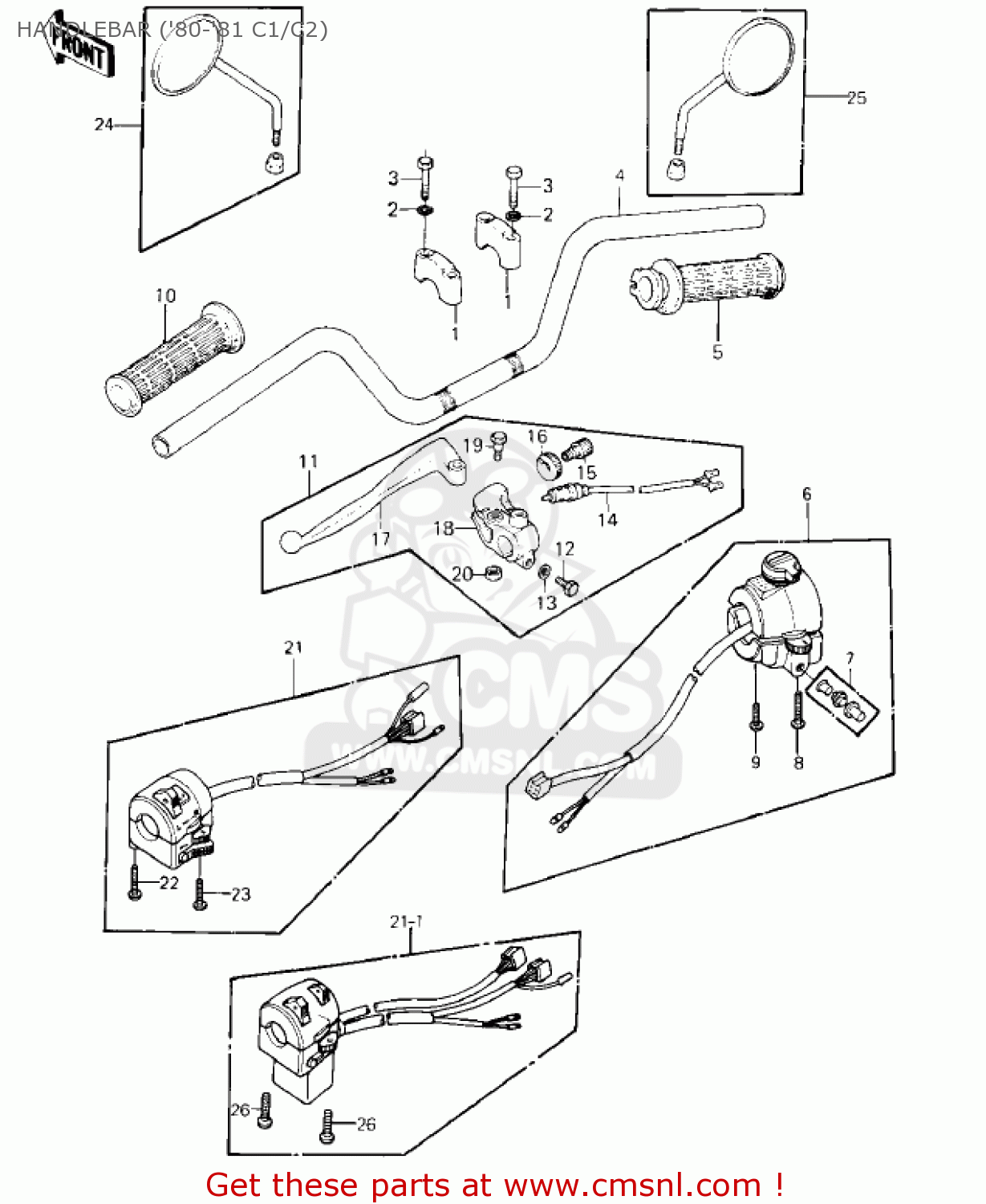

Handlebar ('80-'81 c1/c2) diagram KZ550C3 LTD 1982 USA CANADA
HANDLEBAR ('80-'81 C1/C2) KZ550C3 LTD 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
46012008
ref: 1
HOLDER-HANDLE,UPP
€ 23.00
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
920011405
ref: 3
KZ550-C1
BOLT,8X38
€ 10.00
3
920011405
ref: 3
KZ550-C2
BOLT,8X38
€ 10.00
4
460031062
ref: 4
HANDLE
€ 109.50
5
46019038
ref: 5
GRIP-ASSY,THROTTLE
€ 80.50
6
460911101
ref: 6
CONTROLLER HOUSING ASSEMBLY,RH
€ 90.00
7
270101009
ref: 7
SWITCH ASSY,HORN BUTN
€ 5.50
8
220B0540
ref: 8
SCREW-PAN-CROS
€ 2.00
9
220B0530
ref: 9
SCREW-PAN-CROS
€ 2.00
10
46075028
ref: 10
GRIP,LH
€ 32.00
11
46076054
ref: 11
LEVER-ASSY-GRIP,CLUTC
€ 101.00
12
110N0625
ref: 12
BOLT-HEX HEAD,6X25
€ 3.50
13
410B0600
ref: 13
WASHER-PLAIN-SMALL,6M
€ 0.50
14
27043002
ref: 14
SWITCH,CLUTCH
€ 21.00
15
46055003
ref: 15
SCREW-CABLE ADJUST
€ 11.50
16
46056007
ref: 16
NUT,CABLE ADJUST LOCK
€ 9.00
17
46092023
ref: 17
LEVER-GRIP,CLUTCH
€ 17.00
18
46094019
ref: 18
HOLDER,CLUTCH LEVER
€ 55.00
19
92007047
ref: 19
BOLT,HEX HEAD
€ 6.50
20
92019008
ref: 20
NUT-LOCK,6MM
€ 3.00
21
460911100
ref: 21
KZ550-C1
CONTROLLER HOUSING ASSEMBLY,LH
€ 81.00
21-1
460911135
ref: 21-1
KZ550-C2
CONTROLLER HOUSING ASSEMBLY,LH
€ 125.50
22
220B0535
ref: 22
USE FOR 46091-1100
SCREW-PAN-CROS
€ 2.00
23
220B0530
ref: 23
USE FOR 46091-1100
SCREW-PAN-CROS
€ 2.00
24
560011007
ref: 24
KZ550-C1
MIRROR-ASSY,LH
€ 36.50
24
560011079
ref: 24
KZ550-C2
MIRROR-ASSY,LH
€ 60.50
25
560011008
ref: 25
KZ550-C1
MIRROR-ASSY,RH
€ 36.50
25
560011080
ref: 25
KZ550-C2
MIRROR-ASSY,RH
€ 61.50
26
220B0525
ref: 26
USE FOR 46091-1135
SCREW-PAN-CROS,5X25
€ 2.50
