CYLINDER HEAD ('80-'81 C1/C2)
KZ550C3 LTD 1982 USA CANADA

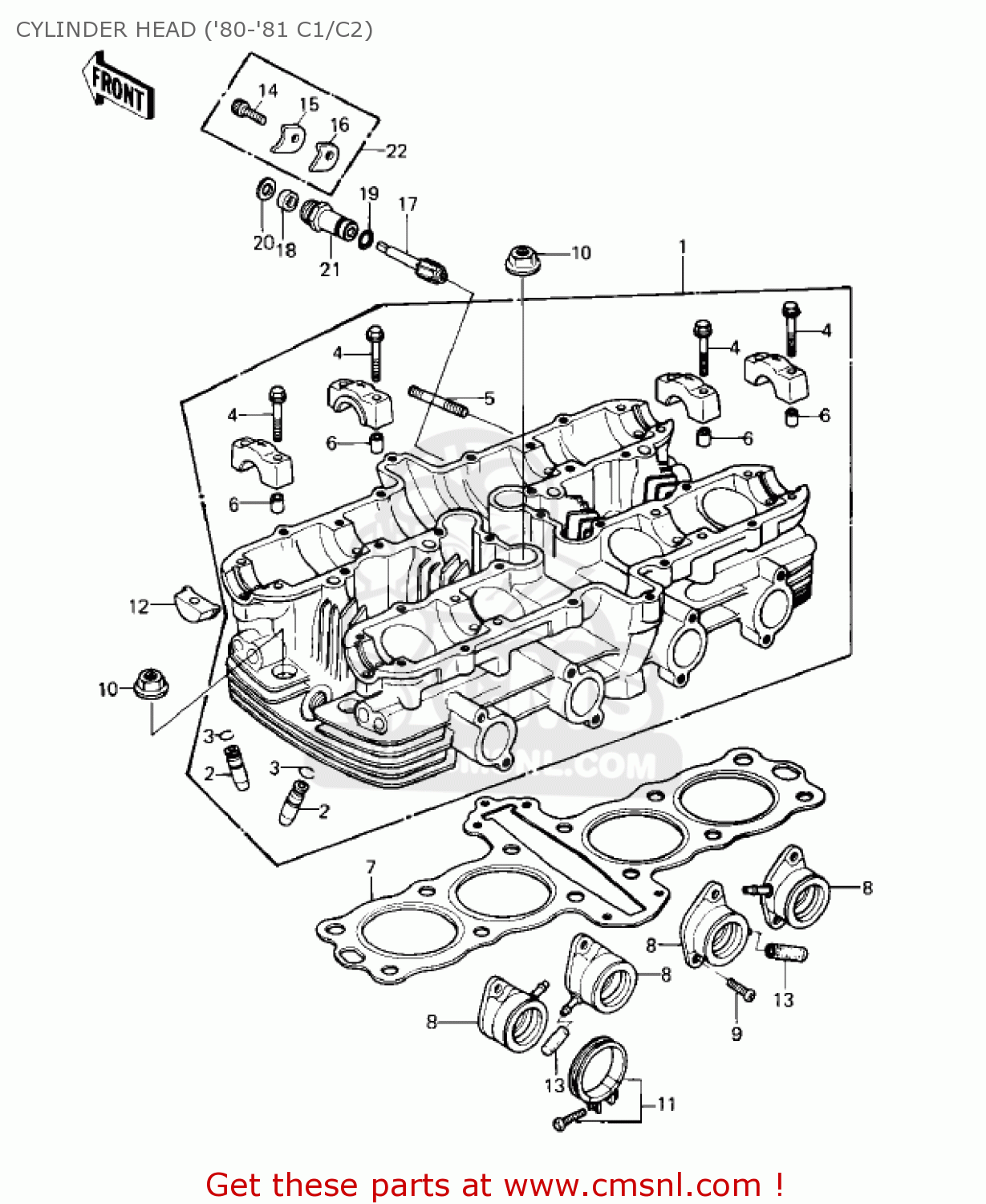

Cylinder head ('80-'81 c1/c2) diagram KZ550C3 LTD 1982 USA CANADA
CYLINDER HEAD ('80-'81 C1/C2) KZ550C3 LTD 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110021063
ref: 1
KZ550-C1
HEAD-ASSY-CYL,SILVER
€ 1,333.00
1
110021063
ref: 1
KZ550-C2
HEAD-ASSY-CYL,SILVER
€ 1,333.00
2
490021005
ref: 2
GUIDE-VALVE
€ 30.00
3
92036023
ref: 3
CIRCLIP,VALVE GUIDE
€ 0.50
4
920011105
ref: 4
BOLT,HEX HEAD,6X38
€ 3.00
5
92004066
ref: 5
STUD, 6X27
€ 3.50
6
92042007
ref: 6
PIN-DOWEL
€ 4.00
7
110041212
ref: 7
GASKET-HEAD (NAS)
€ 72.00
8
160651014
ref: 8
HOLDER-CARBURETOR
€ 41.00
9
220B0614
ref: 9
SCREW-PAN HEAD,6X14
€ 2.00
10
920151143
ref: 10
NUT,8MM
€ 0.50
11
920371129
ref: 11
CLAMP,40MM
€ 6.00
12
920661111
ref: 12
PLUG,CAMSHAFT,11.35X1
€ 8.00
13
92068006
ref: 13
RUBBER PLUG
€ 2.50
13
92068006
ref: 13
USE FOR CANADA MARKE
RUBBER PLUG
€ 2.50
14
120P0614
ref: 14
BOLT,6X14
€ 3.00
15
130911008
ref: 15
HOLDER, TACHOMETER
€ 2.50
16
130911009
ref: 16
HOLDER, TACHOMETER
€ 2.50
17
13223011
ref: 17
GEAR,TACHOMETER, 10T
€ 63.00
18
92050075
ref: 18
OIL SEAL,TACHOMETER
€ 7.50
19
920551149
ref: 19
RING-O,10MM
€ 4.00
20
92065103
ref: 20
GASKET,TACHOMETER GER (NAS)
€ 2.50
21
92087010
ref: 21
GUIDE,TACHOMETER GEAR
€ 16.50
22
130915001
ref: 22
HOLDER ASSY,TACHOMETR
€ 2.50
