FUEL TANK ('80-'81 C1/C2)
KZ550C3 LTD 1982 USA CANADA

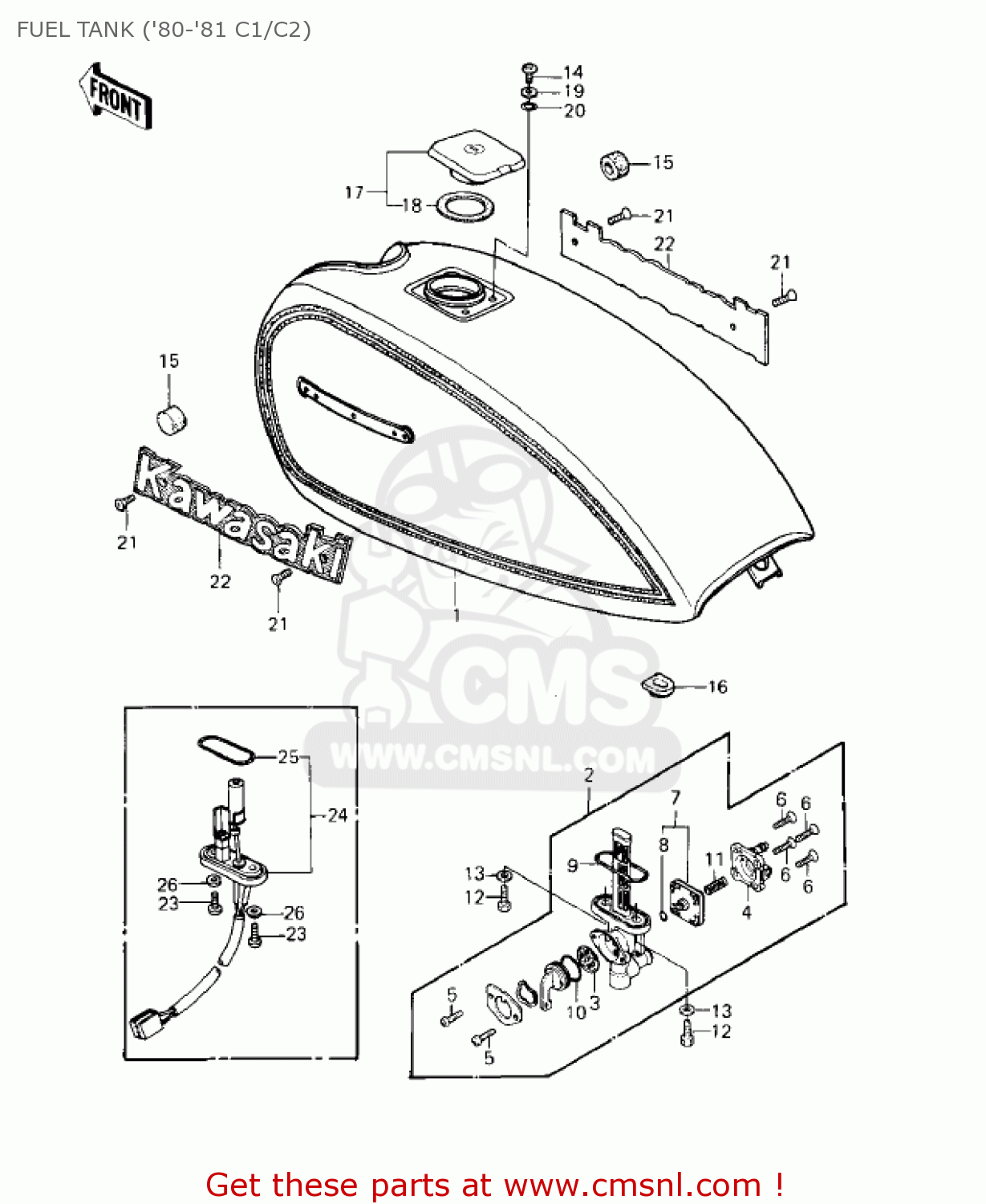

Fuel tank ('80-'81 c1/c2) diagram KZ550C3 LTD 1982 USA CANADA
FUEL TANK ('80-'81 C1/C2) KZ550C3 LTD 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
5100110457Y
ref: 1
KZ550-C1
TANK,FUEL,L.D.RED
€ 610.00
1
5100110458G
ref: 1
KZ550-C1
TANK,FUEL,EBONY
€ 364.50
1
510011062E2
ref: 1
KZ550-C2
TANK-FUEL,L.M.RED
€ 450.50
1
5100110628G
ref: 1
KZ550-C2
TANK-FUEL,EBONY
€ 450.50
2
510231030
ref: 2
TAP ASSY,FUEL
€ 128.00
3
110091188
ref: 3
GASKET,TAP VALVE (NAS)
€ 4.00
4
161461009
ref: 4
COVER-ASSY,TAP DIAPHR
€ 12.50
5
220B0308
ref: 5
SCREW-PAN-CROS
€ 0.50
6
221B0414
ref: 6
SCREW-CSR-CROS,4X14
€ 2.50
7
430281021
ref: 7
DIAPHRAGM,TAP
€ 19.50
8
670B1504
ref: 8
O RING,4MM
€ 2.50
9
51039003
ref: 9
'O' RING
€ 4.00
10
920551085
ref: 10
'O' RING,FUEL TAP LEV
€ 3.00
11
920811240
ref: 11
SPRING,DIAPHRAGM VLV
€ 2.50
12
920011091
ref: 12
BOLT,6X20,FUEL TAP
€ 2.50
13
92022183
ref: 13
WASHER,6.2X11X1.5
€ 2.50
14
220B0510
ref: 14
SCREW-PAN-CROS,5X10
€ 0.50
15
92075101
ref: 15
DAMPER RUBBER-FL TANK
€ 4.00
16
92075295
ref: 16
DAMPER,FUEL TANK
€ 5.50
17
510481018
ref: 17
CAP-ASSY-TANK
€ 75.50
18
110091051
ref: 18
GASKET,FUEL TANK CAP (NAS)
€ 7.00
19
920221038
ref: 19
WASHER,PLAIN
€ 2.50
20
920551023
ref: 20
ORING
€ 2.50
21
221C0306
ref: 21
SCREW-CSR-CROS
€ 0.50
22
560141038
ref: 22
KZ550-C1
EMBLEM,FUEL TANK
€ 36.50
22
560141042
ref: 22
KZ550-C2
EMBLEM,FUEL TANK
€ 32.50
23
220B0514
ref: 23
KZ550-C2
ACREW-PAN HEAD,5X14
€ 2.50
24
270101096
ref: 24
KZ550-C2
SWITCH,FUEL LEVEL
€ 109.50
25
430581004
ref: 25
O RING,FUEL LEVL SW
€ 5.50
26
920221023
ref: 26
KZ550-C2
WASHER,5.2X10X1.5
€ 2.50
