OIL PUMP/OIL FILTER ('80-'81 C1/
KZ550C3 LTD 1982 USA CANADA

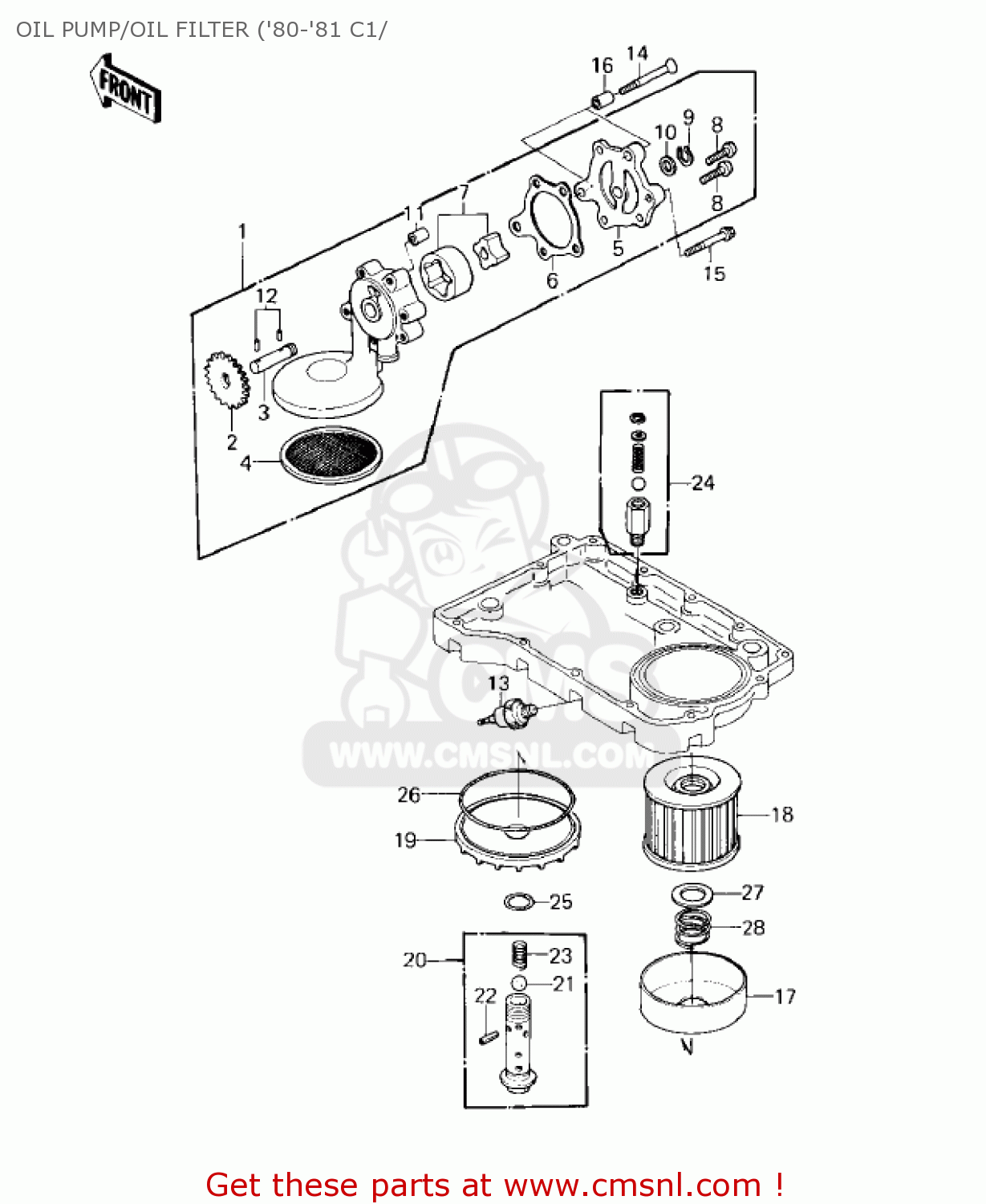

Oil pump/oil filter ('80-'81 c1/ diagram KZ550C3 LTD 1982 USA CANADA
OIL PUMP/OIL FILTER ('80-'81 C1/ KZ550C3 LTD 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16082064
ref: 1
PUMP-ASSY-OIL
€ 165.00
2
16085025
ref: 2
GEAR, OIL PUMP, 57T
€ 31.50
3
16086004
ref: 3
SHAFT,OIL PUMP
€ 17.00
4
16111004
ref: 4
FILTER,OIL PUMP
€ 23.50
5
16142005
ref: 5
COVER-PUMP
€ 24.00
6
16145004
ref: 6
GASKET,OIL PUMP COVER (NAS)
€ 2.50
7
16154003
ref: 7
ROTOR-PUMP
€ 47.50
8
220B0622
ref: 8
SCREW-PAN HEAD,6X22
€ 2.50
9
480J1100
ref: 9
CIRCLIP-TYPE-C,11MM
€ 0.50
10
92022311
ref: 10
WASHER,PLAIN
€ 2.50
11
920431302
ref: 11
PIN,DOWEL,8X10
€ 1.00
12
92042041
ref: 12
PIN,DOWEL
€ 4.50
13
16144006
ref: 13
SWITCH,OIL PRESSURE
€ 28.00
14
221B0655
ref: 14
SCREW,COUNTERSUNK HED
€ 3.00
15
92001165
ref: 15
BOLT,HEX HEAD,6X45
€ 3.00
16
92042050
ref: 16
PIN, DOWEL, 6.2X8X28
€ 2.50
17
131691110
ref: 17
PLATE,OIL FILTER
€ 4.50
18
16099003
ref: 18
FILTER,OIL
€ 6.50
19
16101004
ref: 19
COVER,OIL FILTER
€ 31.00
20
161261108
ref: 20
VALVE,OIL FILTER
€ 29.00
21
600A1200
ref: 21
BALL-STEEL,3/8
€ 0.50
22
92043111
ref: 22
SPRING PIN
€ 4.00
23
92081109
ref: 23
SPRING
€ 7.50
24
161301001
ref: 24
VALVE-ASSY-RELIEF
€ 28.50
25
670B2016
ref: 25
O RING,16MM
€ 1.00
26
671B2590
ref: 26
O RING,90MM
€ 6.50
27
920221012
ref: 27
WASHER,20.5X30X1
€ 3.00
28
920811018
ref: 28
SPRING,OIL FILTER
€ 3.00
