TURN SIGNALS ('80 D1)

KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

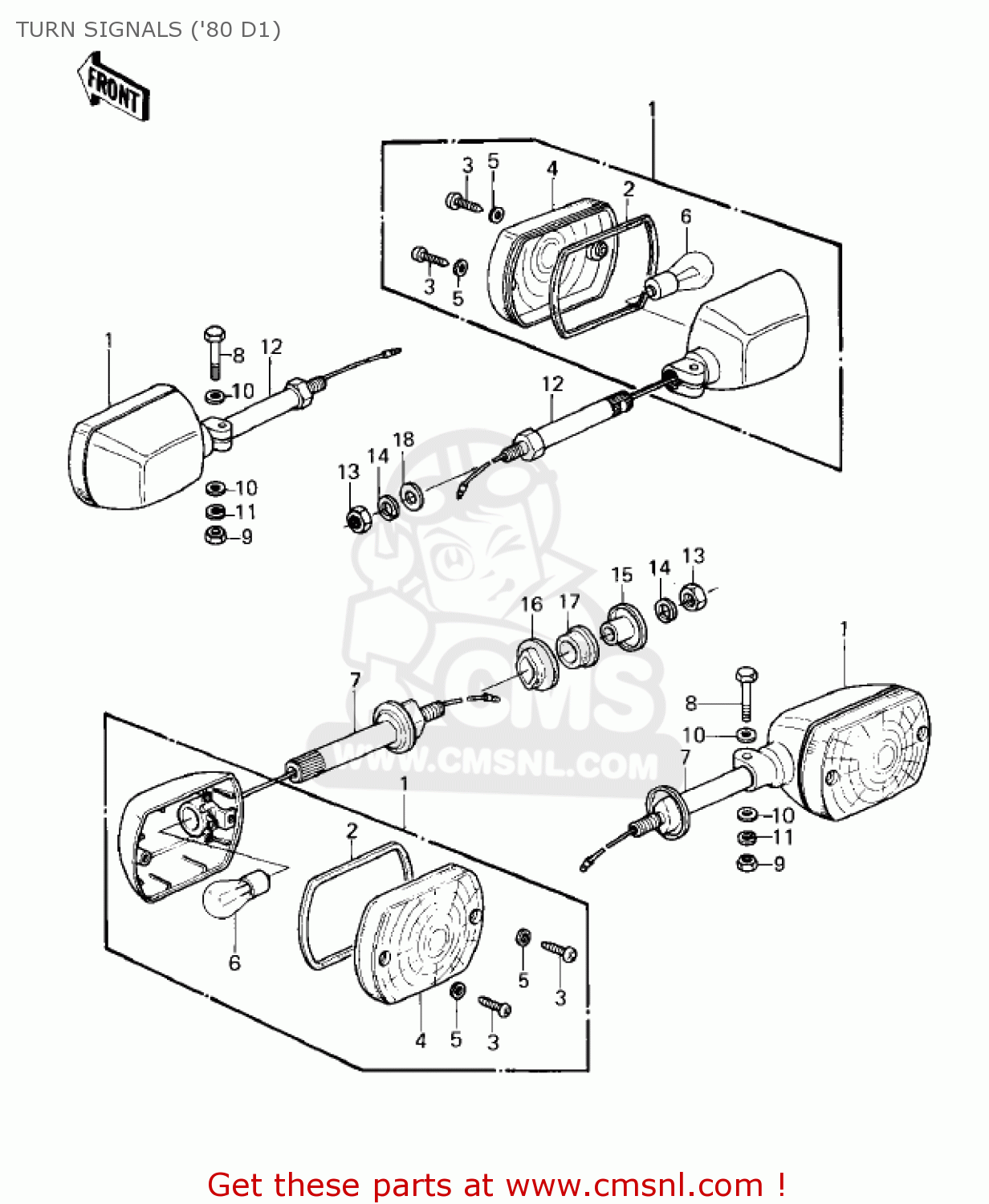

Turn signals ('80 d1) diagram KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

TURN SIGNALS ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

TURN SIGNALS ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

230401018
ref: 1

LAMP ASSY TURN SIGNAL

€ 83.00

2

110091052
ref: 2

GASKET,SIGNAL LAMP (NAS)

€ 2.50

3

220E0412
ref: 3

SCREW-PAN-CROS

€ 2.00

4

230481022
ref: 4

LENS-SIGNAL LAMP,045-

€ 13.50

5

23058002
ref: 5

WASHER,PLAIN,4MM

€ 2.00

6

92069055
ref: 6

BULB 12V 32CP

€ 4.50

7

230511014
ref: 7

BRACKET-SIGNAL LAMP

€ 29.00

8

112G0630
ref: 8

BOLT-UPSET

€ 1.00

9

311B0600
ref: 9

NUT,6MM

€ 0.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

230511032
ref: 12

BRACKET-SIGNAL LAMP

€ 25.00

13

315B1000
ref: 13

NUT,10MM

€ 0.50

14

461F1000
ref: 14

WASHER-SPRING,10MM

€ 0.50

15

92027147
ref: 15

COLLAR

€ 9.00

16

92075128
ref: 16

DAMPER,LAMP

€ 3.50

17

92075158
ref: 17

DAMPER

€ 3.50

18

411D1000
ref: 18

WASHER-PLAIN,10MM

€ 3.00
