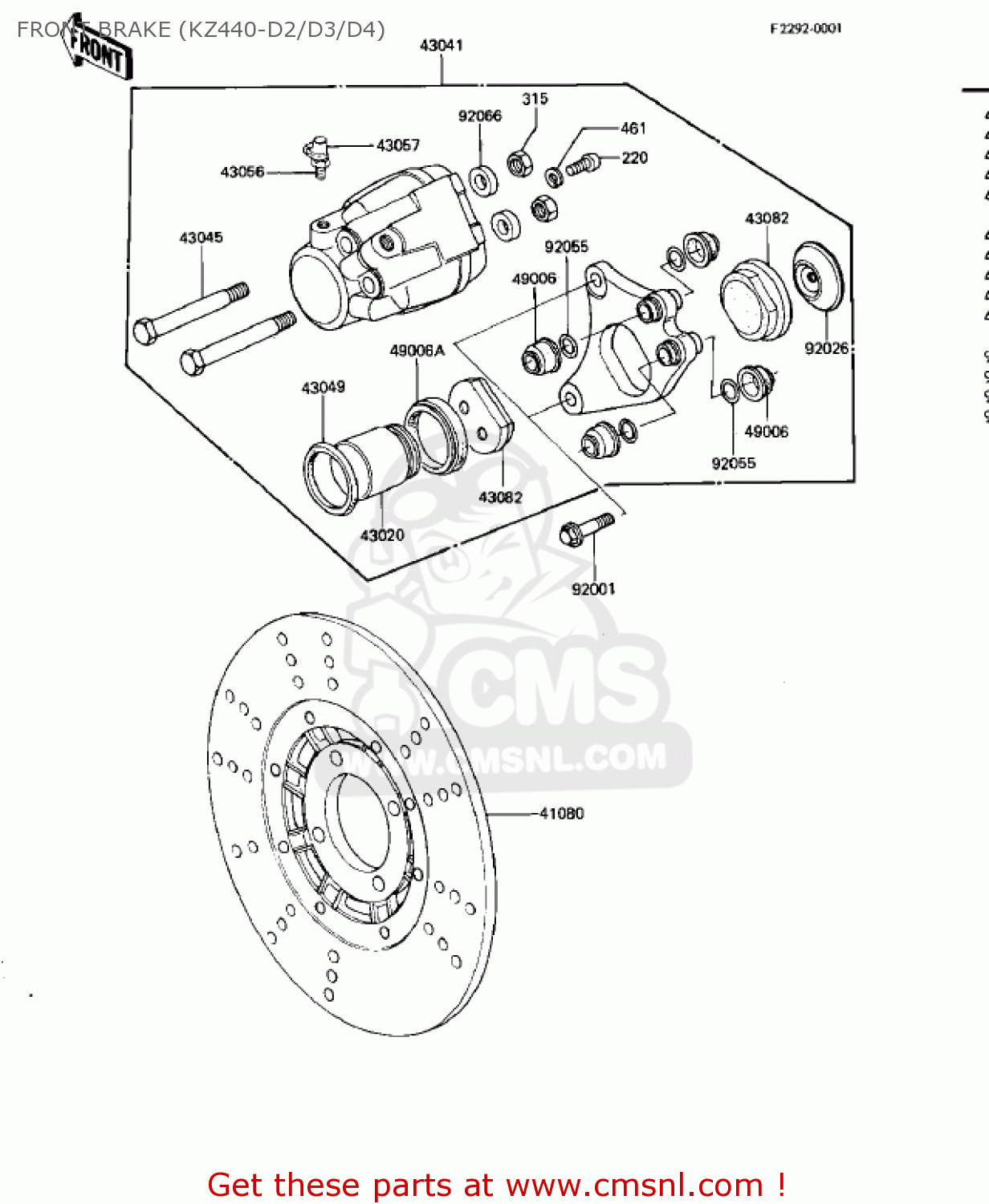

FRONT BRAKE (KZ440-D2/D3/D4)

KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

Front brake (kz440-d2/d3/d4) diagram KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

FRONT BRAKE (KZ440-D2/D3/D4) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

FRONT BRAKE (KZ440-D2/D3/D4) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

41080

410801027
ref: 41080

DISK PLATE,FRONT

€ 415.50

43020

430201012
ref: 43020

PISTON-COMP-BRAKE

€ 65.50

43041

430411024
ref: 43041

CALIPER ASSY,L.H.

€ 429.50

43045

43045006
ref: 43045

BOLT

€ 18.00

43049

43049002A
ref: 43049

PISTON SEAL RING

€ 9.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

43082

430821001
ref: 43082

PAD SET (MCA)

€ 34.00

49006

43052005
ref: 49006

BOOT,SHAFT

€ 7.50

49006A

43054003
ref: 49006A

BOOT,PISTON

€ 10.00

92001

920011299
ref: 92001

BOLT,HEX HEAD,10X44

€ 3.50

92026

43040004
ref: 92026

SPACER

€ 8.00

92055

43053006
ref: 92055

RING-O

€ 7.00

92066

43088002
ref: 92066

PLUG

€ 6.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

315

315B1000
ref: 315

NUT,10MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
