CYLINDER HEAD (KZ440-D2/D3/D4)

KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

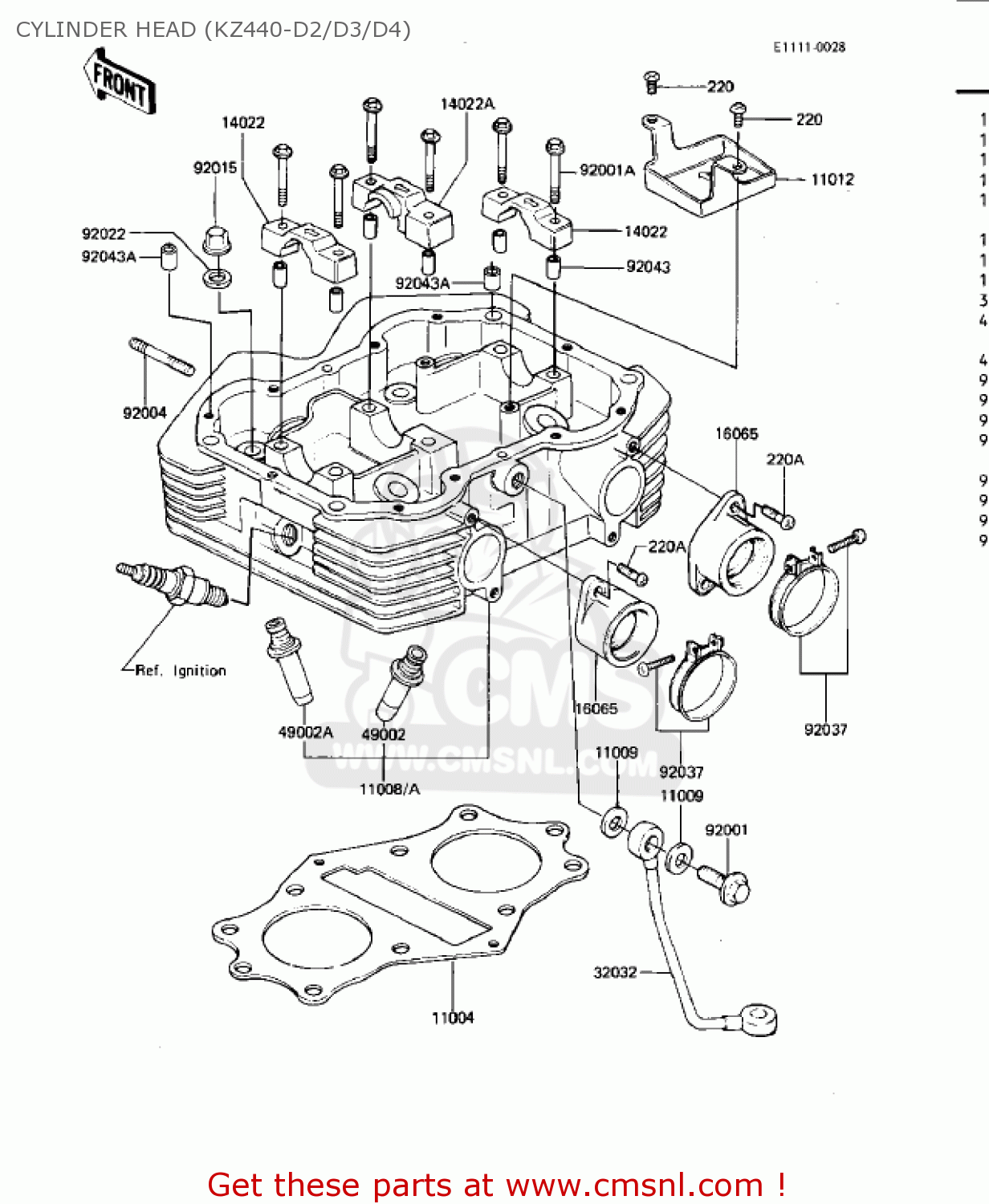

Cylinder head (kz440-d2/d3/d4) diagram KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

CYLINDER HEAD (KZ440-D2/D3/D4) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

CYLINDER HEAD (KZ440-D2/D3/D4) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11004

110041020
ref: 11004

GASKET,CYLINDER HEAD (MCA)

€ 41.50

11008

110081034
ref: 11008

HEAD-COMP-CYLINDER,SI

€ 677.50

11008A

110081034
ref: 11008A

HEAD-COMP-CYLINDER,SI

€ 677.50

11009

110091105
ref: 11009

GASKET,10X14.5X1.5 (NAS)

€ 4.00

11012

110121027
ref: 11012

CAP,CYLINDER HEAD OIL

€ 2.50

14022

140221002
ref: 14022

CAP,BEARING,HEAD,L&R

€ 44.00

14022A

140221003
ref: 14022A

CAP-BEARING,HEAD,CNT

€ 27.00

16065

160651027
ref: 16065

HOLDER-CARBURETOR

€ 37.50

32032

320321084
ref: 32032

PIPE,OIL

€ 26.50

49002

12013003
ref: 49002

GUIDE-VALVE,INTAKE

€ 24.00

49002A

490021010
ref: 49002A

GUIDE-VALVE,EXHAUST

€ 20.50

92001

920011017
ref: 92001

BOLT,OIL PIPE

€ 12.50

92001A

920011105
ref: 92001A

BOLT,HEX HEAD,6X38

€ 3.00

92004

92004049
ref: 92004

STUD,6X46

€ 5.50

92015

92015076
ref: 92015

NUT,FLANGED CAP,10MM

€ 9.00

92022

920221005
ref: 92022

WASHER,10.5X22X1.6

€ 3.00

92037

92037201
ref: 92037

CLAMP,53MM

€ 5.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

920431037
ref: 92043A

PIN,DOWEL,10X8.2X14

€ 0.50

220

220B0610
ref: 220

SCREW-PAN HEAD,6X10

€ 2.00

220A

220B0616
ref: 220A

SCREW-PAN HEAD,6X16

€ 2.50
