CARBURETOR PARTS ('80 D1)

KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

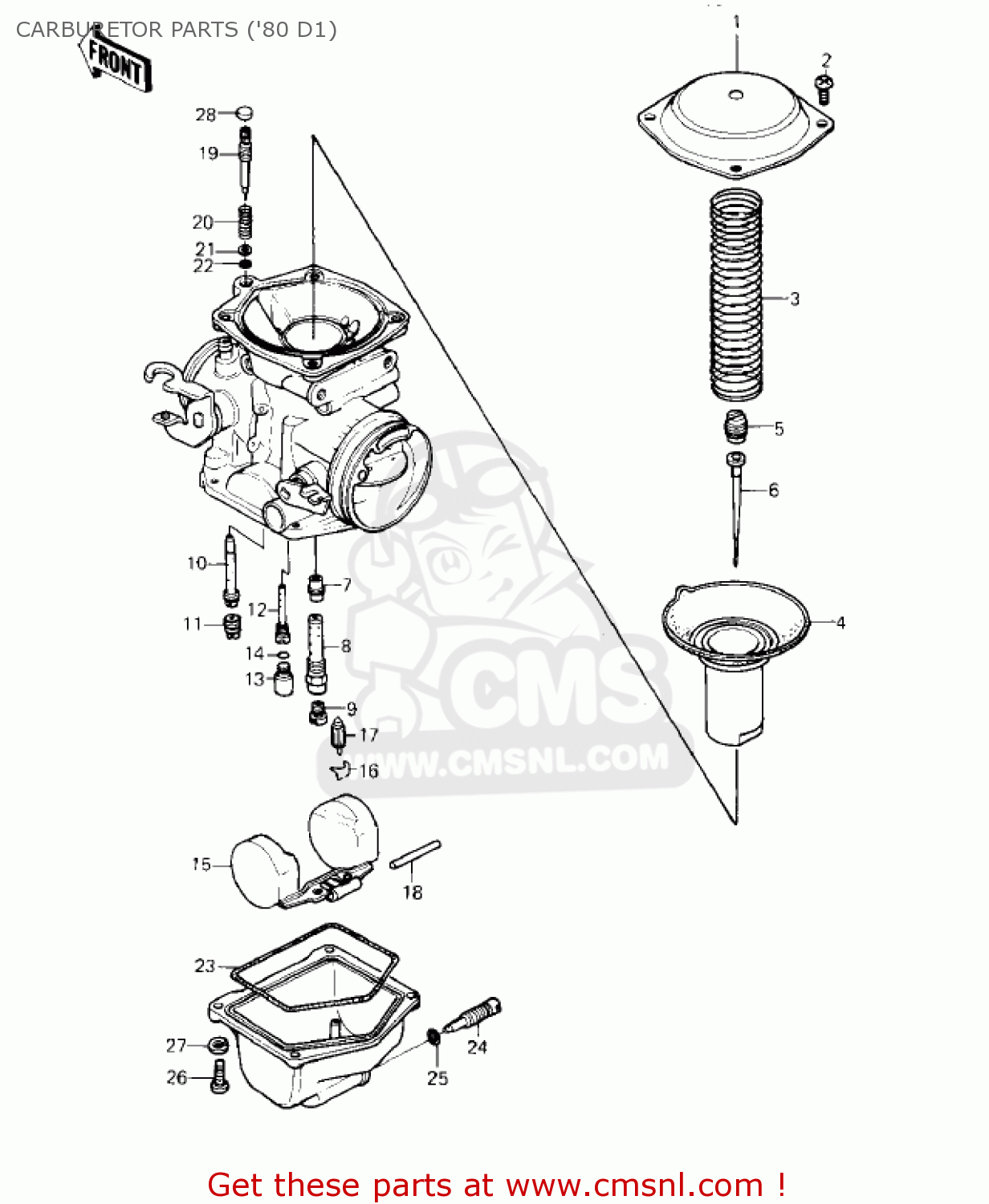

Carburetor parts ('80 d1) diagram KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

CARBURETOR PARTS ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

CARBURETOR PARTS ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

160051012
ref: 1

TOP-CHAMBER,MIXING

€ 24.00

2

220B0408
ref: 2

SCREW-PAN-CROS

€ 0.50

3

920811257
ref: 3

SPRING

€ 21.00

4

161261044
ref: 4

VALVE,VACUUM

€ 322.00

5

160071022
ref: 5

SEAT-SPRING,THROTTLE

€ 8.00

6

160091064
ref: 6

NEEDLE-JET,#N02A

€ 24.50

7

160171059
ref: 7

JET-NEEDLE

€ 33.00

8

130911050
ref: 8

HOLDER,NEEDLE JET,N41

€ 16.00

9

920631024
ref: 9
USA

JET-MAIN,#88

€ 10.00

9

920631023
ref: 9
CANADA

JET-MAIN,#85

€ 9.50

9

920631037
ref: 9
RACING USE ONLY

JET-MAIN,#80

€ 9.00

9

920631044
ref: 9
RACING USE ONLY

JET-MAIN,#82

€ 10.00

9

920631003
ref: 9
RACING USE ONLY

MAIN JET, 2ND, # 90

€ 9.50

9

920631004
ref: 9
RACING USE ONLY

JET-MAIN,#92

€ 10.00

10

920621001
ref: 10

NOZZLE,MAIN

€ 15.50

11

920631070
ref: 11
USA

JET-MAIN,PRI,#62

€ 8.00

11

920631002
ref: 11
CANADA

JET-MAIN,PRI,#70

€ 10.00

12

920641001
ref: 12

JET-PILOT,#35

€ 14.00

13

110121128
ref: 13

CAP,POLYACETAL

€ 13.50

14

920551088
ref: 14

RING-O

€ 12.50

15

160311001
ref: 15

FLOAT

€ 38.50

16

16044007
ref: 16

CLIP, FLOAT VALVE

€ 4.00

17

160301007
ref: 17

FLOAT VALVE ASSY

€ 37.00

18

920431002
ref: 18

PIN,FLOAT

€ 3.50

19

160141011
ref: 19

SCREW-PILOT AIR

€ 9.00

20

920811002
ref: 20

SPRING,PIROT ADJ SCRW

€ 3.50

21

920221003
ref: 21

WASHER,PLAIN

€ 2.50

22

920551002
ref: 22

O RING,PILOT ADJUST

€ 2.50

23

16019024
ref: 23

O RING,FLOAT CHAMBER

€ 15.00

24

920091095
ref: 24

SCREW,DRAIN

€ 10.00

25

920551053
ref: 25

O RING,DRAIN SCREW

€ 3.00

26

220B0412
ref: 26

SCREW-PAN CROS 4X12

€ 0.50

27

461F0400
ref: 27

WASHER-SPRING,4MM

€ 0.50

27

920661051
ref: 27

PLUG,PILOT AIR SCREW,

€ 3.00
