FENDERS ('80 D1)

KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

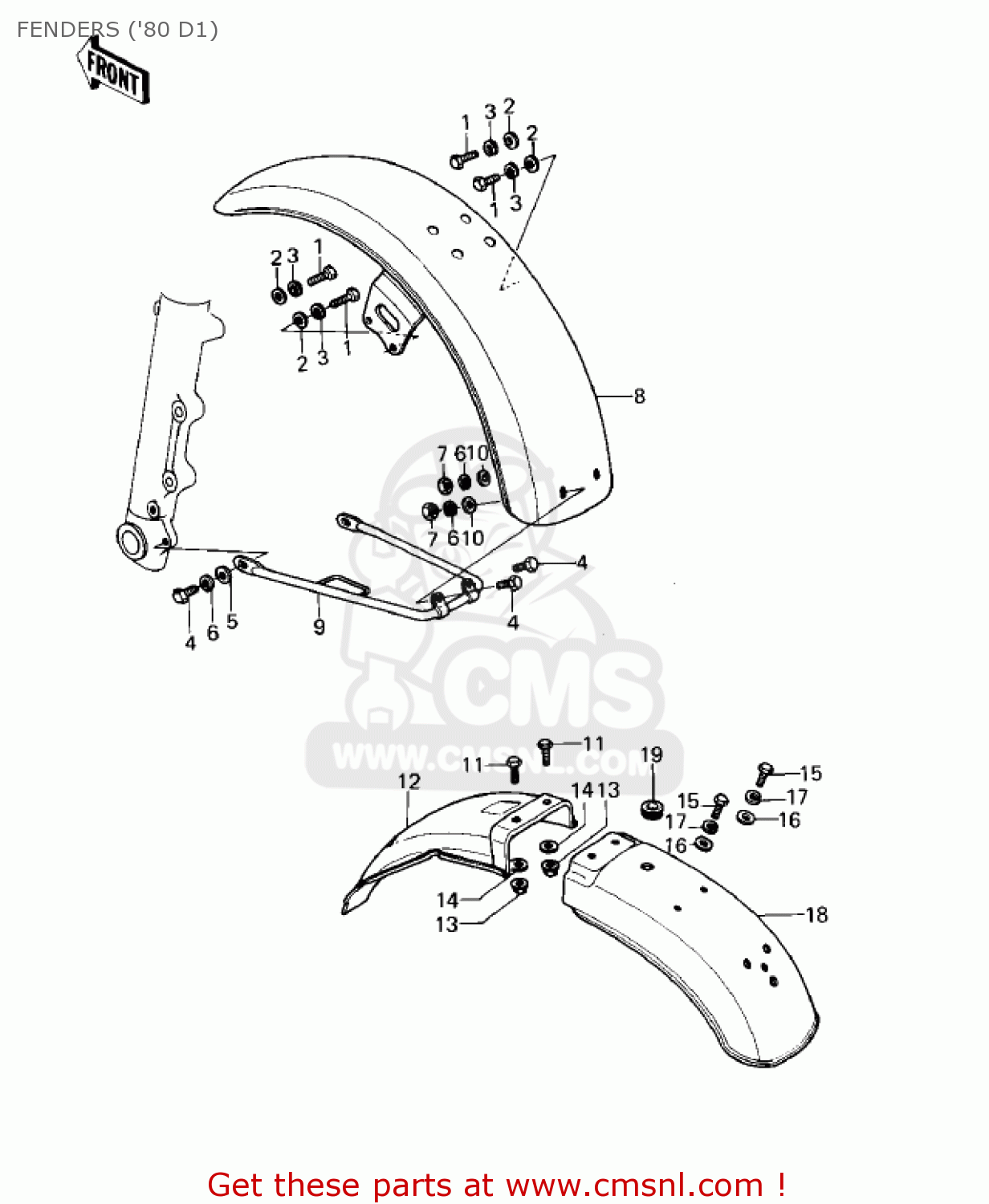

Fenders ('80 d1) diagram KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

FENDERS ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

FENDERS ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

115G0816
ref: 1

BOLT-HEX,HEAD 8X16

€ 0.50

2

410B0800
ref: 2

WASHER-PLAIN-SMALL,8M

€ 0.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

112B0614
ref: 4

BOLT-UPSET 6X14

€ 2.50

5

411B0600
ref: 5

WASHER-PLAIN,6MM

€ 0.50

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

311B0600
ref: 7

NUT,6MM

€ 0.50

8

350015014
ref: 8

FENDER-ASSY-FRONT

€ 196.50

9

350111005
ref: 9

STAY,FENDER,FR

€ 55.50

10

92022024
ref: 10

WASHER,7X16X1.2

€ 2.50

11

112G0616
ref: 11

BOLT UPSET,6X16

€ 1.00

12

350221034
ref: 12

FENDER,REAR,(FRONT)

€ 36.00

13

920151078
ref: 13

NUT,6M/M

€ 1.50

14

92022125
ref: 14

WASHER,6.5X20X1.6

€ 1.00

15

112B0614
ref: 15

BOLT-UPSET 6X14

€ 2.50

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50

17

461F0600
ref: 17

WASHER-SPRING,6MM

€ 0.50

18

350221035
ref: 18

FENDER,REAR, (REAR)

€ 94.50

19

92071019
ref: 19

GROMMET,10MM

€ 2.50
